Front

Hub/Bearing

REMOVAL
1. Raise and support the vehicle.
2. Remove the wheel and tire assembly.
3. Remove the brake caliper, caliper anchor, rotor and ABS wheel speed sensor.
4. Remove the cotter pin, nut retainer and axle hub nut.

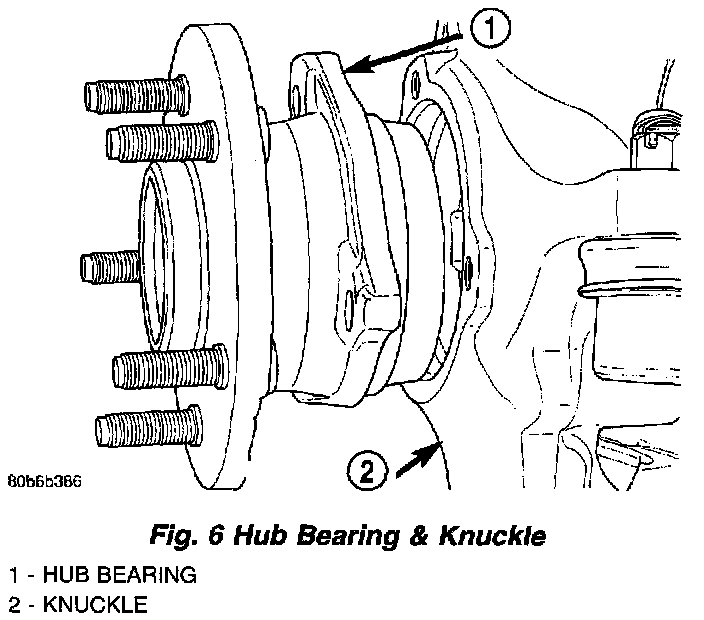

5. Remove the hub bearing mounting bolts from the back of the steering knuckle. Remove hub bearing from the steering knuckle and off the axle shaft.

INSTALLATION
1. Install the hub bearing to the knuckle.
2. Install the hub bearing to knuckle bolts and tighten to 102 Nm (75 ft. lbs.).
3. Install the hub washer and nut. Tighten the hub nut to 237 Nm (175 ft. lbs.). Install the nut retainer and a new cotter pin.
4. Install the brake rotor, caliper anchor, caliper and ABS wheel speed sensor.
5. Install the wheel and tire assembly.
6. Remove the support and lower the vehicle.
