Full Door

DOOR

REMOVAL

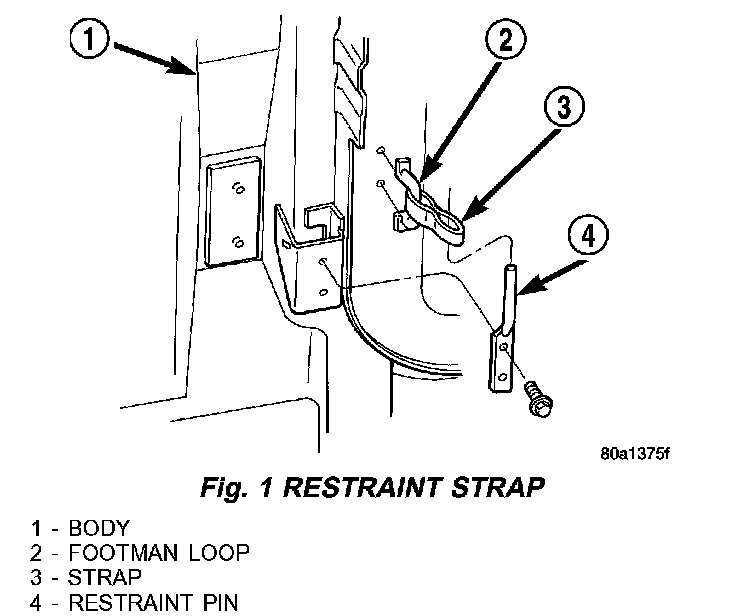

Fig. 1:

1. Open the door.
2. Disconnect the door restraint strap from the pin (Fig. 1).
3. Remove the nuts at the door hinge pivots and lift the door from the body.

INSTALLATION

1. Position the door in the hinge and install the nuts.
2. Connect the door restraint strap at the pin.
