Jeep
>>
2002
>>
Grand Cherokee 2WD Laredo L6-4.0L VIN S
>>
Repair and Diagnosis
>>
Locations
>>
Splice Locations
>>
Figure 11
Figure 11

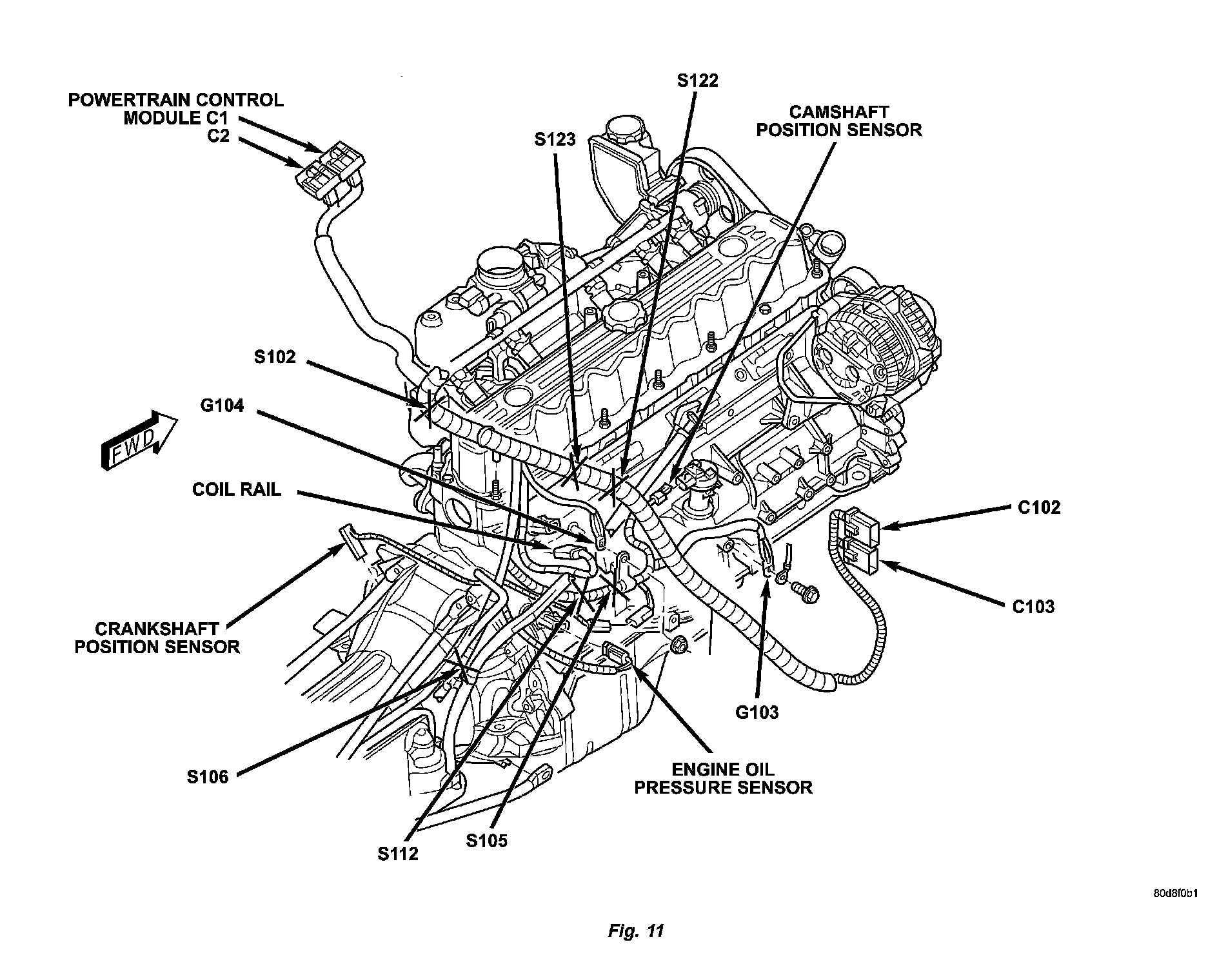

Fig.11 4.0 Liter Engine Right Rear RHD:
