Home >> Jeep >> 2002 >> Grand Cherokee 2WD Laredo L6-4.0L VIN S >> Repair and Diagnosis >> Locations >> Splice Locations >> Figure 12

Figure 12

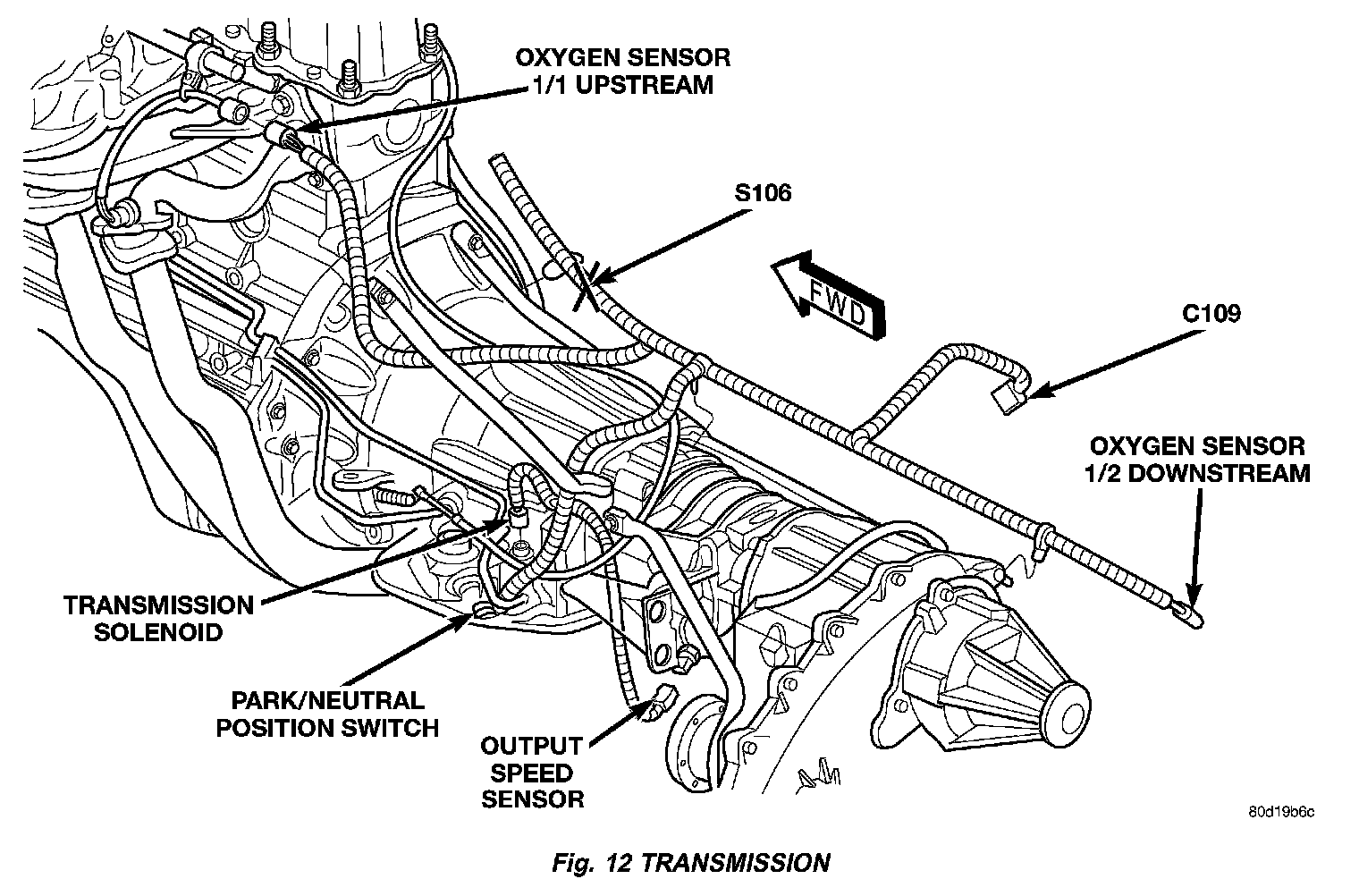

Fig.12 Transmission 4.0 Liter Engine:
