Spare Tire Sensor Battery Low

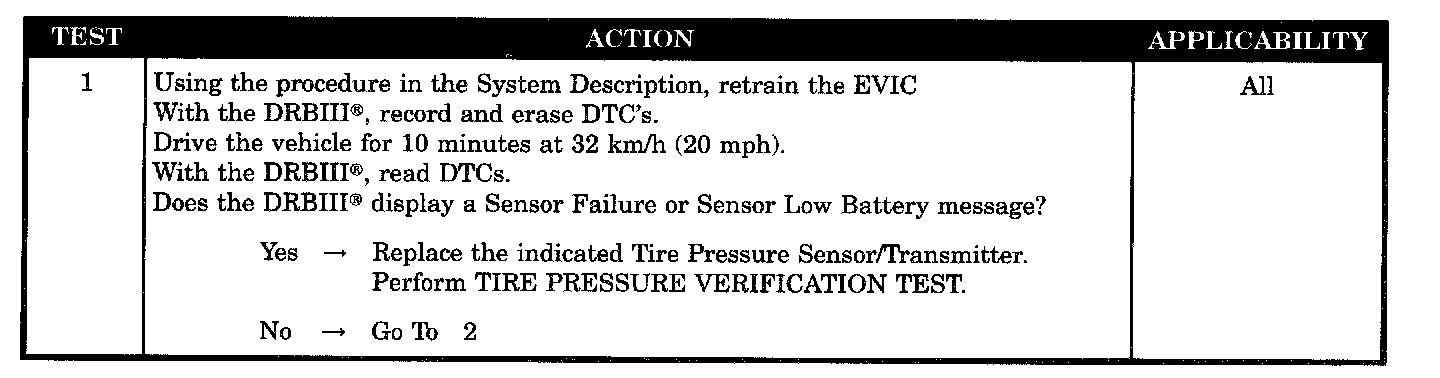

Test 1:

Test 2:

SYMPTOM
SPARE TIRE SENSOR BATTERY LOW

TEST NOTE
This symptom is diagnosed using the test LF SENSOR BATTERY LOW.

WHEN MONITORED
Key ON.

SET CONDITION
When the EVIC detects a low battery condition from the Spare Tire Sensor/Transmitter.
