P0159

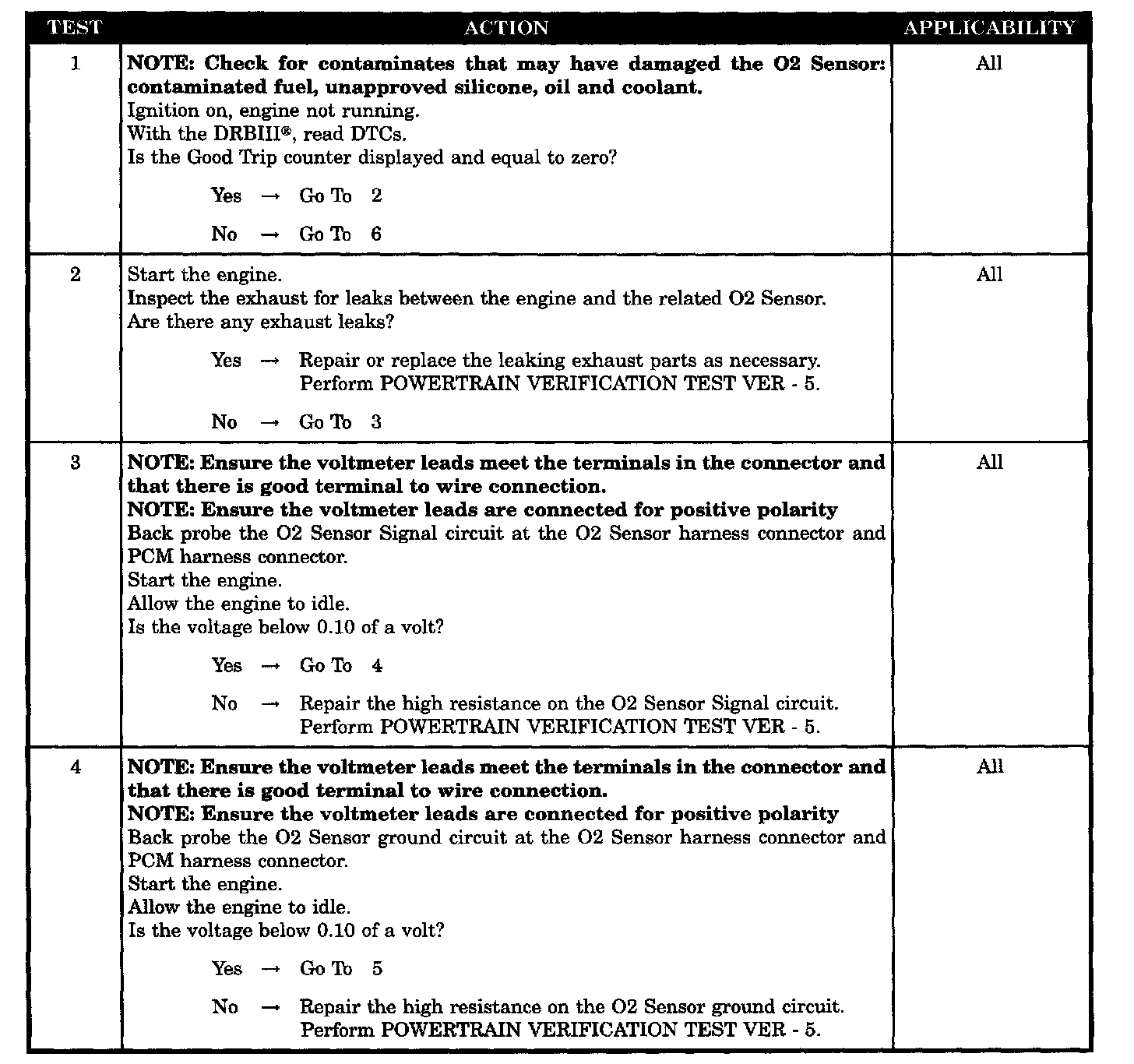

Tests 1 - 4:




Tests 5 - 6:




SYMPTOM
P0159-2/2 O2 SENSOR SLOW RESPONSE

TEST NOTE
This symptom is diagnosed using the test P0133-1/1 o2 SENSOR SLOW RESPONSE.

WHEN MONITORED
Start engine. Allow engine to idle. For 1st part of test, if limits are exceeded, test passes. If not, 2nd part of test runs. AMB/BATT TEMP >44 °F, Baro > 22.13" H2O, battery > 10.5 volts, MAP > 11.79 & < 18.15" H2O, RPM > 1350 & < 2200 and VSS > 50 and < 65.

SET CONDITION
The oxygen sensor signal voltage is switching from below 0.39 of a volt to above 0.58 of a volt and back fewer times than required.

POSSIBLE CAUSES
- Intermittent condition
- Exhaust leak
- O2 sensor signal circuit voltage drop
- O2 sensor ground circuit voltage drop
- O2 sensor
