Sound Proofing / Insulation: Service and Repair

LIFTGATE INSULATOR PAD

REMOVAL
1. Remove the trim panel.

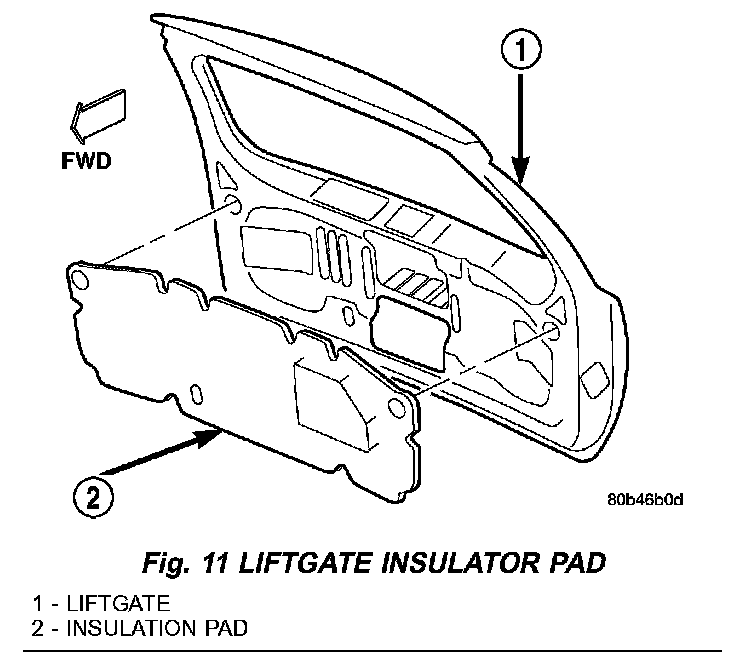

Fig. 11:

2. Separate the liftgate insulator from the liftgate and trim panel (Fig. 11).

INSTALLATION
1. Thoroughly clean the area of any adhesive or insulation material.
2. Install the insulator in the liftgate.
3. Install the trim panel.
