Home >> Jeep >> 2002 >> Grand Cherokee 2WD Limited V8-4.7L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Air Bag

Air Bag

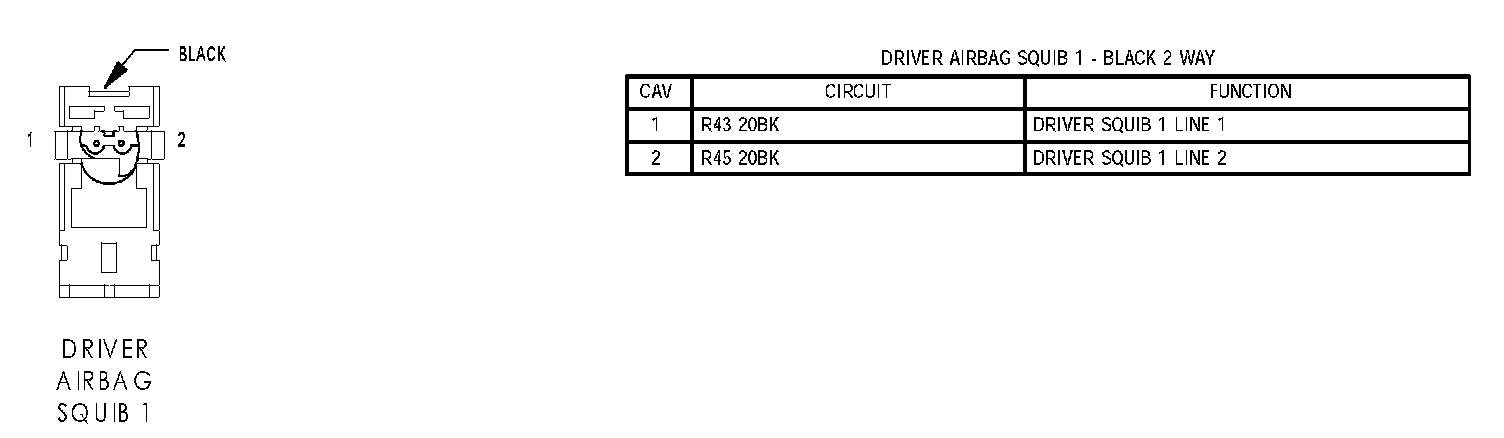

Driver Airbag Squib 1:




Driver Airbag Squib 2:




Driver Curtain Airbag:

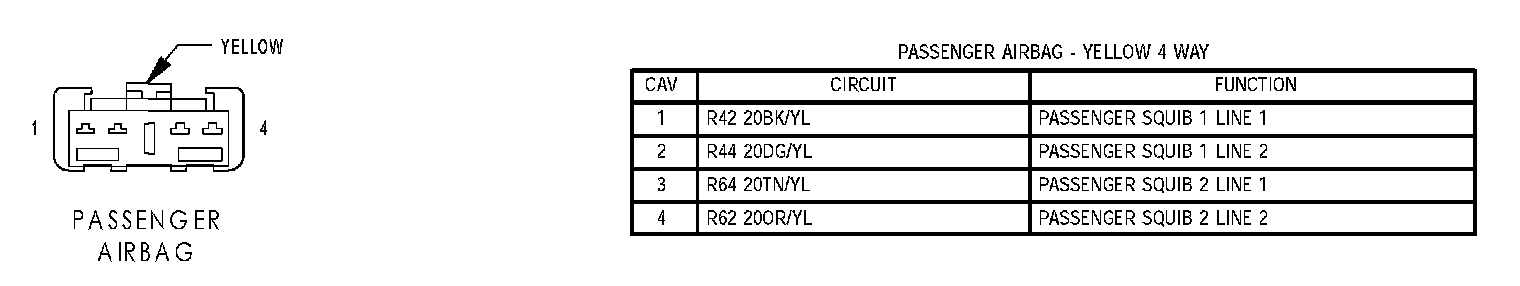

Passenger Airbag:

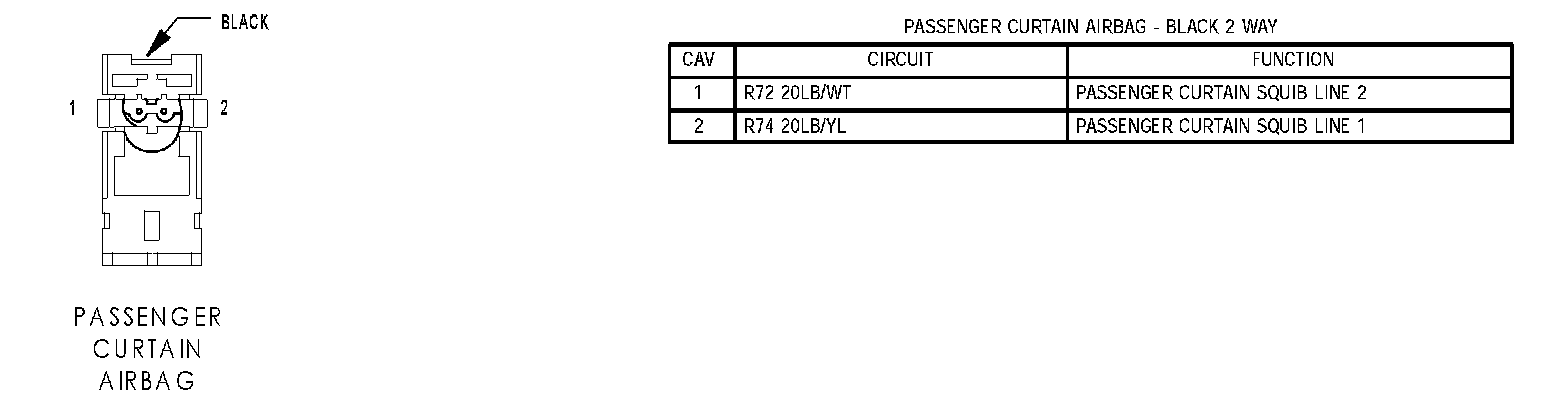

Passenger Curtain Airbag:
