Amplifier, Sound System
Amplifier, Sound System

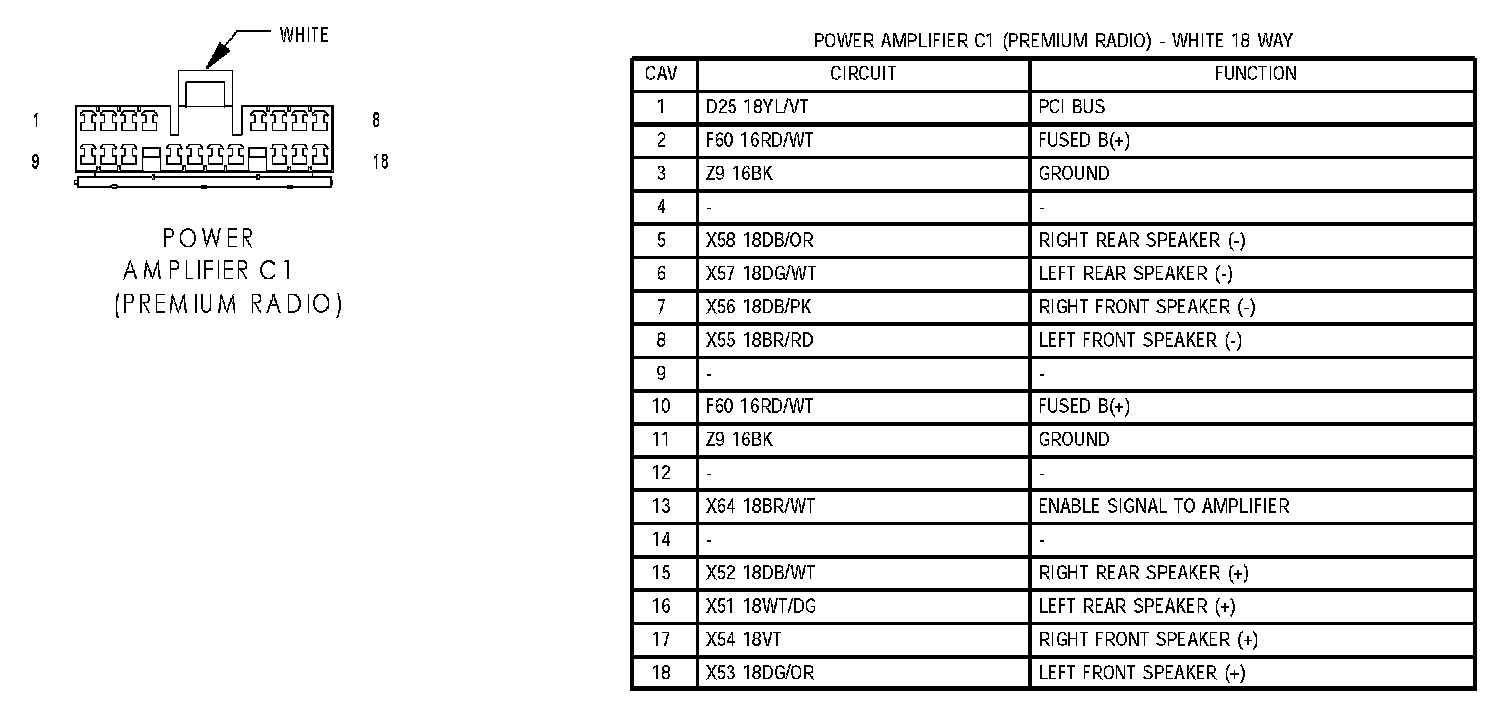

Power Amplifier C1 (Premium Radio):

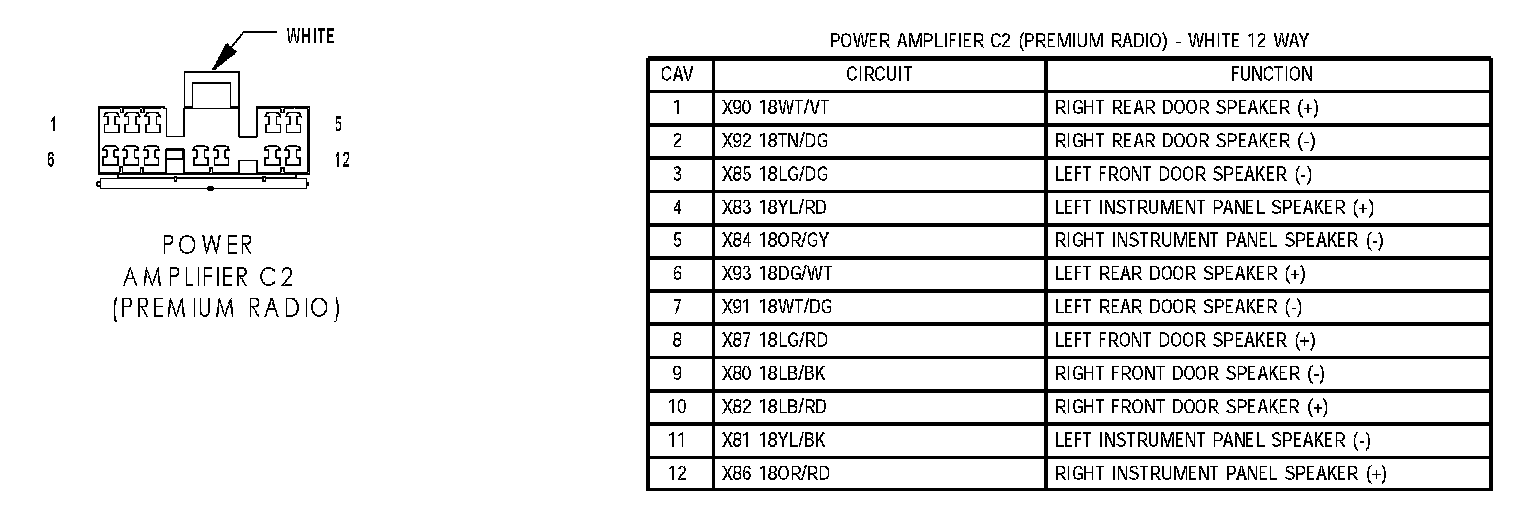

Power Amplifier C2 (Premium Radio):
