Auxiliary Power Outlet
Auxiliary Power Outlet

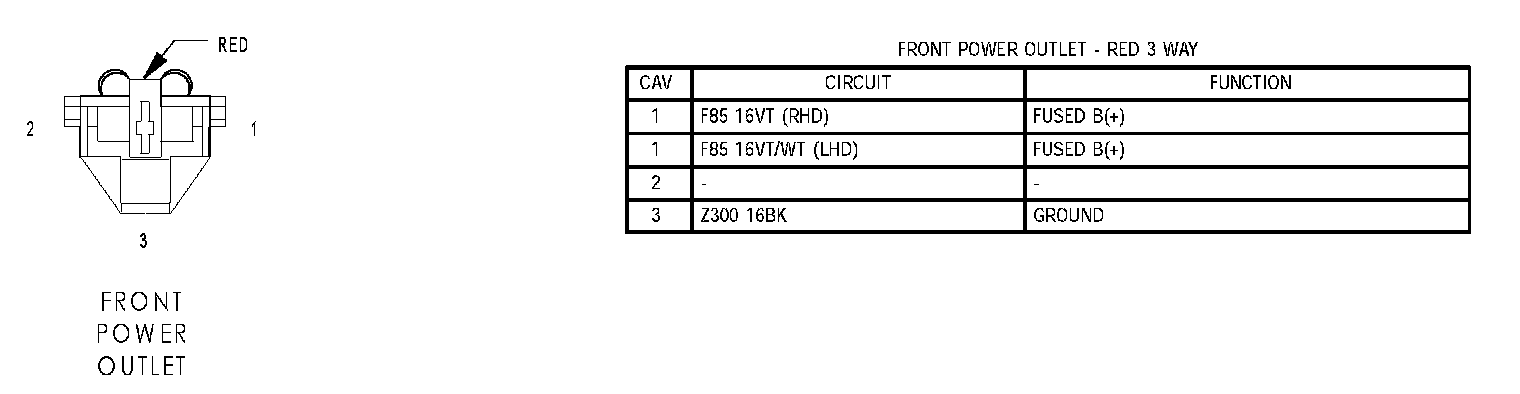

Front Power Outlet:

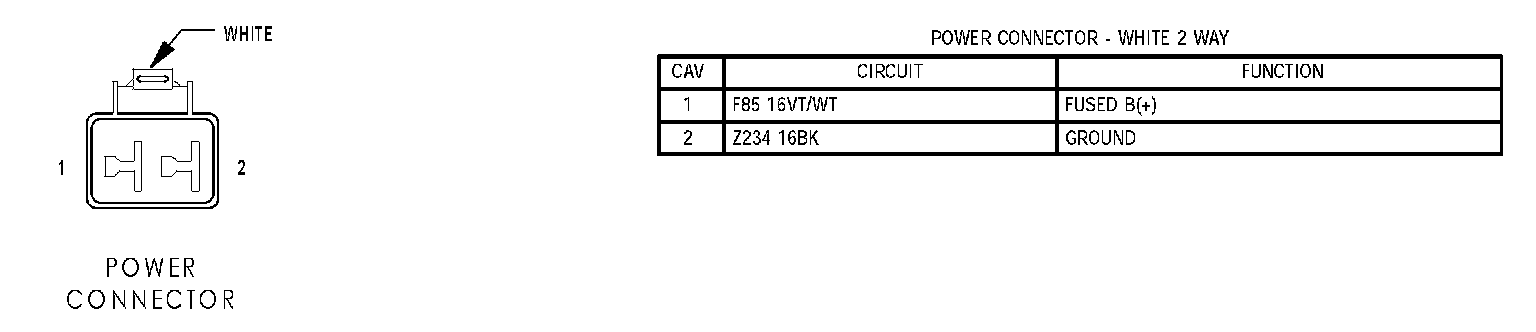

Power Connector:

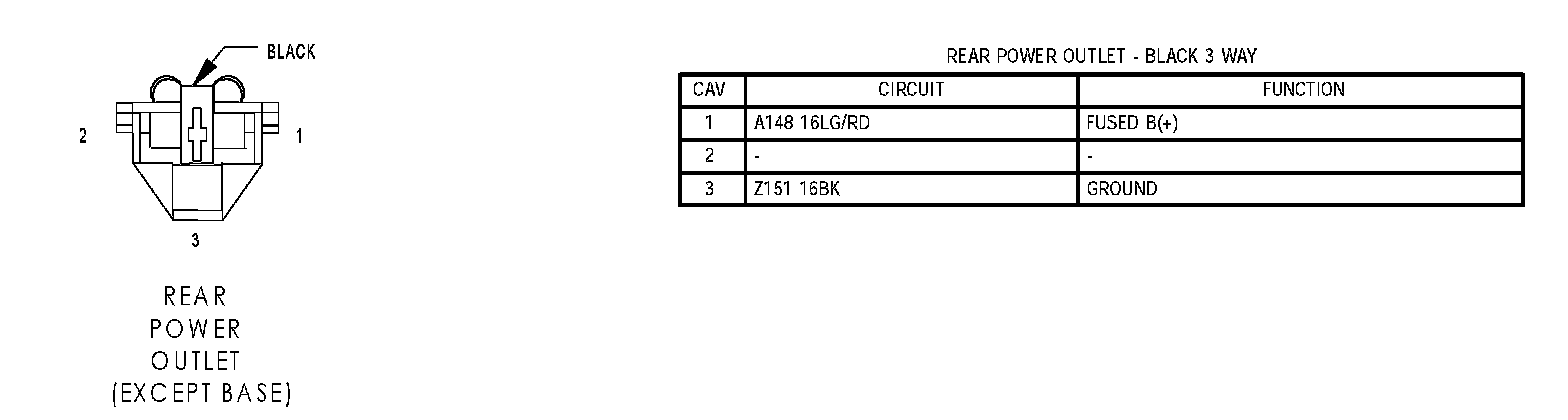

Rear Power Outlet:
