C106
C106

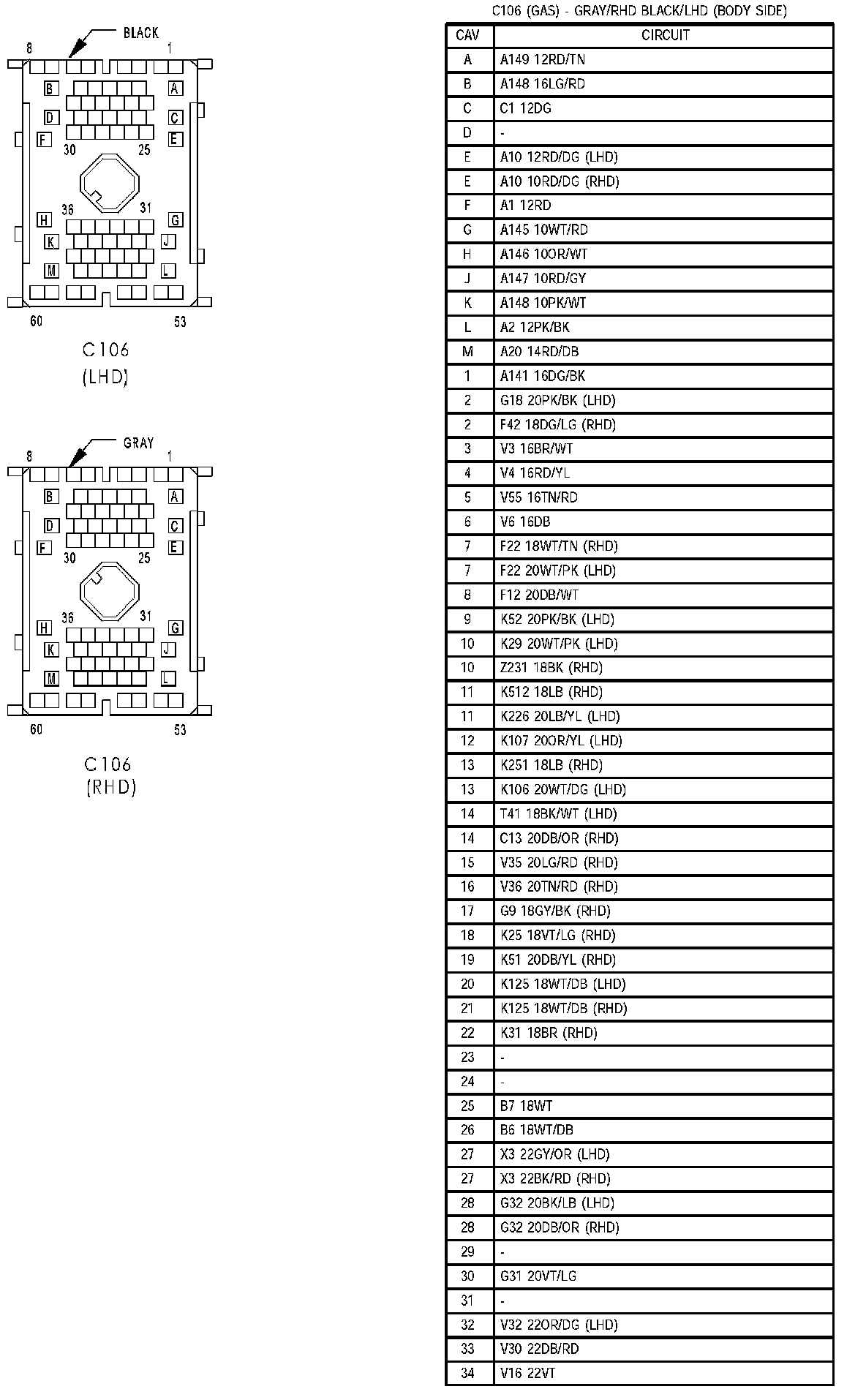

C106 (LHD Gas), C106 (RHD Gas) (Part 1 Of 2):

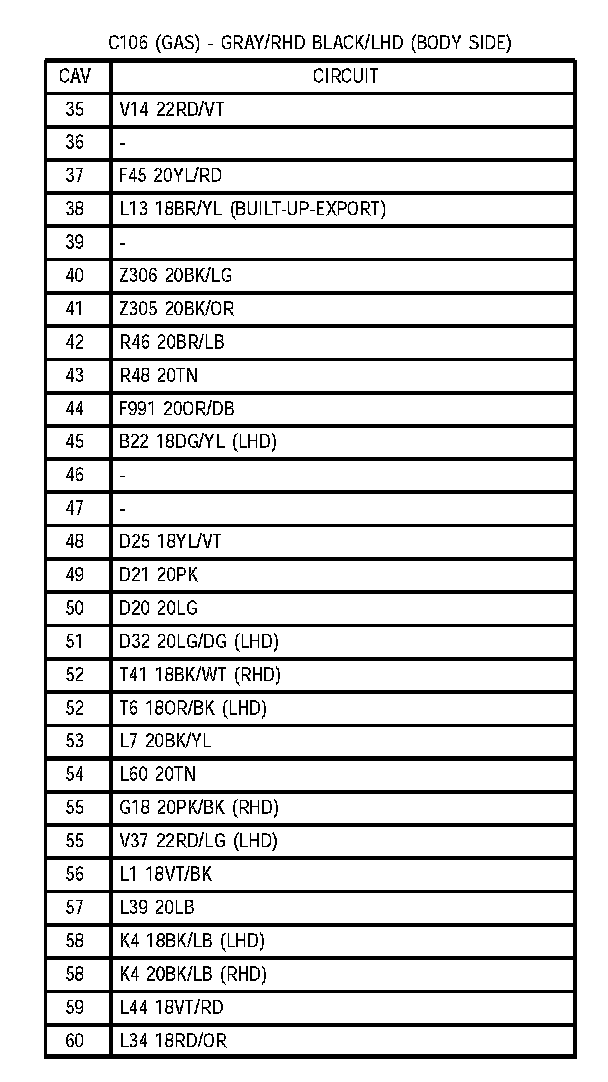

C106 (LHD Gas), C106 (RHD Gas) (Part 2 Of 2):
C106 (LHD), C106 (RHD) (Part 1 Of 2):
C106 (LHD), C106 (RHD) (Part 2 Of 2):
