Grand Cherokee 2WD Limited V8-4.7L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connector Views By Connector Number
>>
C202
C202

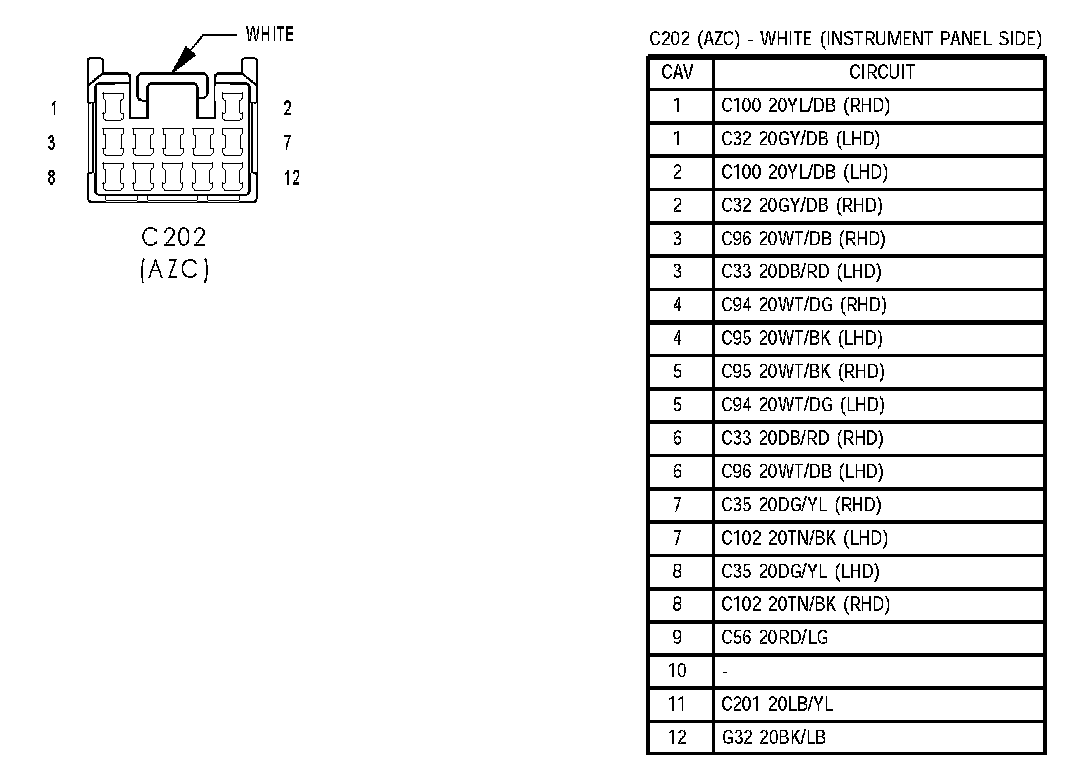

C202 (AZC):

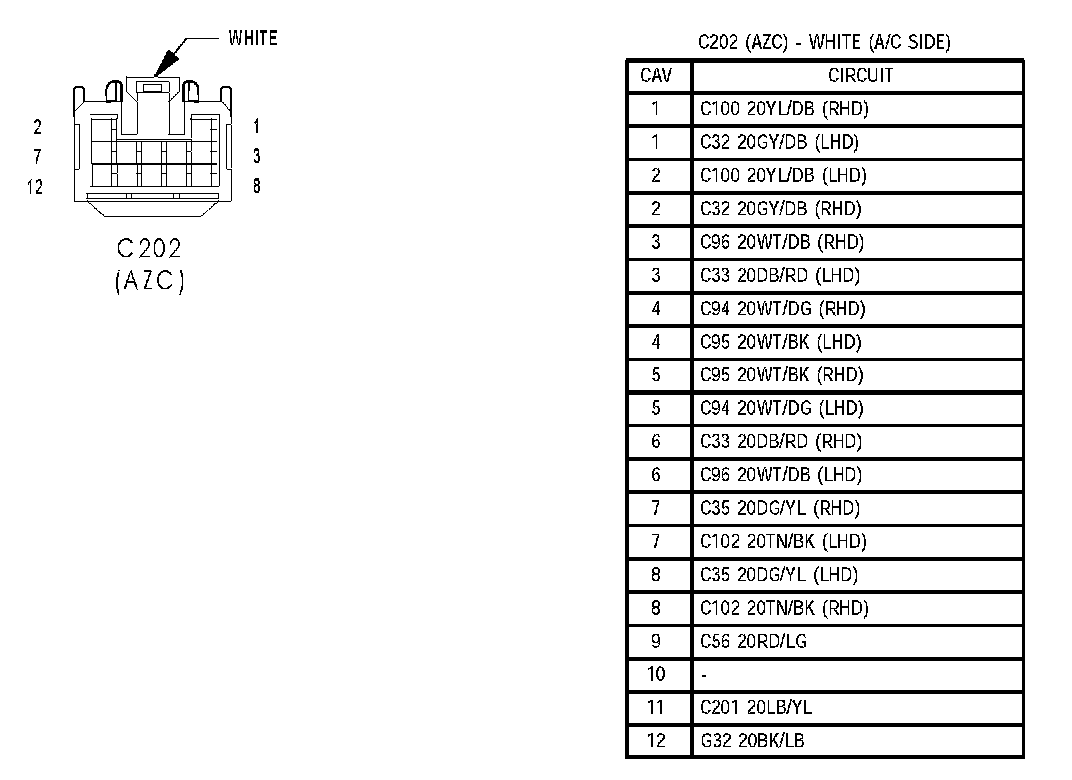

C202 (AZC):

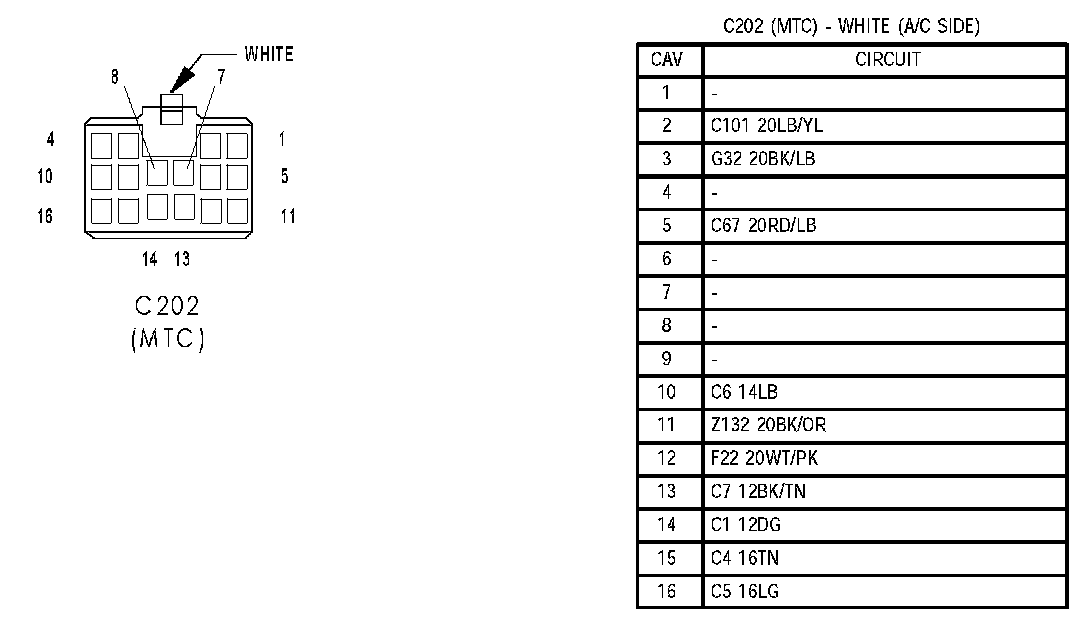

C202 (MTC):

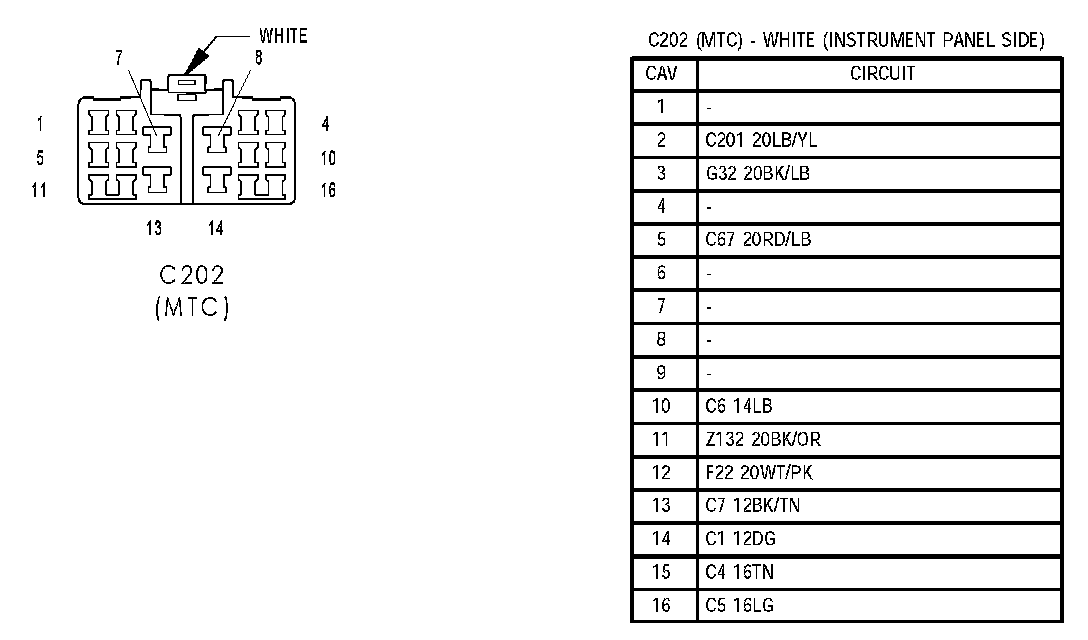

C202 (MTC):
