C300
C300

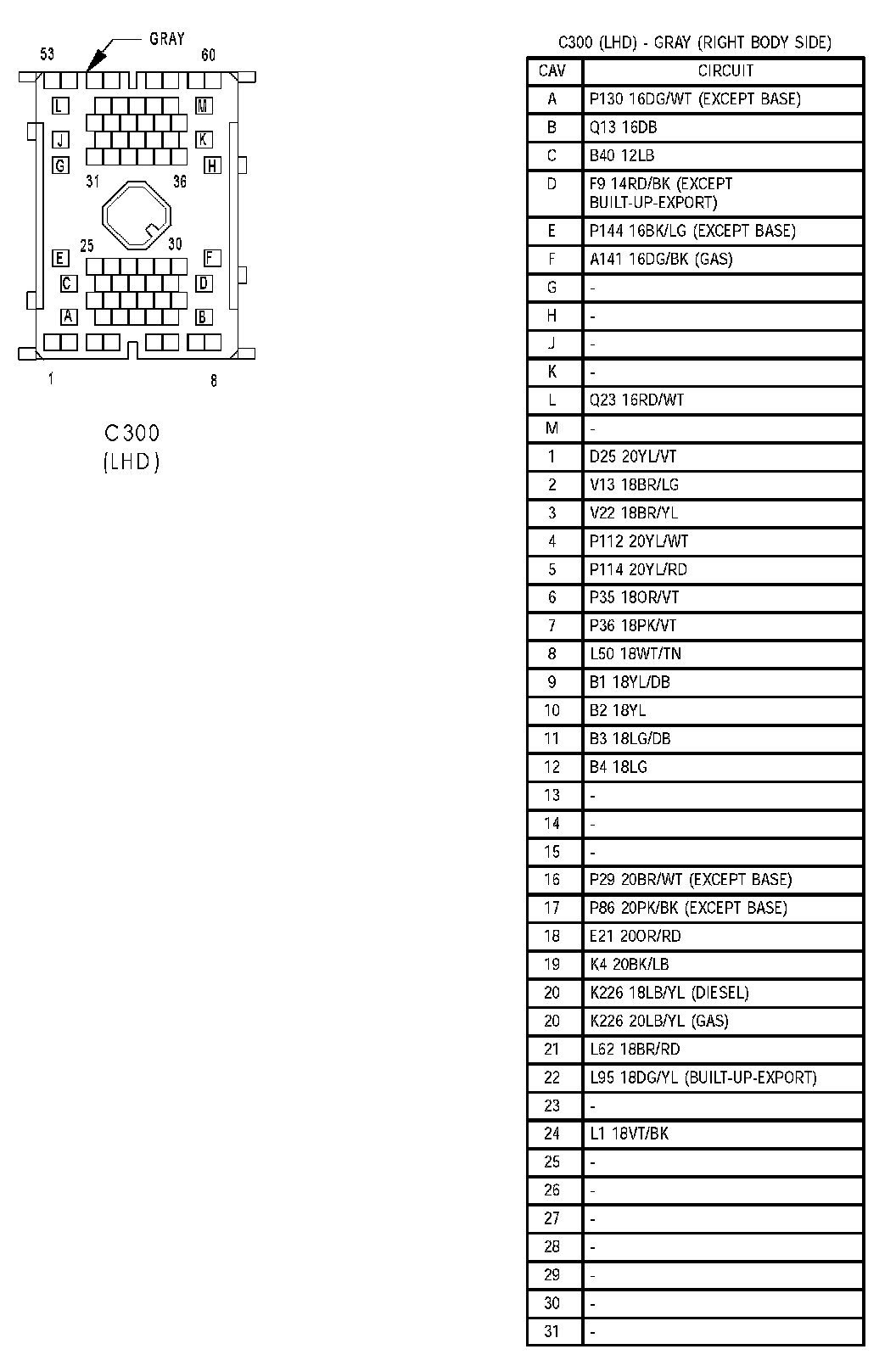

C300 (LHD) (Part 1 Of 2):

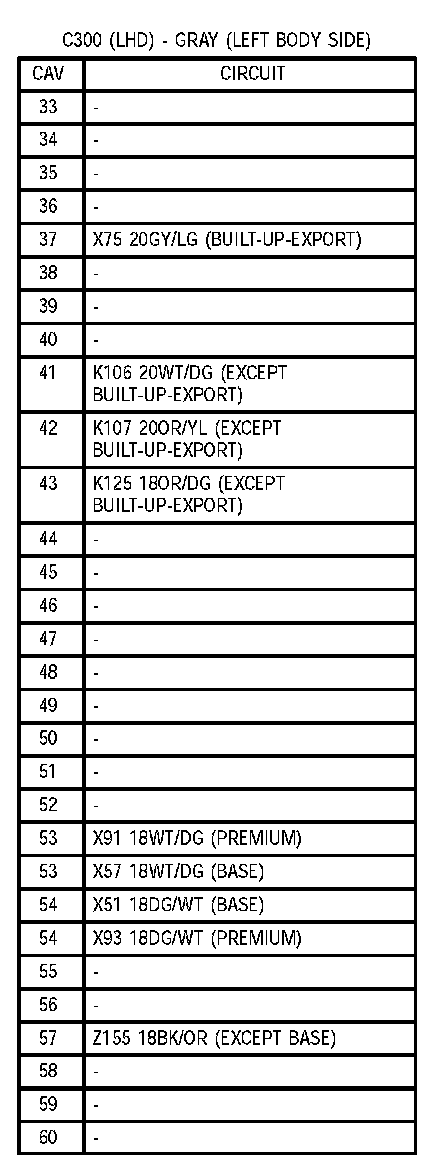

C300 (LHD) (Part 2 Of 2):

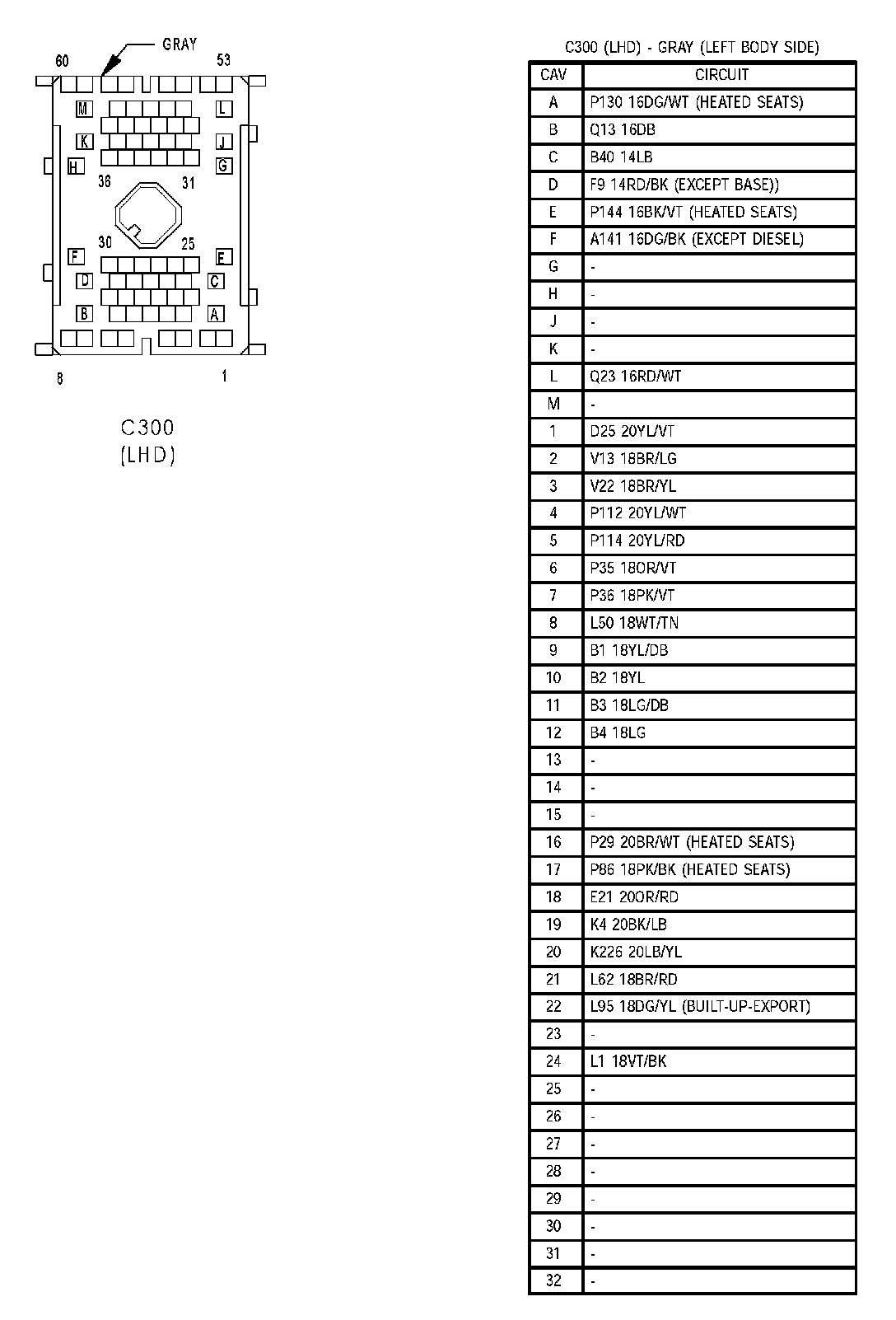

C300 (LHD) (Part 1 Of 2):

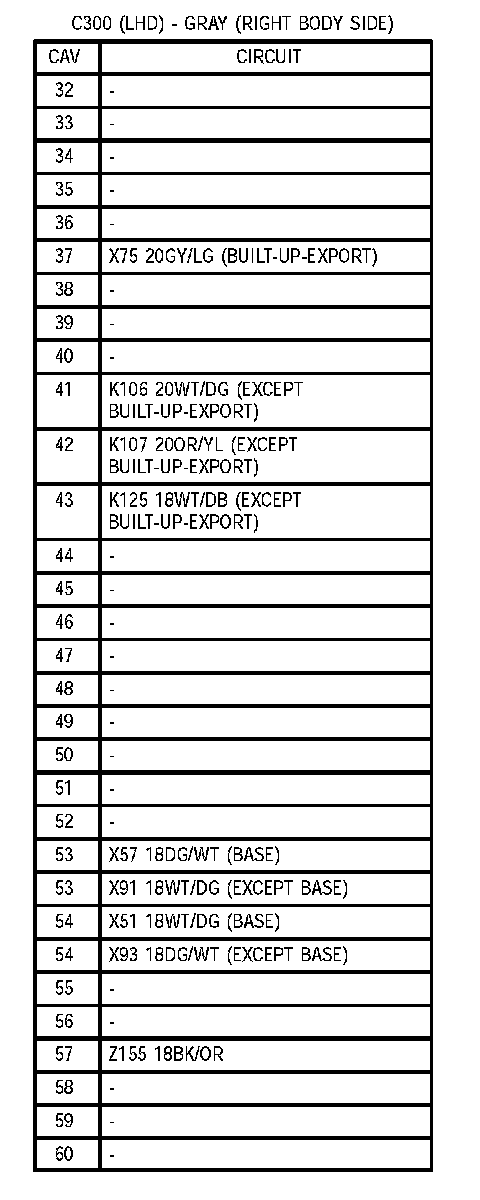

C300 (LHD) (Part 2 Of 2):
