C301
C301

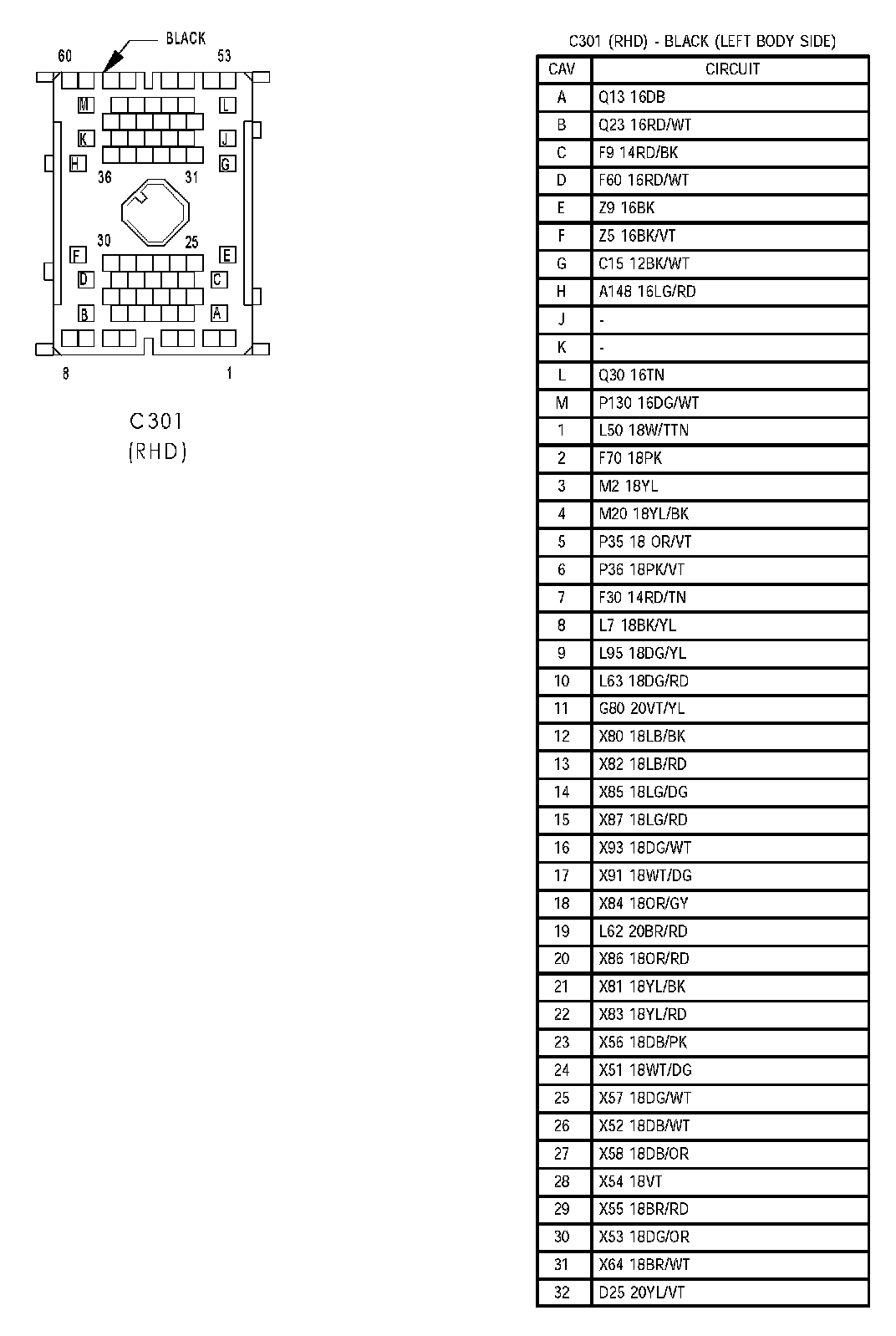

C301 (RHD) (Part 1 Of 2):

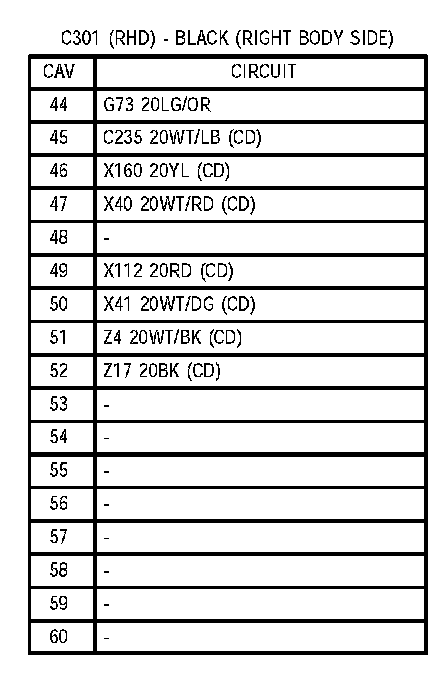

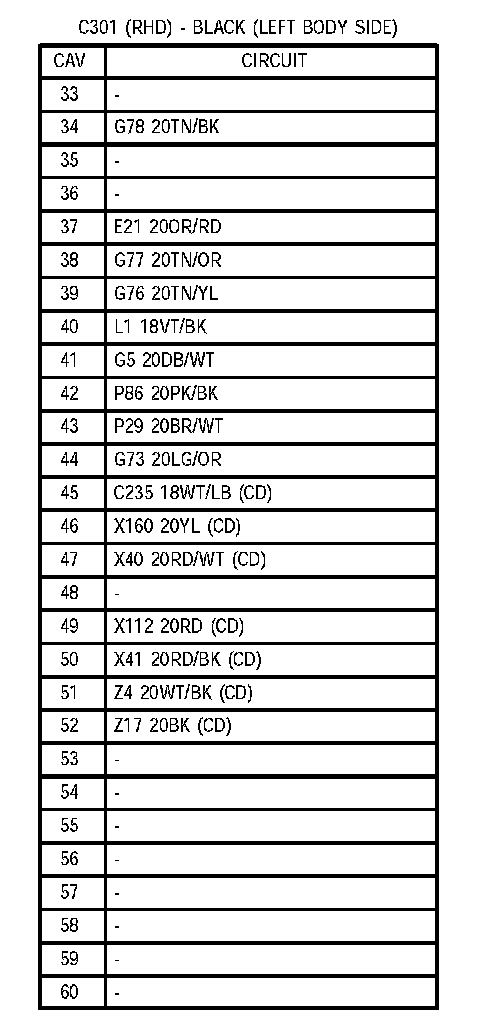

C301 (RHD) (Part 2 Of 2):

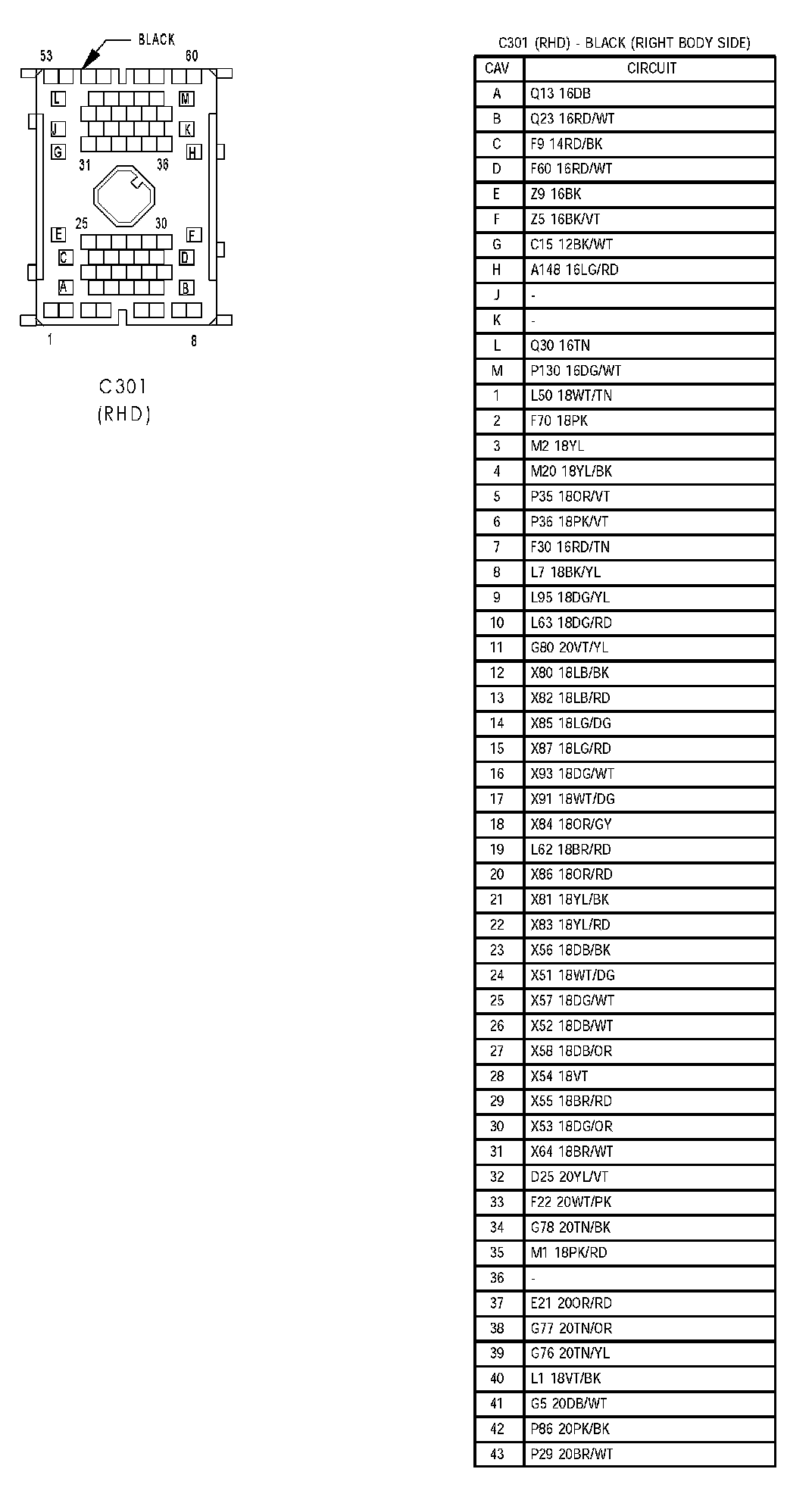

C301 (RHD) (Part 1 Of 2):
C301 (RHD) (Part 2 Of 2):
