C310
C310

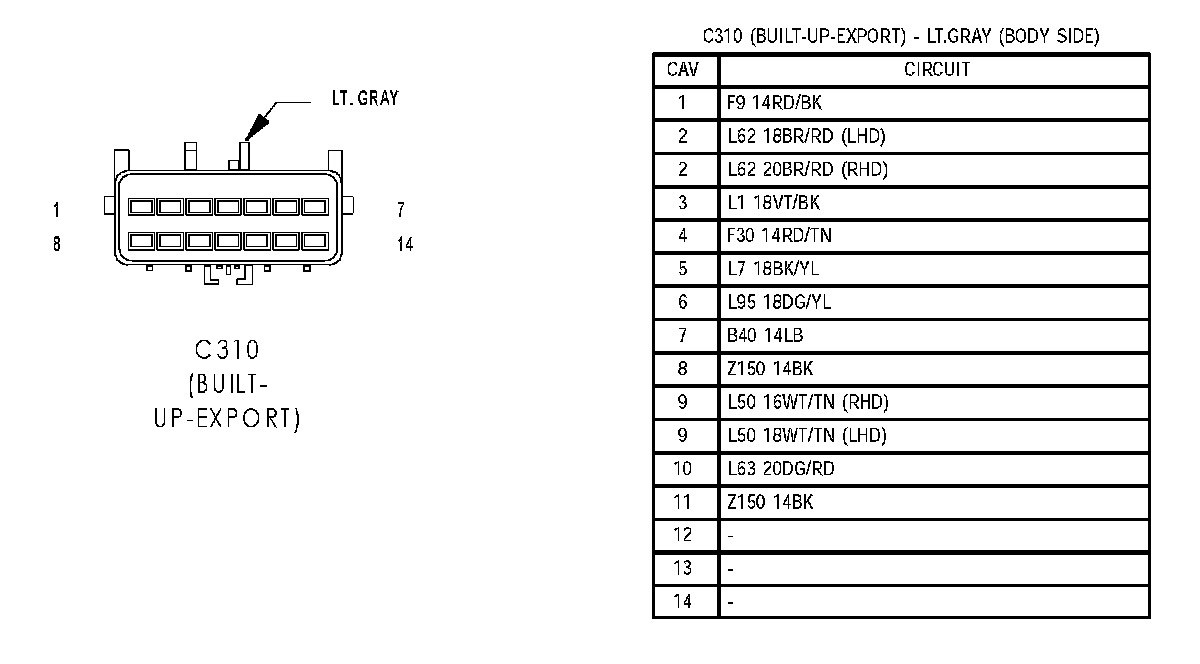

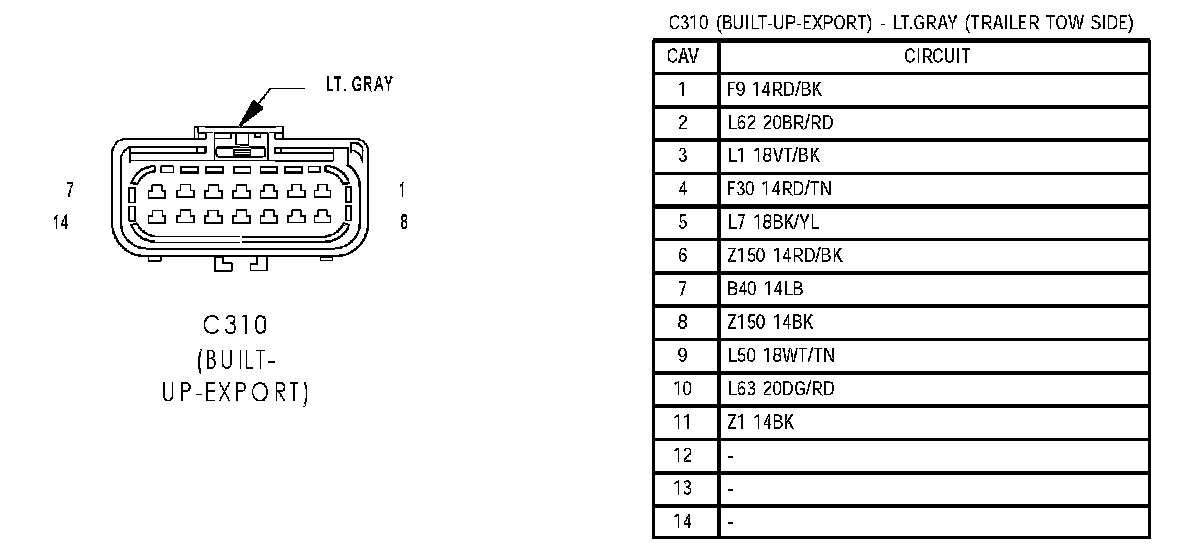

C310 (Built-Up-Export):
C310 (Built-Up-Export):

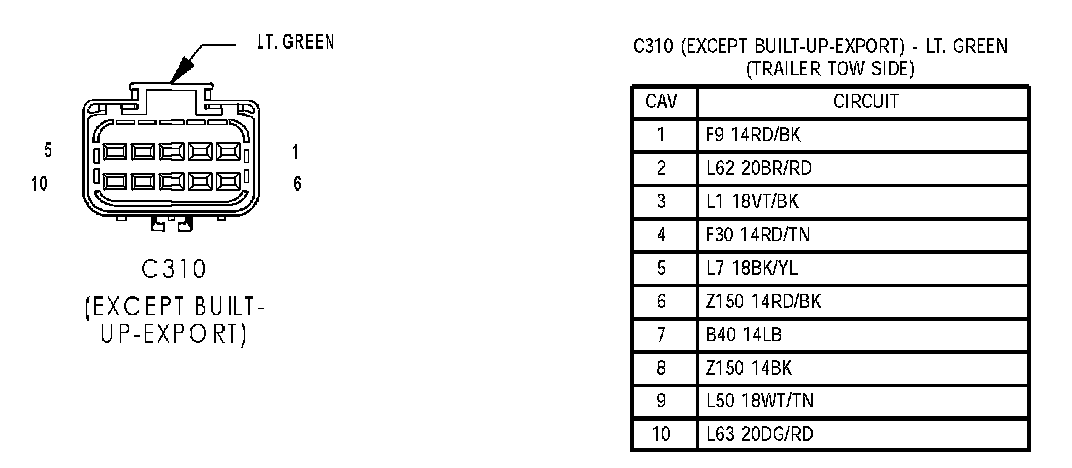

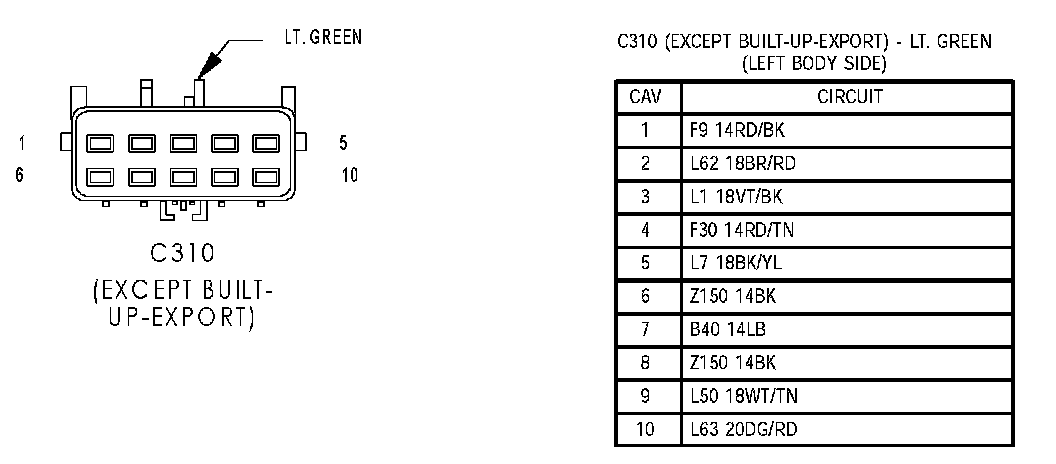

C310 (Except Built-Up-Export):
C310 (Except Built-Up-Export):
