System Diagram

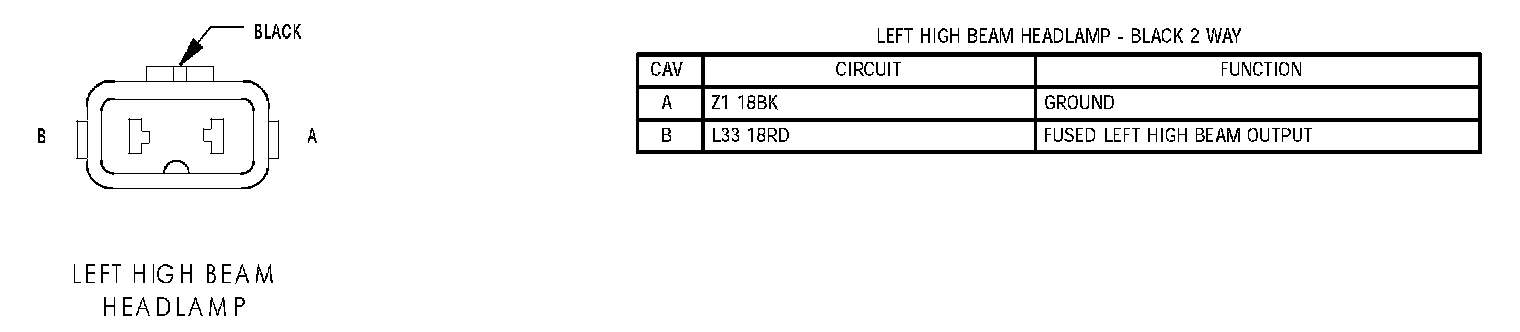

Left High Beam Headlamp:

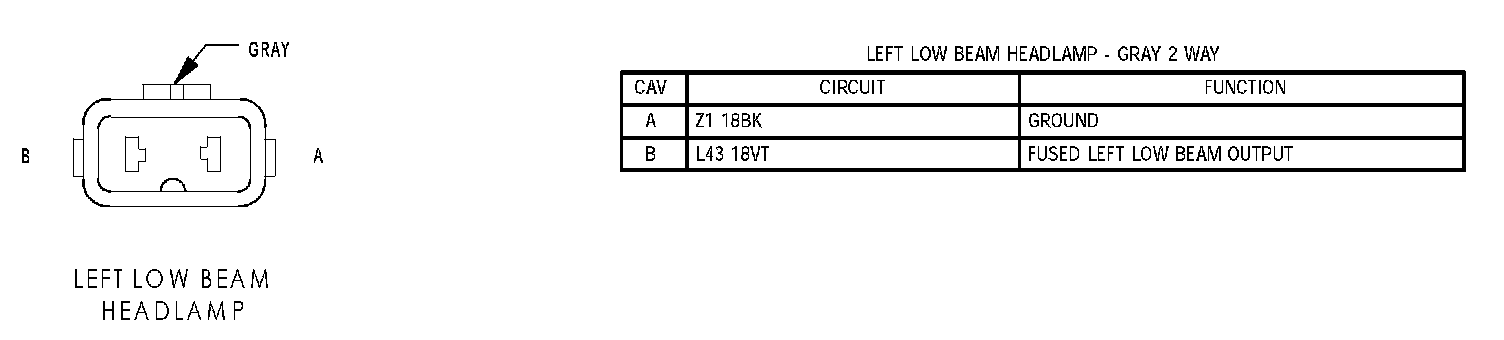

Left Low Beam Headlamp:

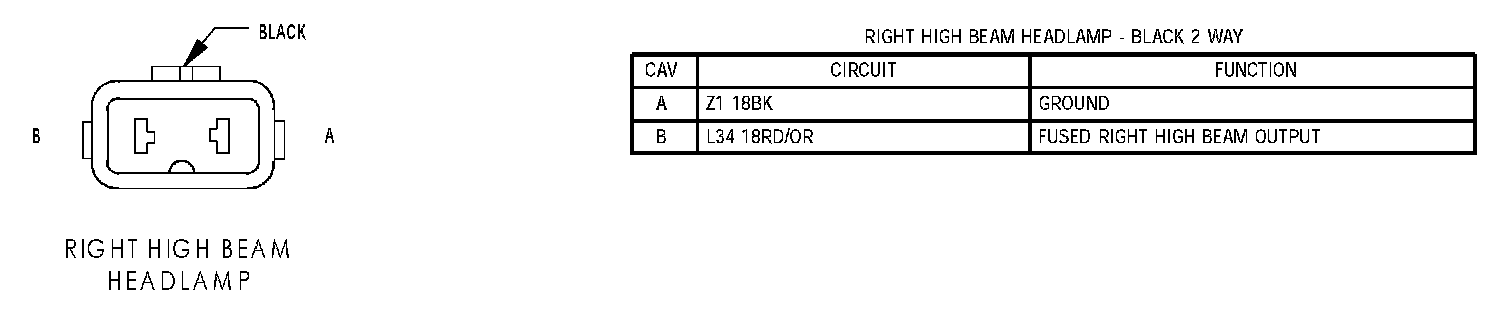

Right High Beam Headlamp:

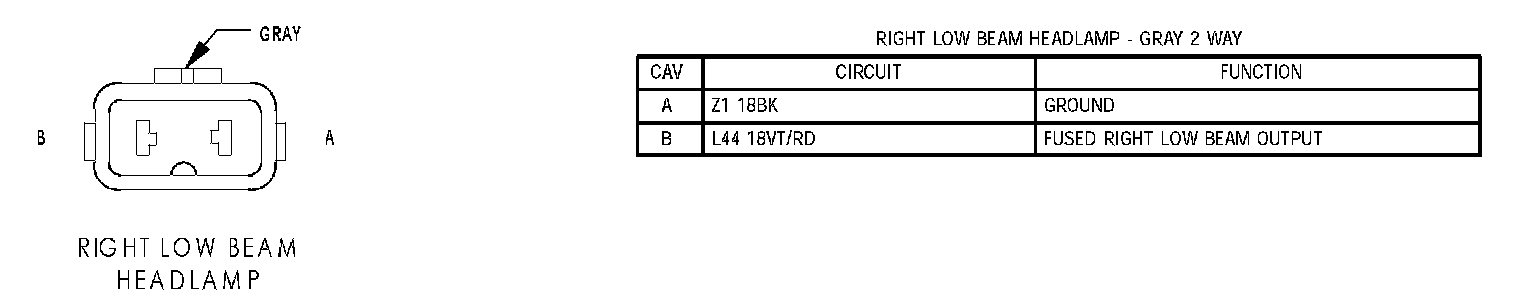

Right Low Beam Headlamp:

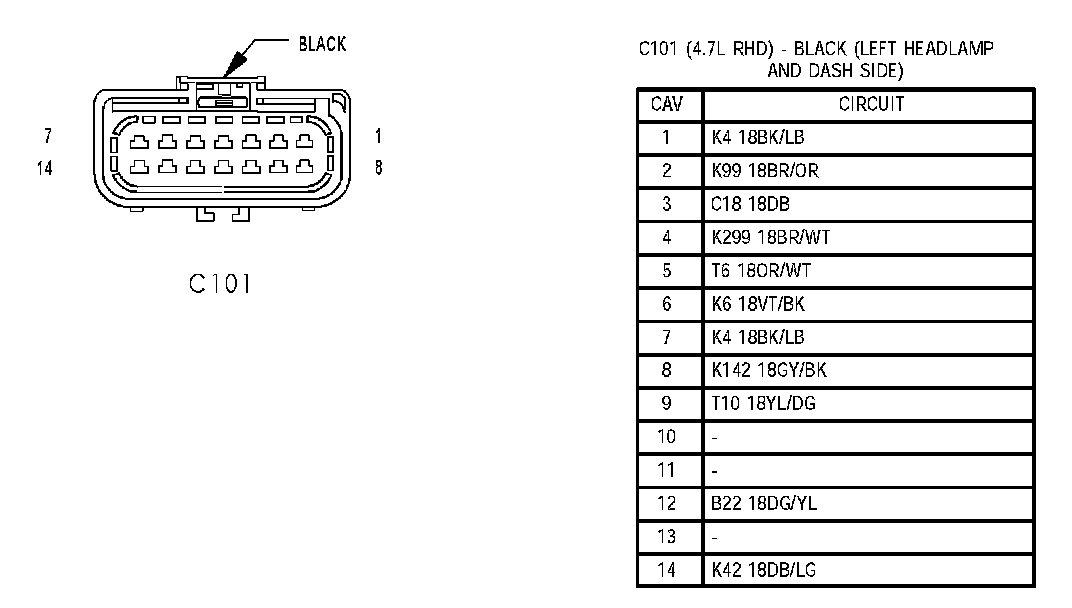

C101 (4.7L RHD):

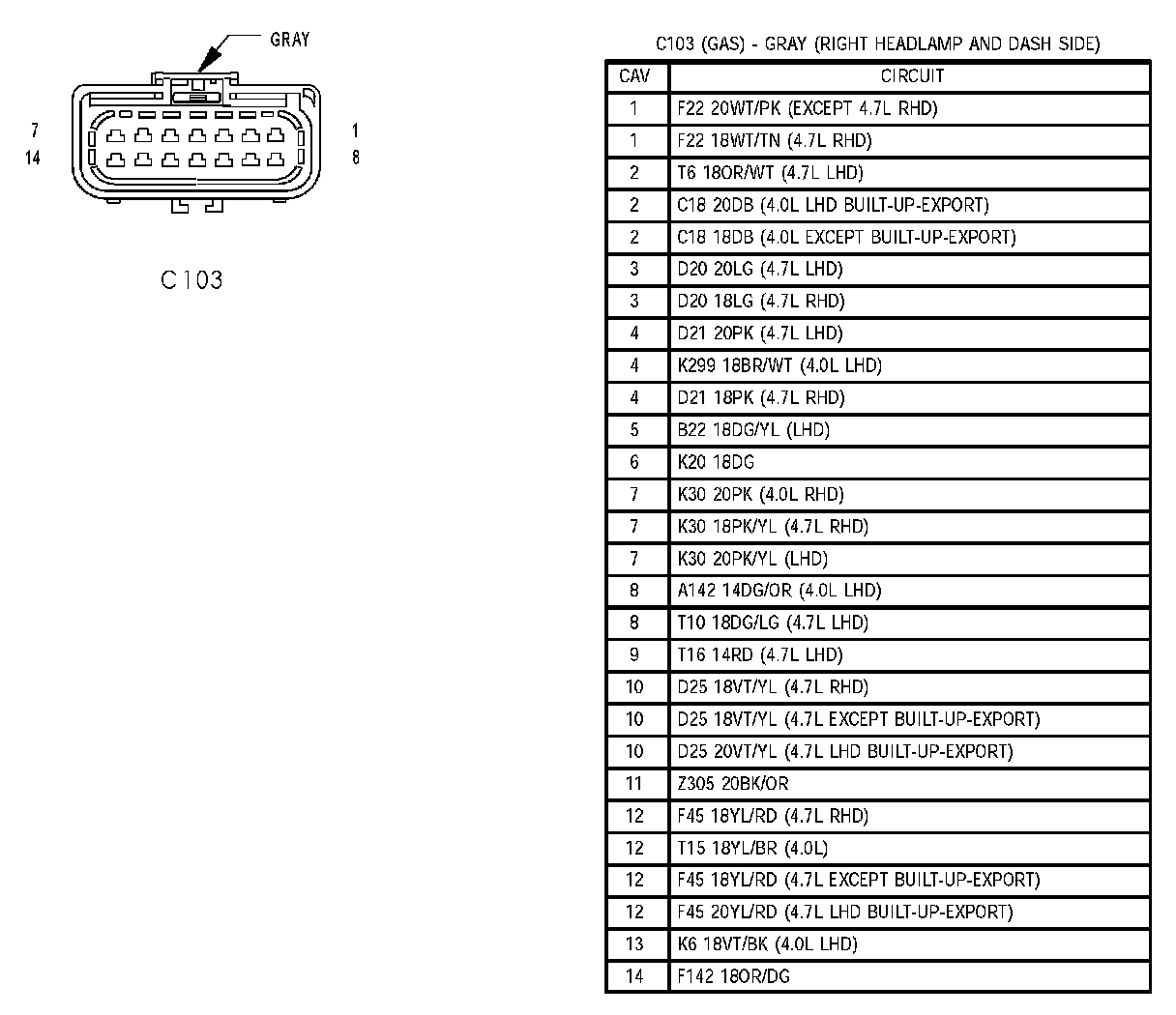

C103:

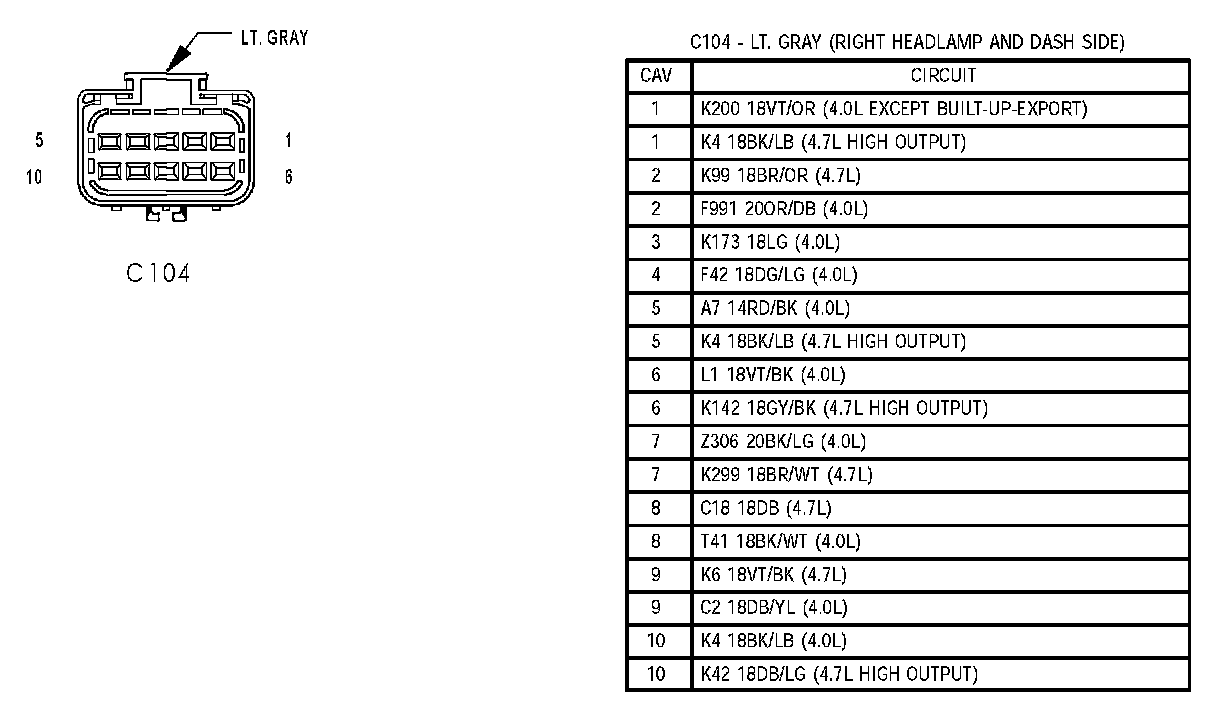

C104:

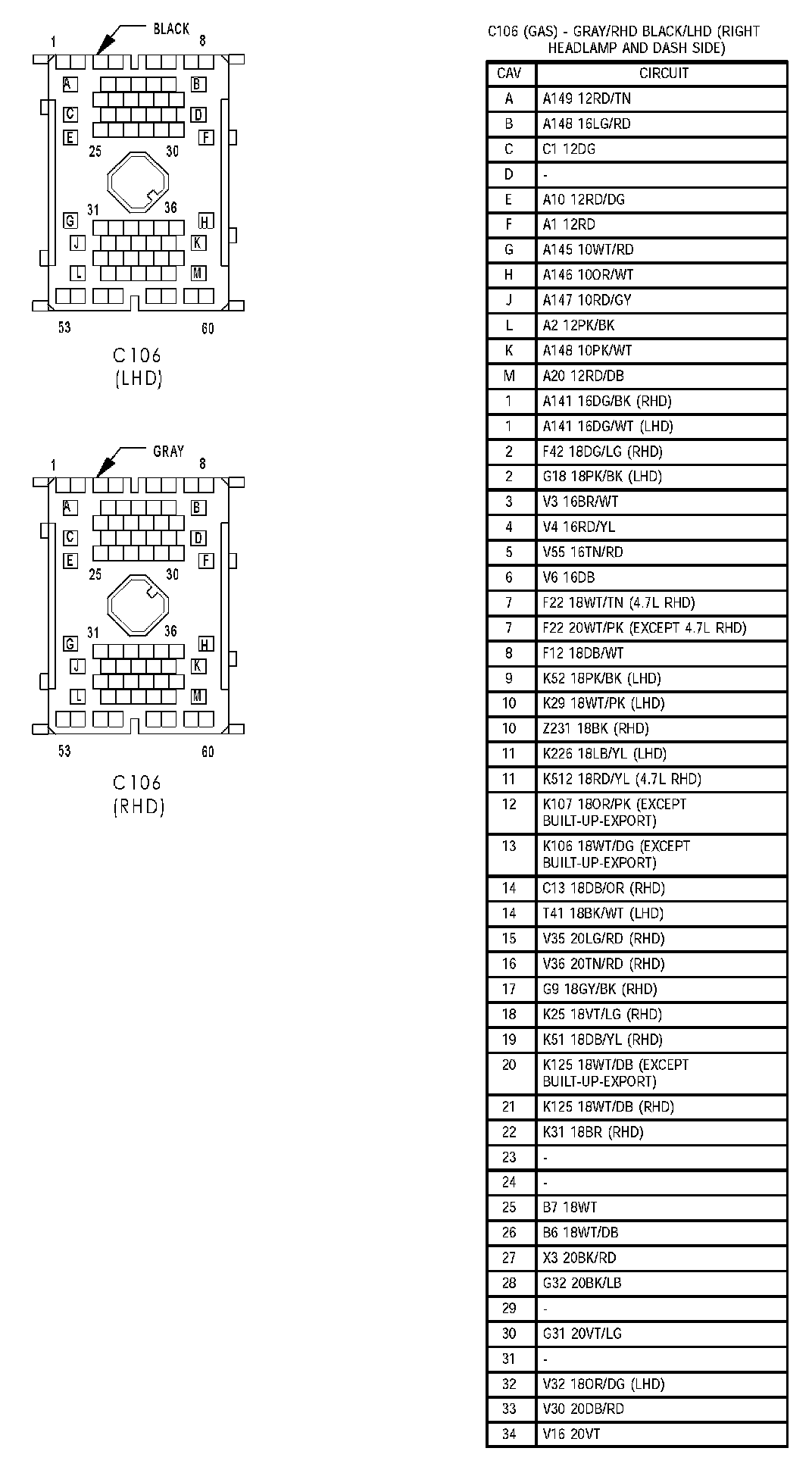

C106 (LHD), C106 (RHD) (Part 1 Of 2):

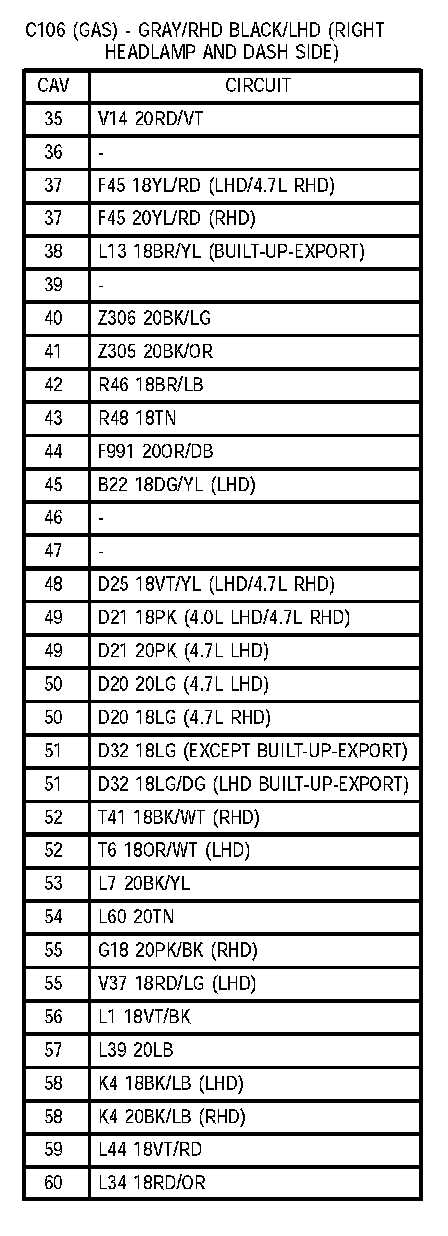

C106 (LHD), C106 (RHD) (Part 2 Of 2):

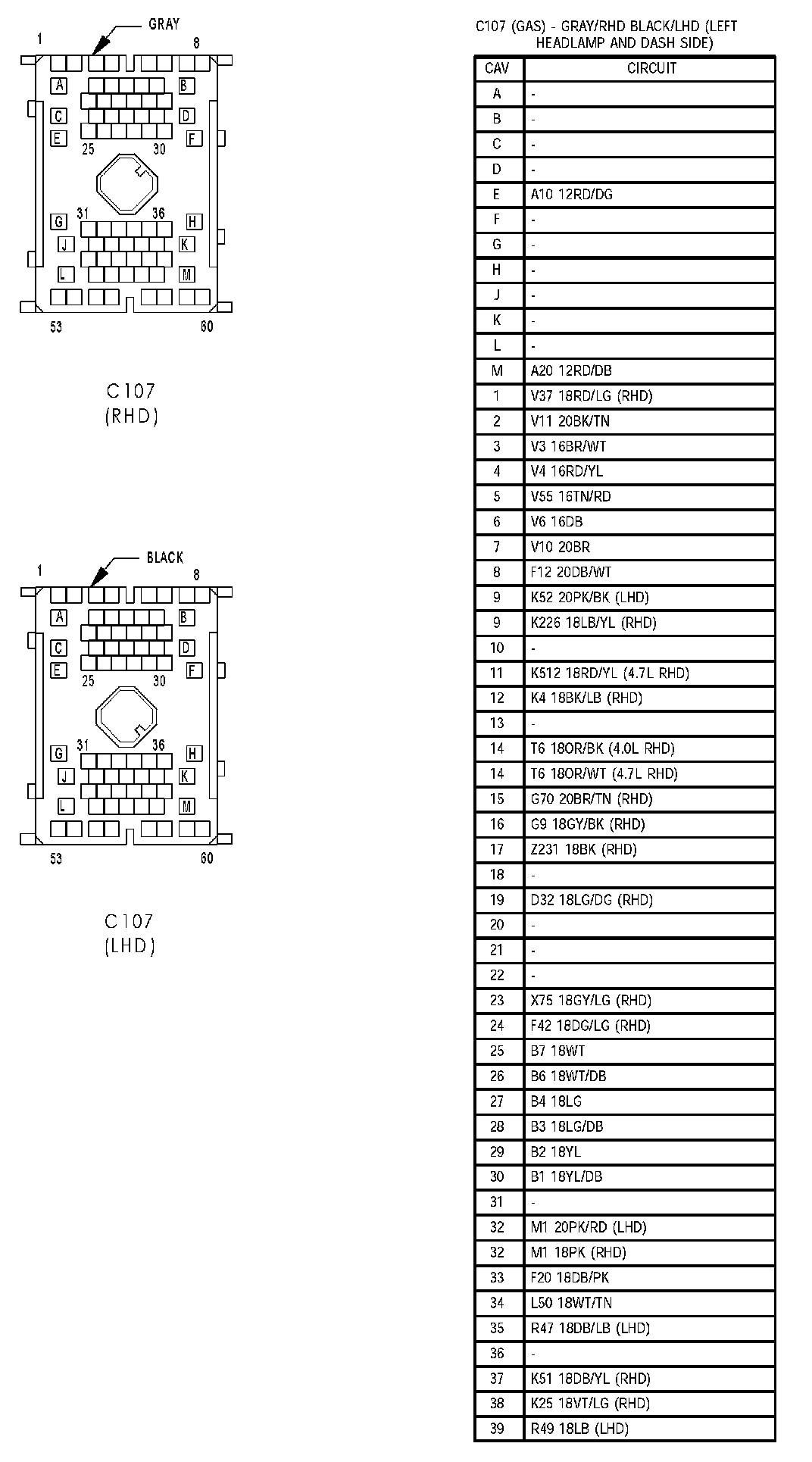

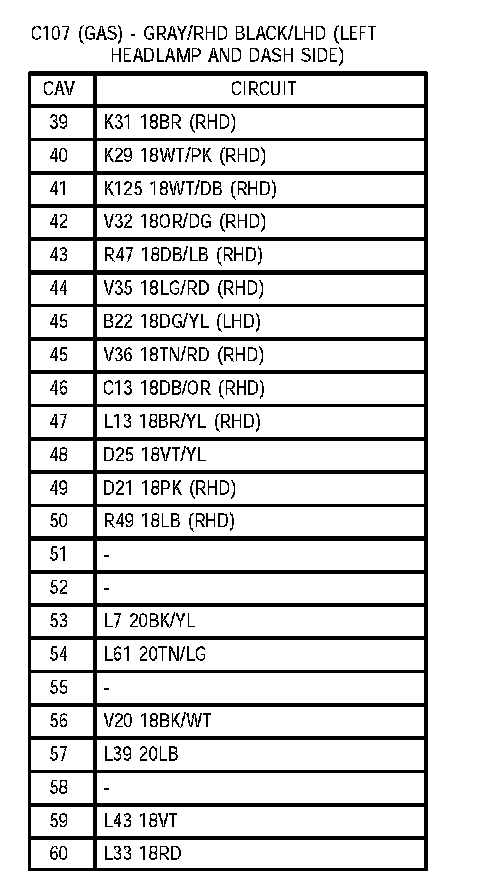

C107 (RHD), C107 (LHD) (Part 1 Of 2):

C107 (RHD), C107 (LHD) (Part 2 Of 2):

C107 (RHD), C107 (LHD) (Part 2 Of 2):

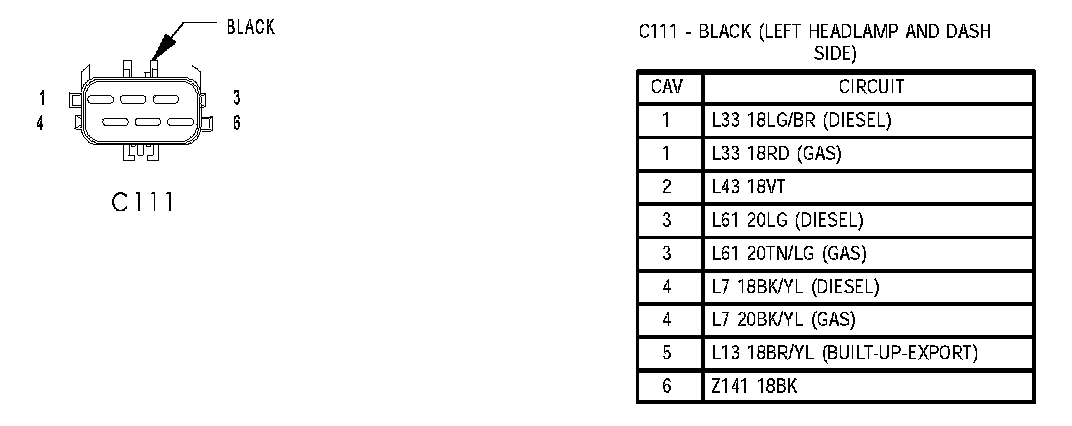

C111:

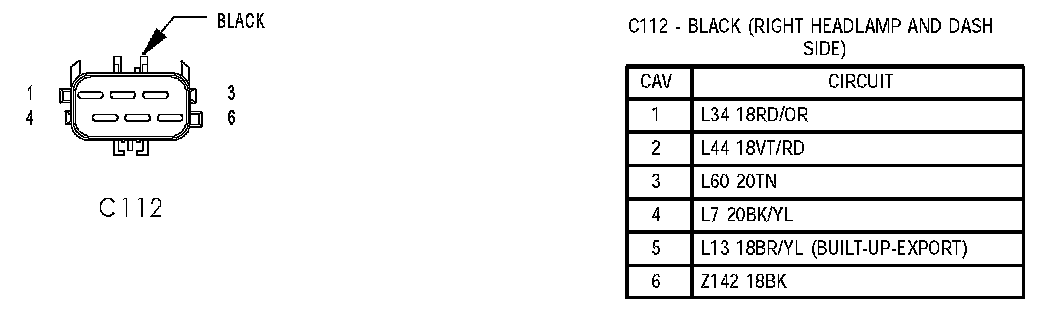

C112:
