Power Seat Switch
Power Seat Switch

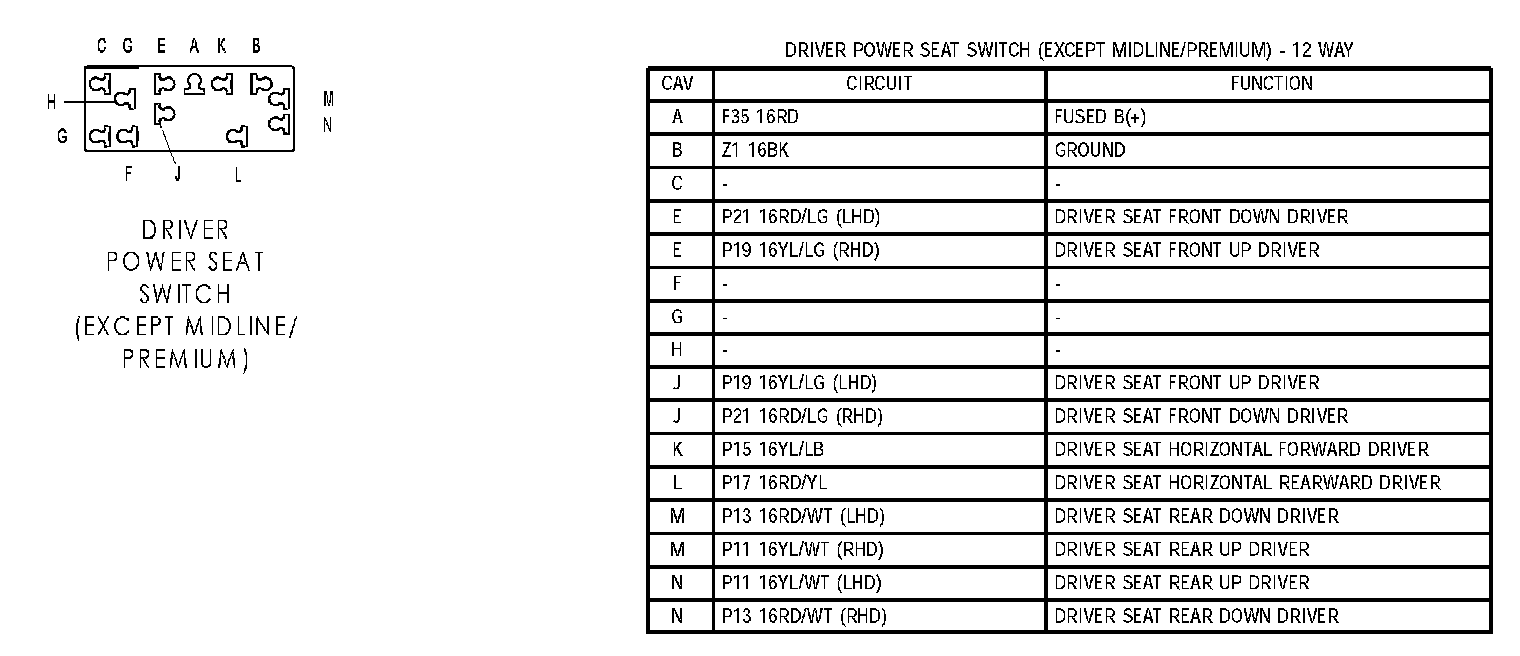

Driver Power Seat Switch (Except Midline/Premium):

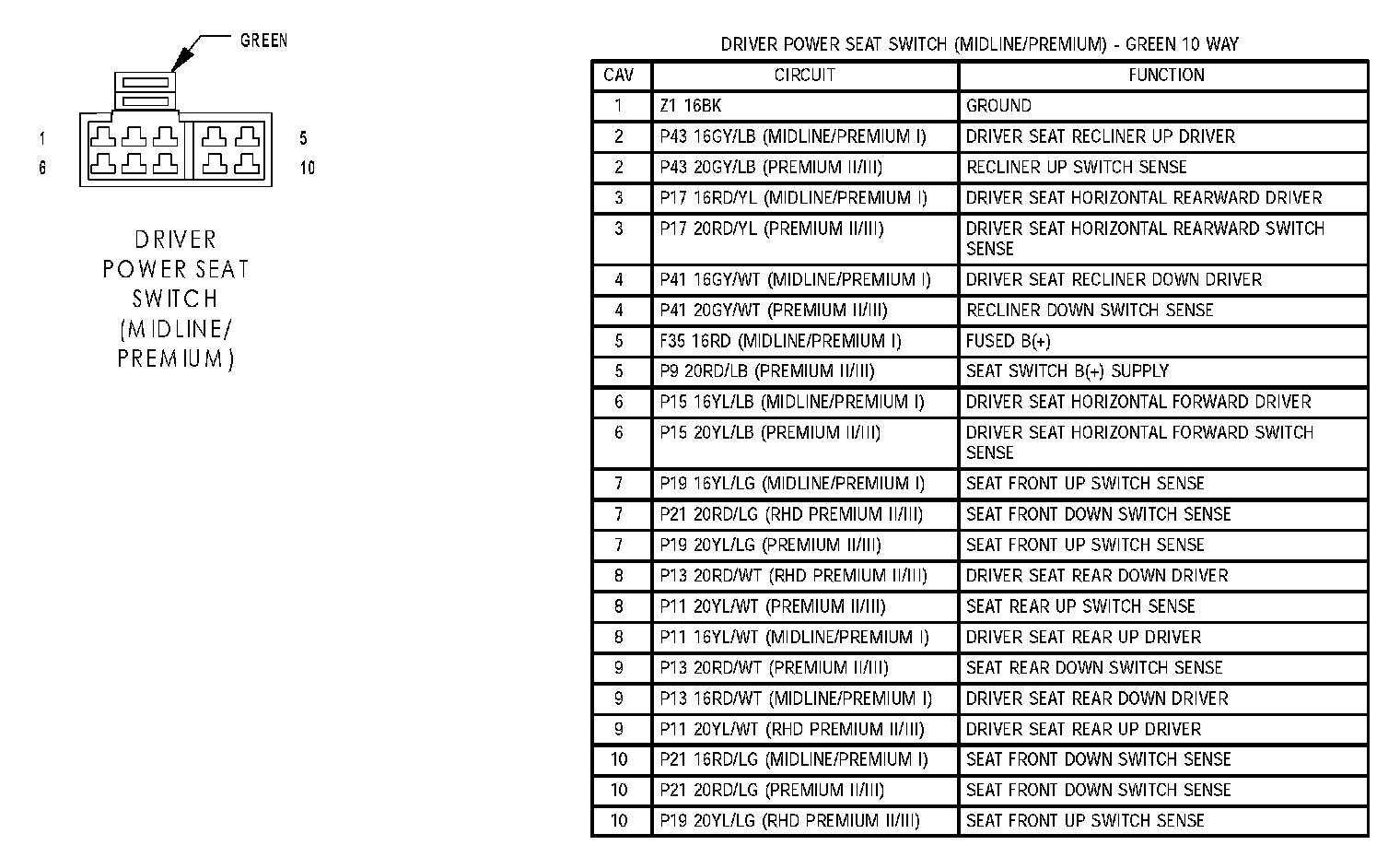

Driver Power Seat Switch (Midline/Premium):
Passenger Power Seat Switch (Midline/Premium):
