Seat Temperature Switch
Seat Temperature Switch

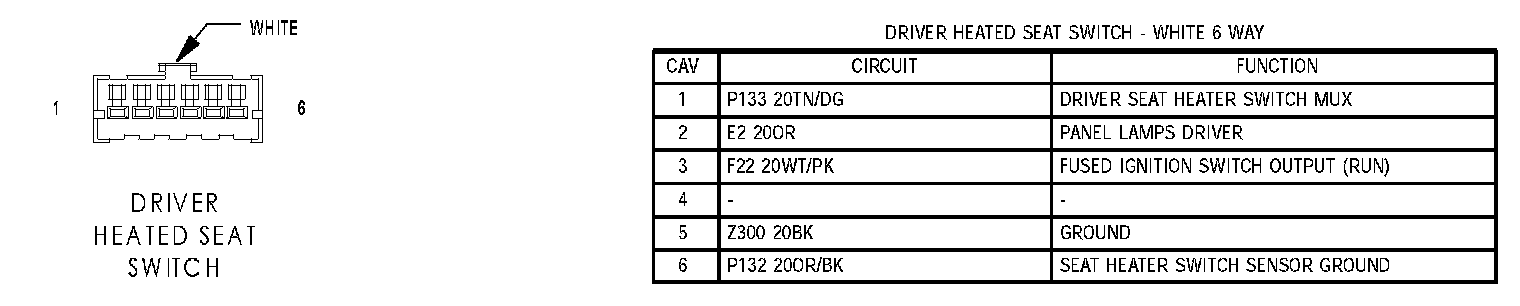

Driver Heated Seat Switch:

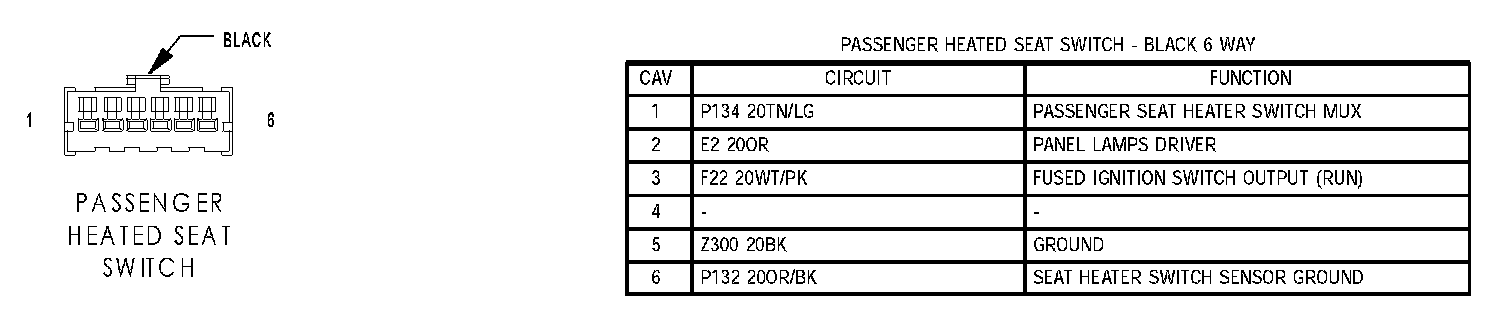

Passenger Heated Seat Switch:
