Jeep
>>
2002
>>
Grand Cherokee 2WD Limited V8-4.7L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Speaker
Speaker

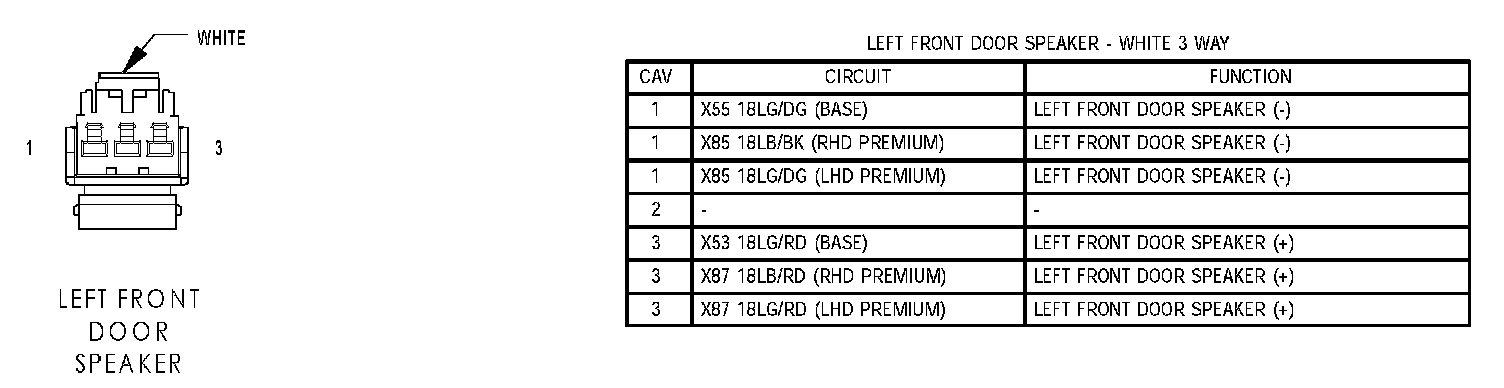

Left Front Door Speaker:

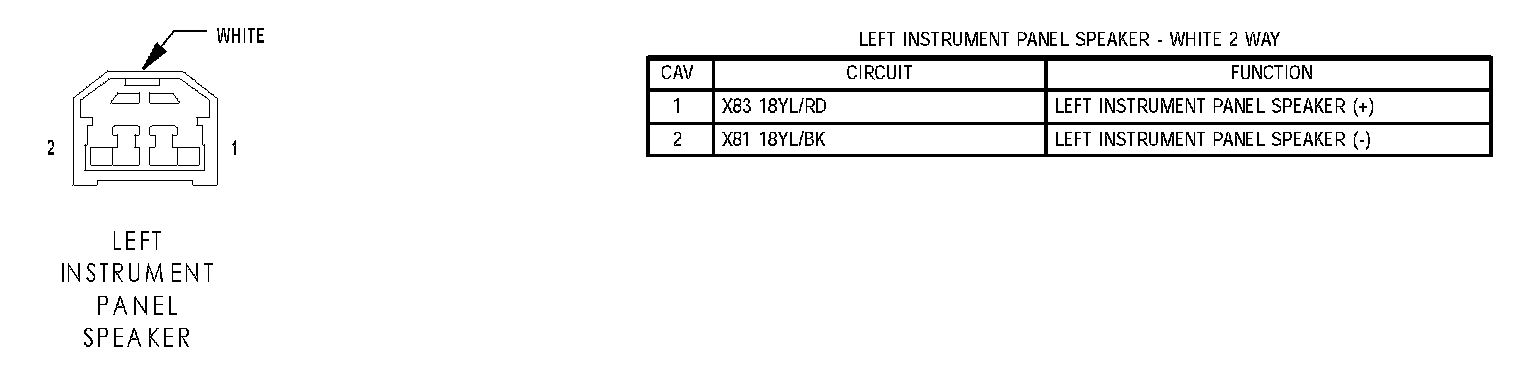

Left Instrument Panel Speaker:

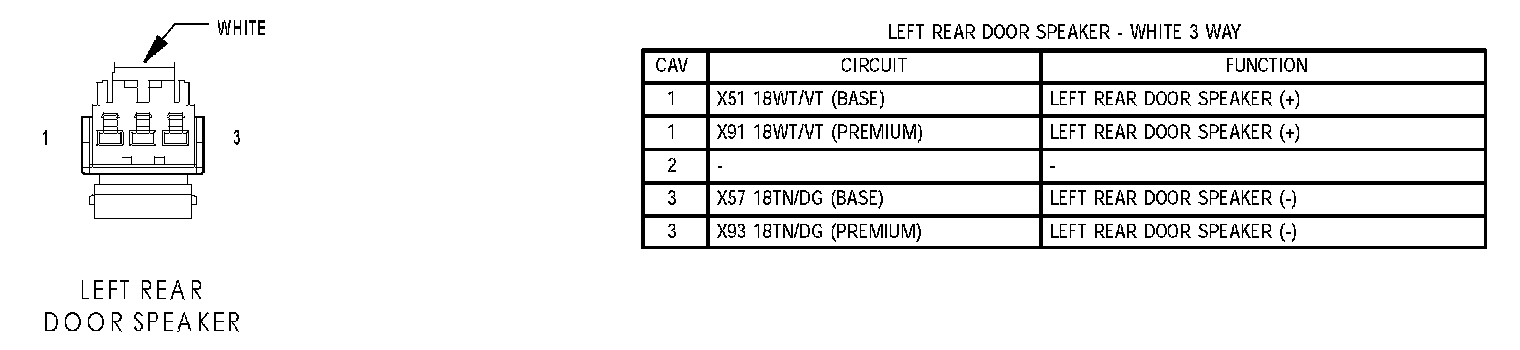

Left Rear Door Speaker:
Right Front Door Speaker:

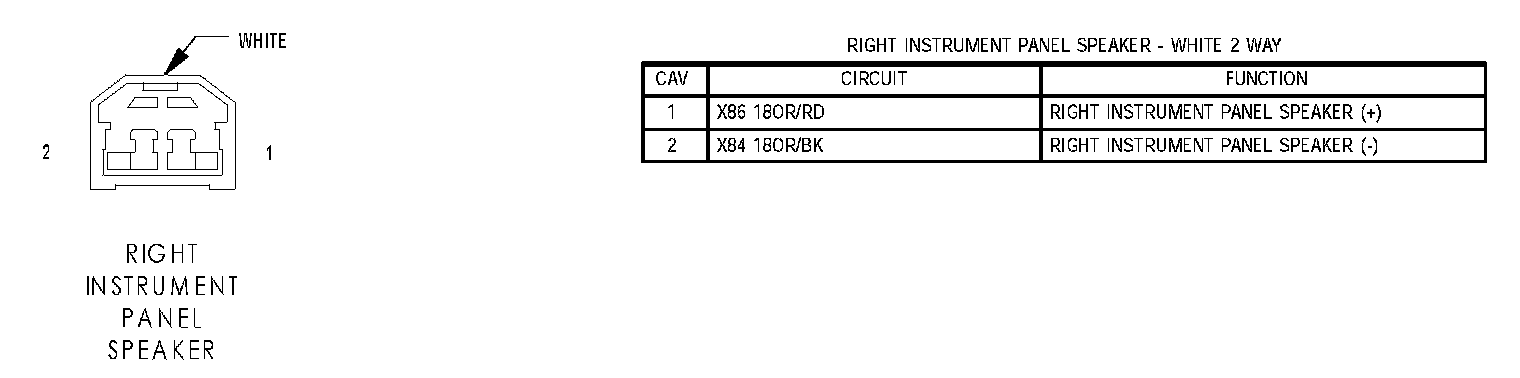

Right Instrument Panel Speaker:

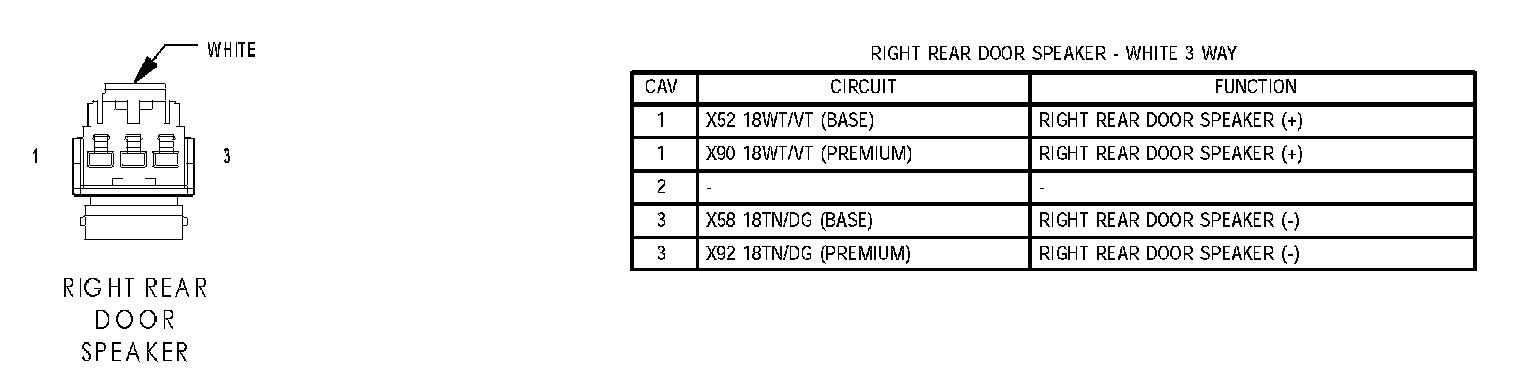

Right Rear Door Speaker:
