Trunk / Liftgate Switch
Trunk / Liftgate Switch

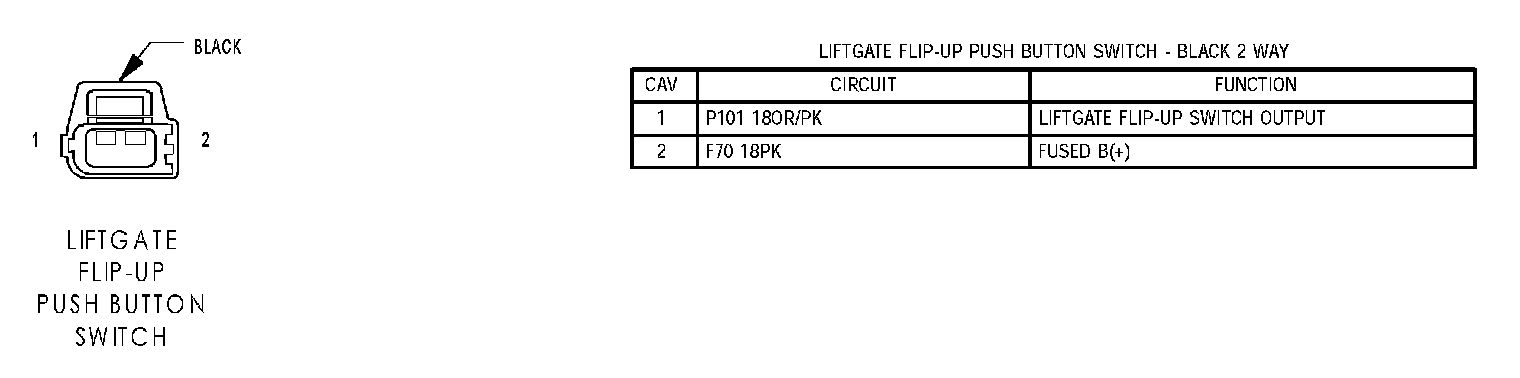

Liftgate Flip-Up Push Button Switch:

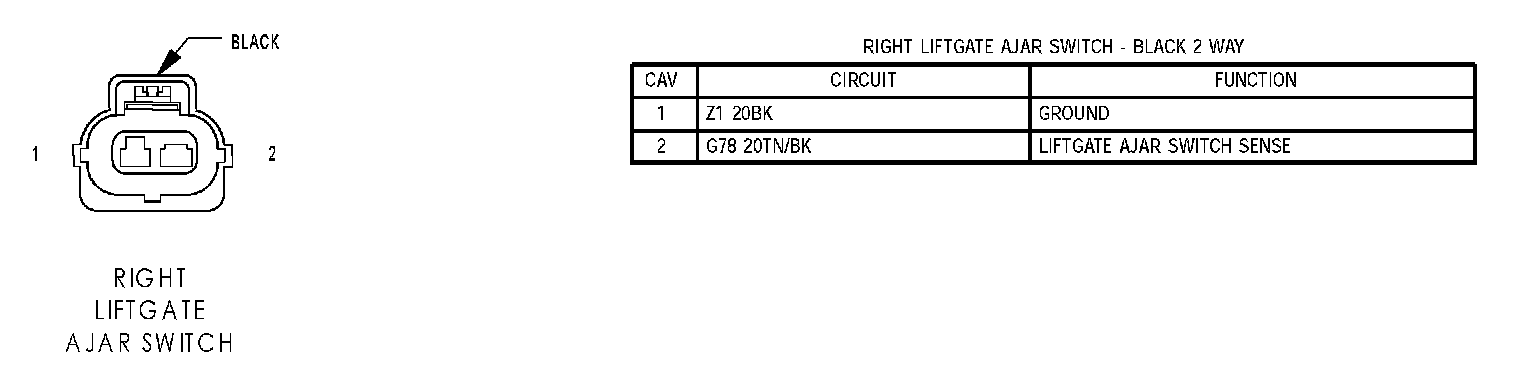

Right Liftgate Ajar Switch:
