Home >> Jeep >> 2002 >> Grand Cherokee 2WD Limited V8-4.7L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Diagrams By Number >> Group 8W-41 (Horn/Cigar Lighter/Power Outlet) >> Sheet 8W-41-4

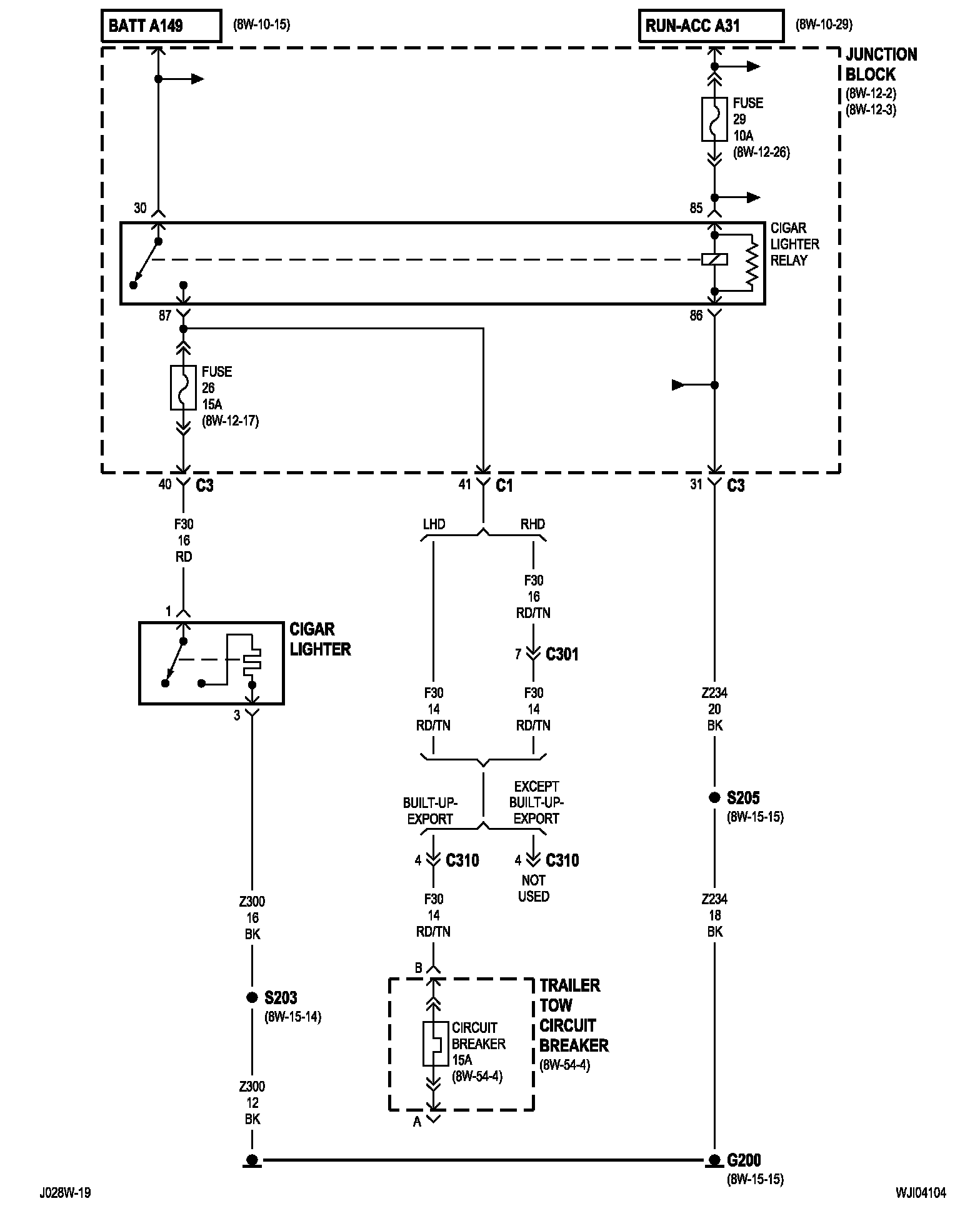

Sheet 8W-41-4

8w-41-4:
