Automatic Transmission/Transaxle

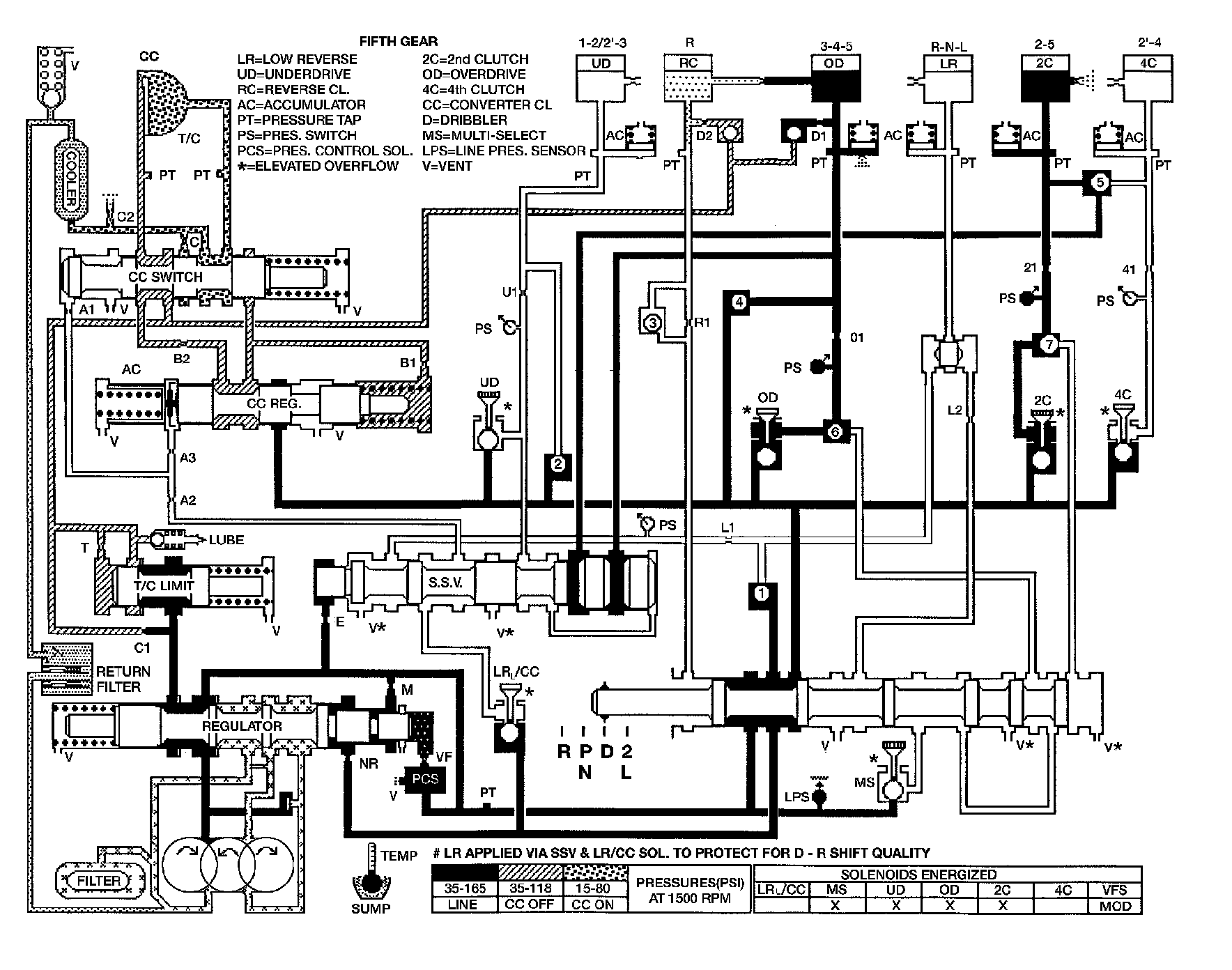

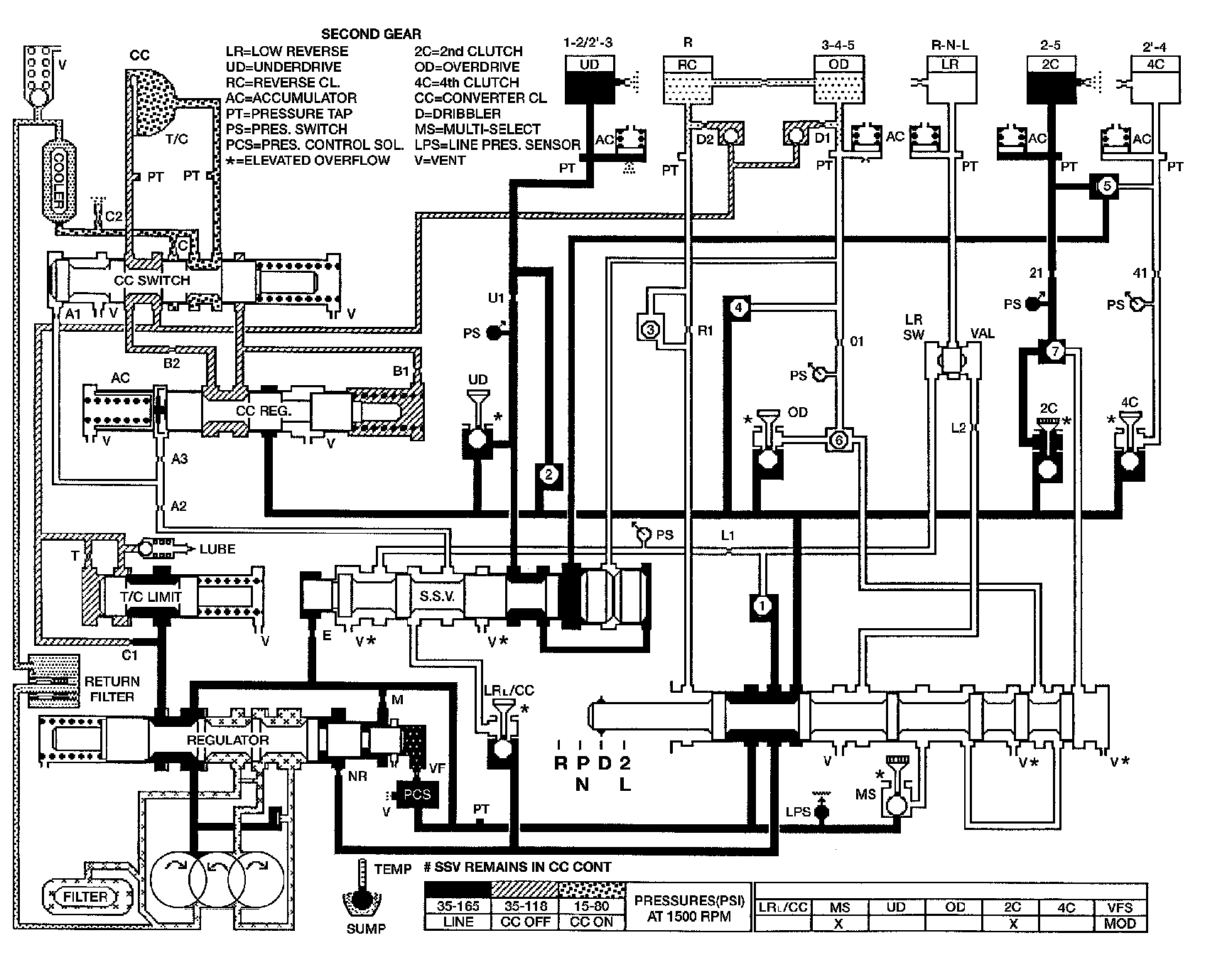

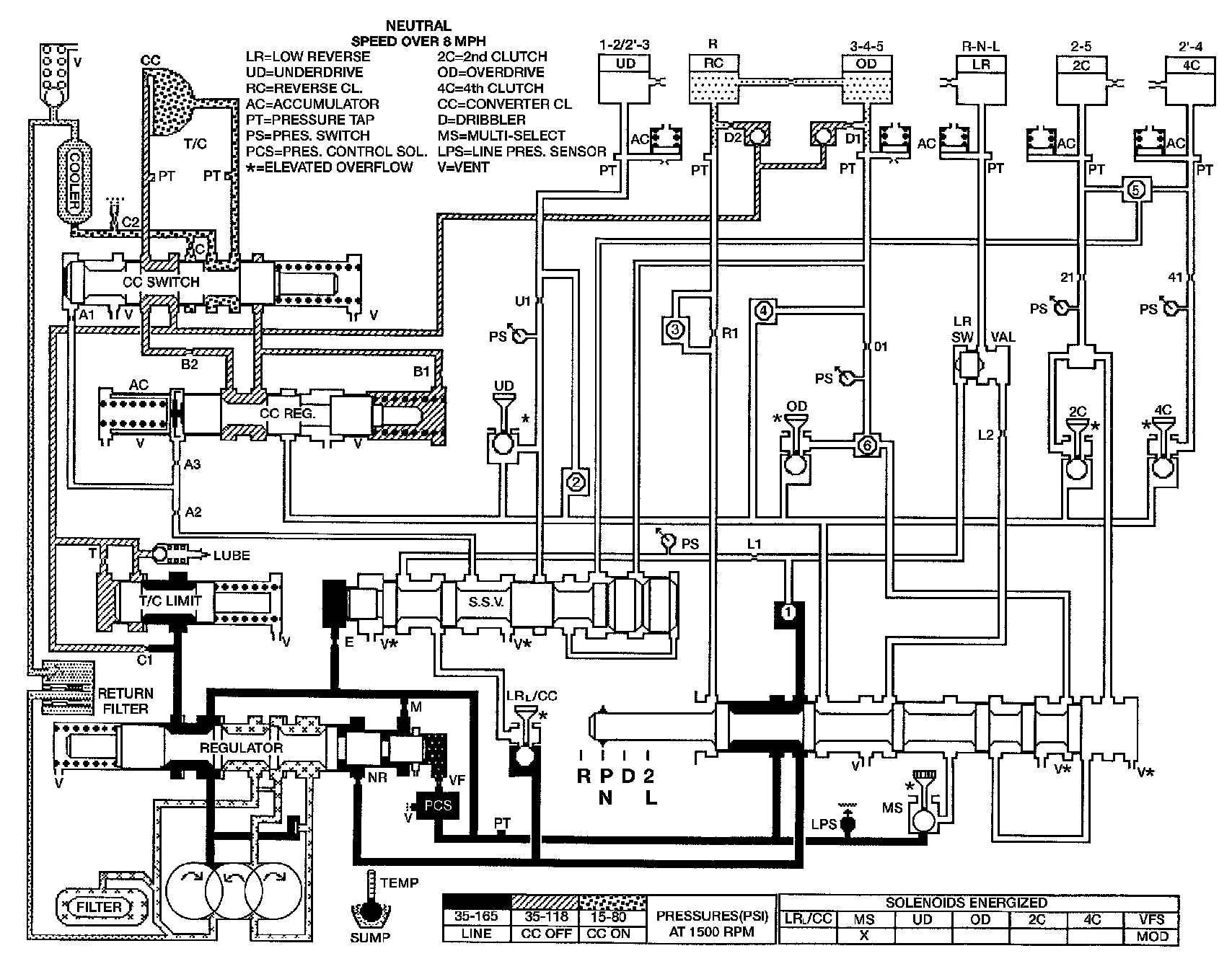

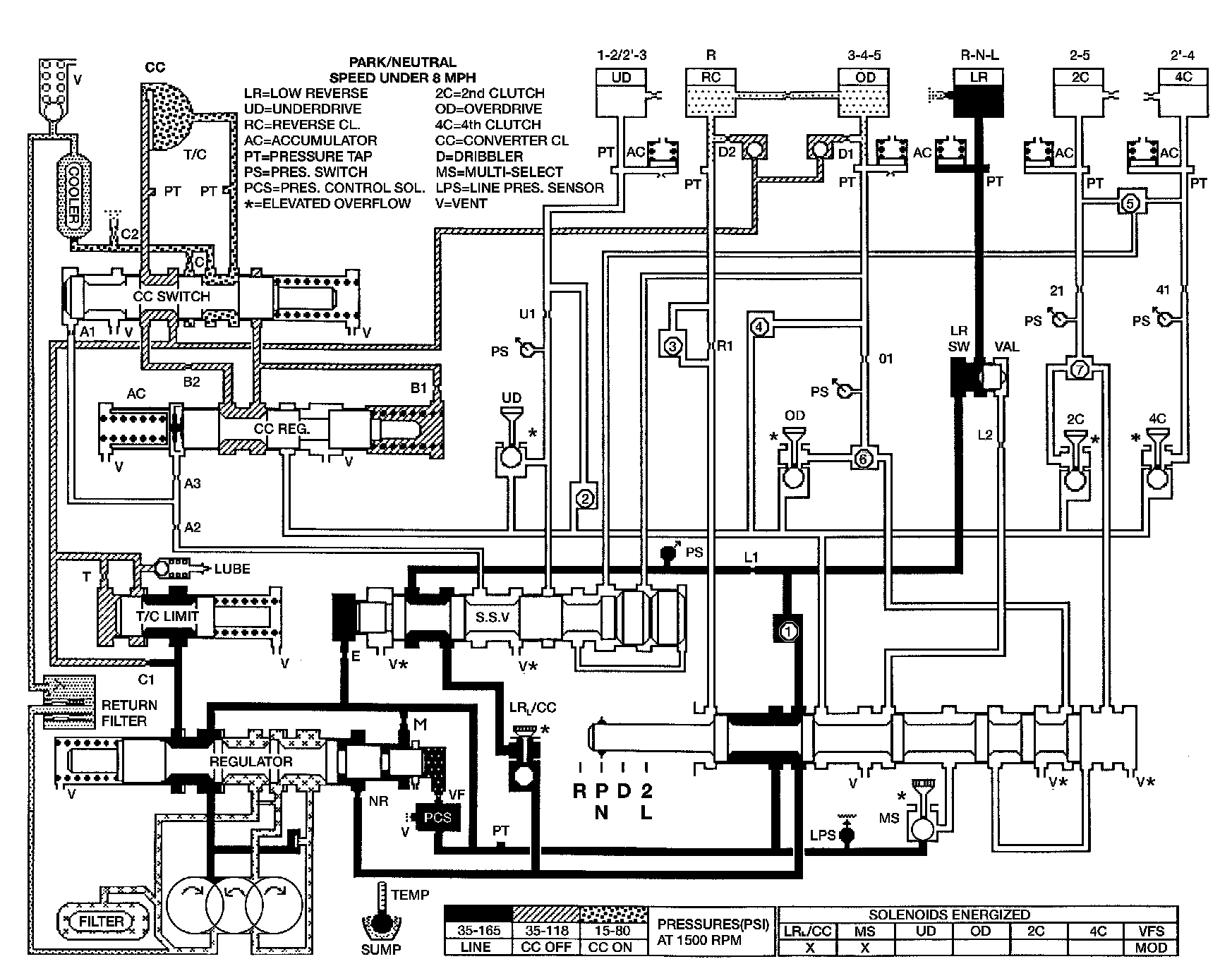

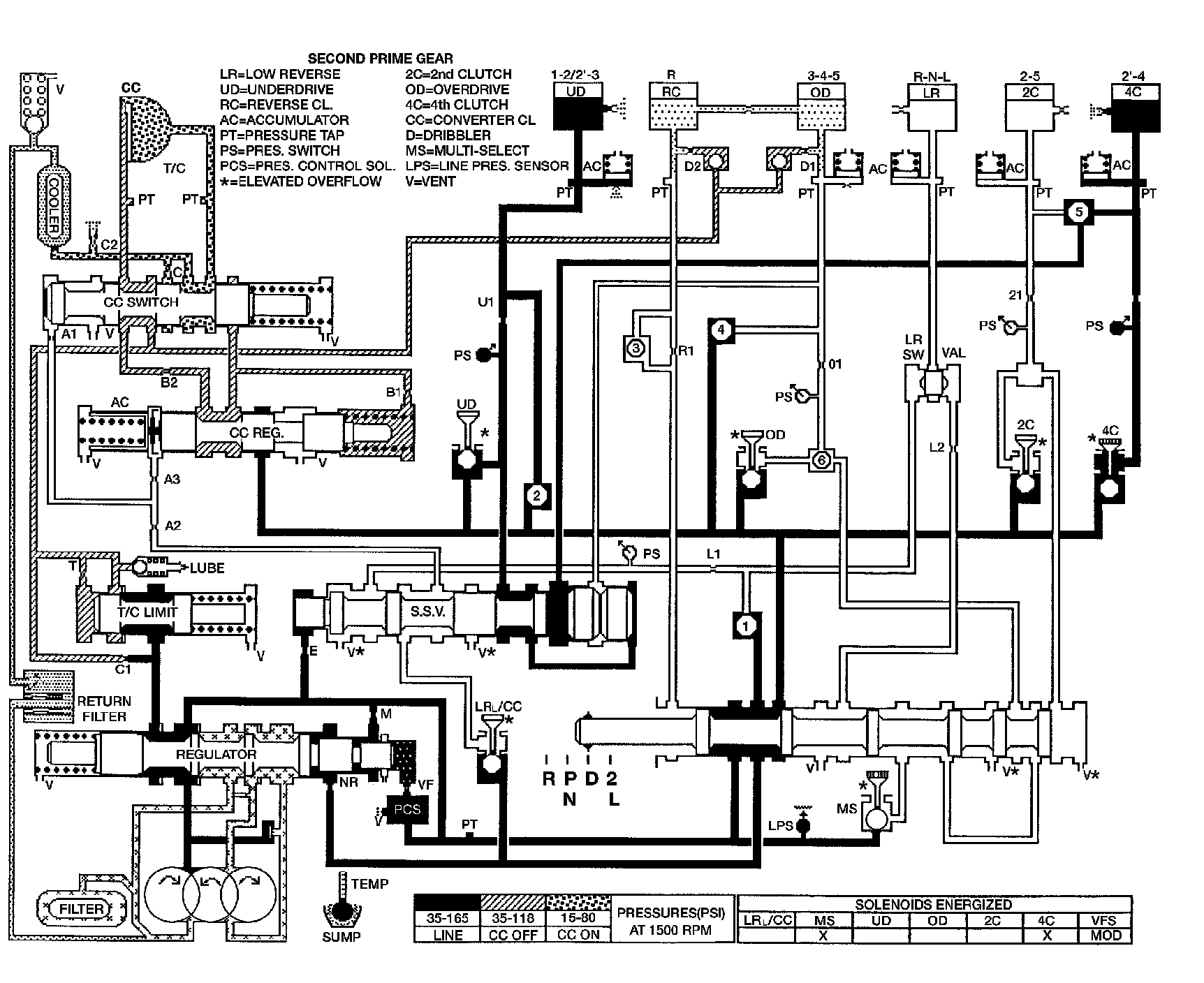

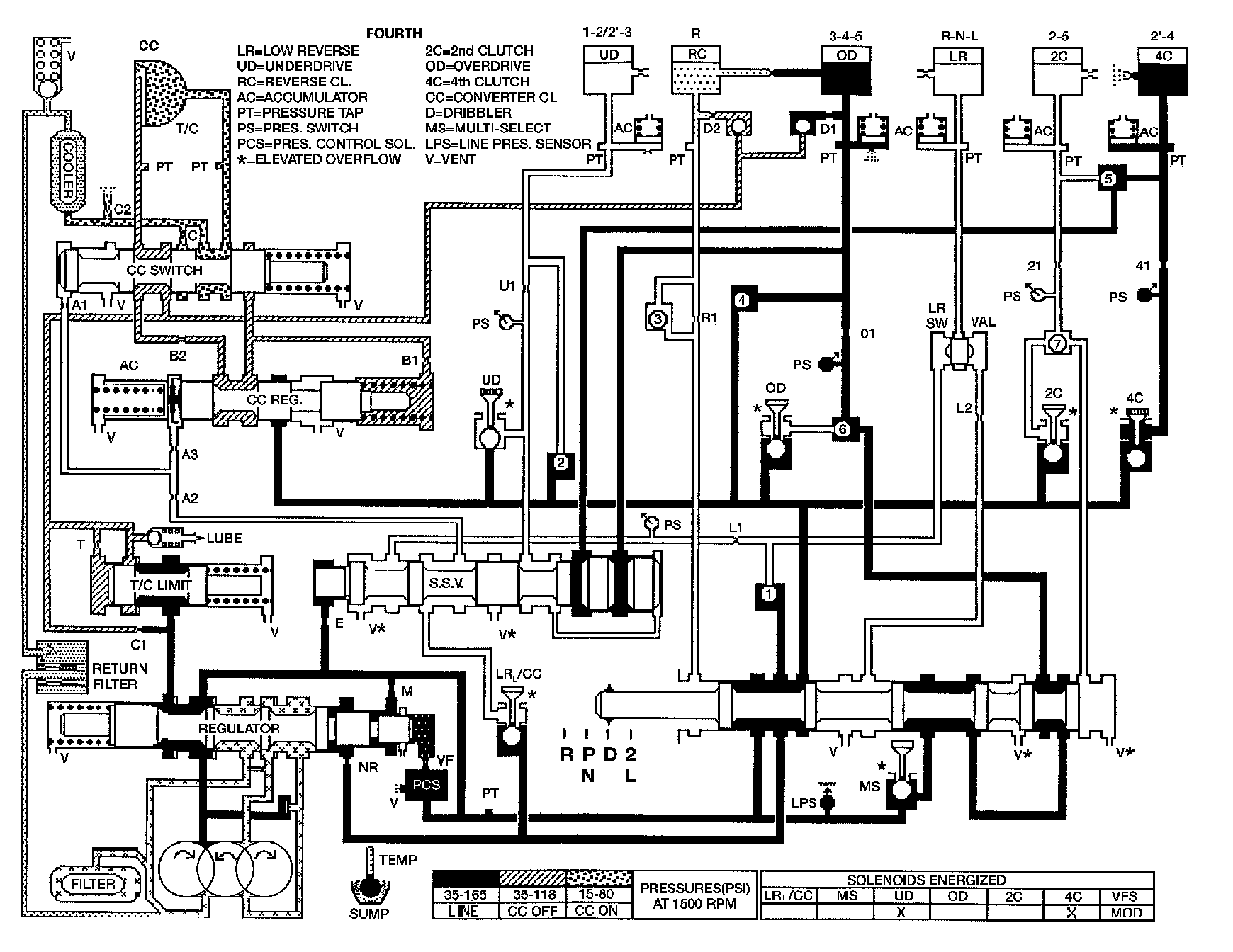

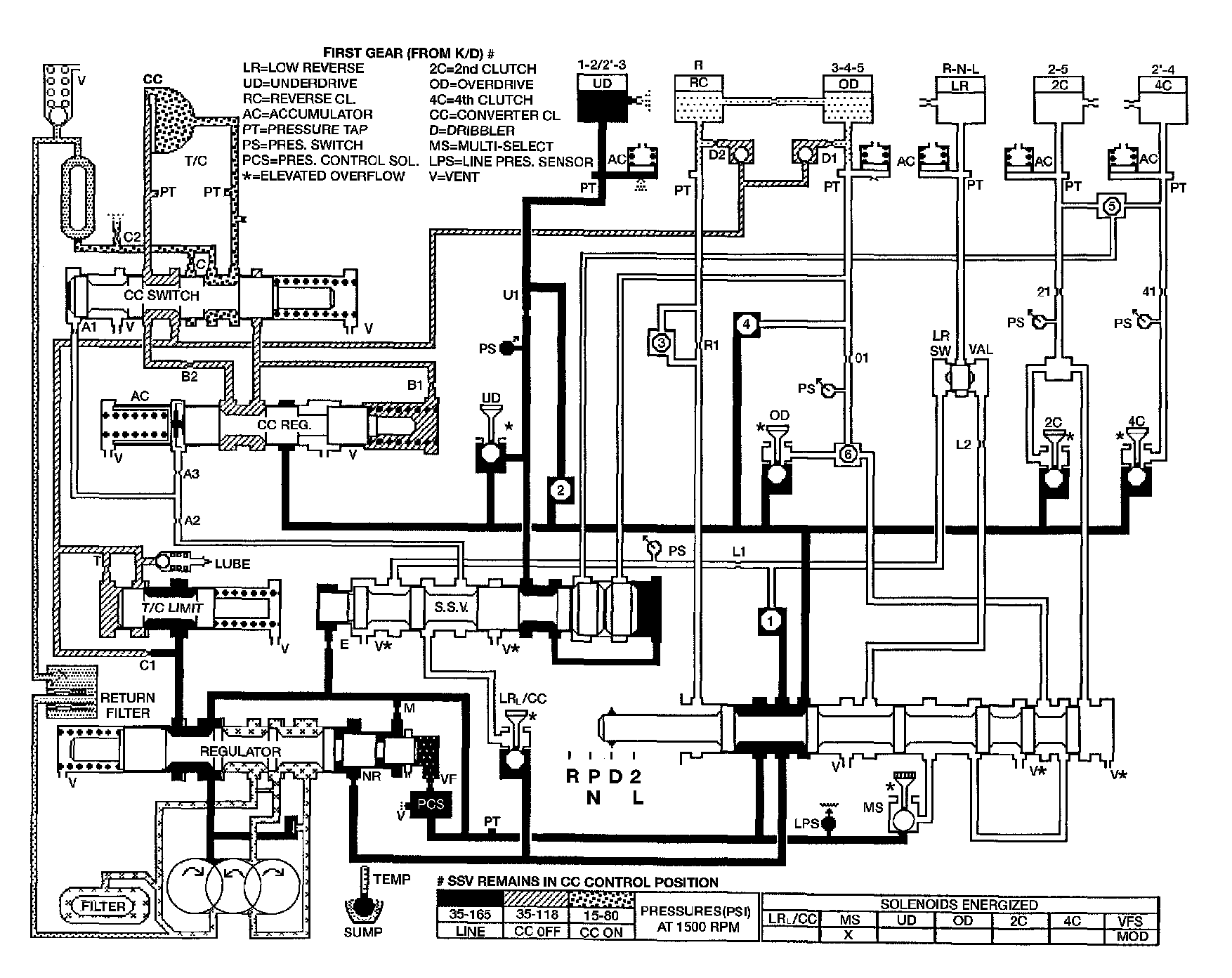

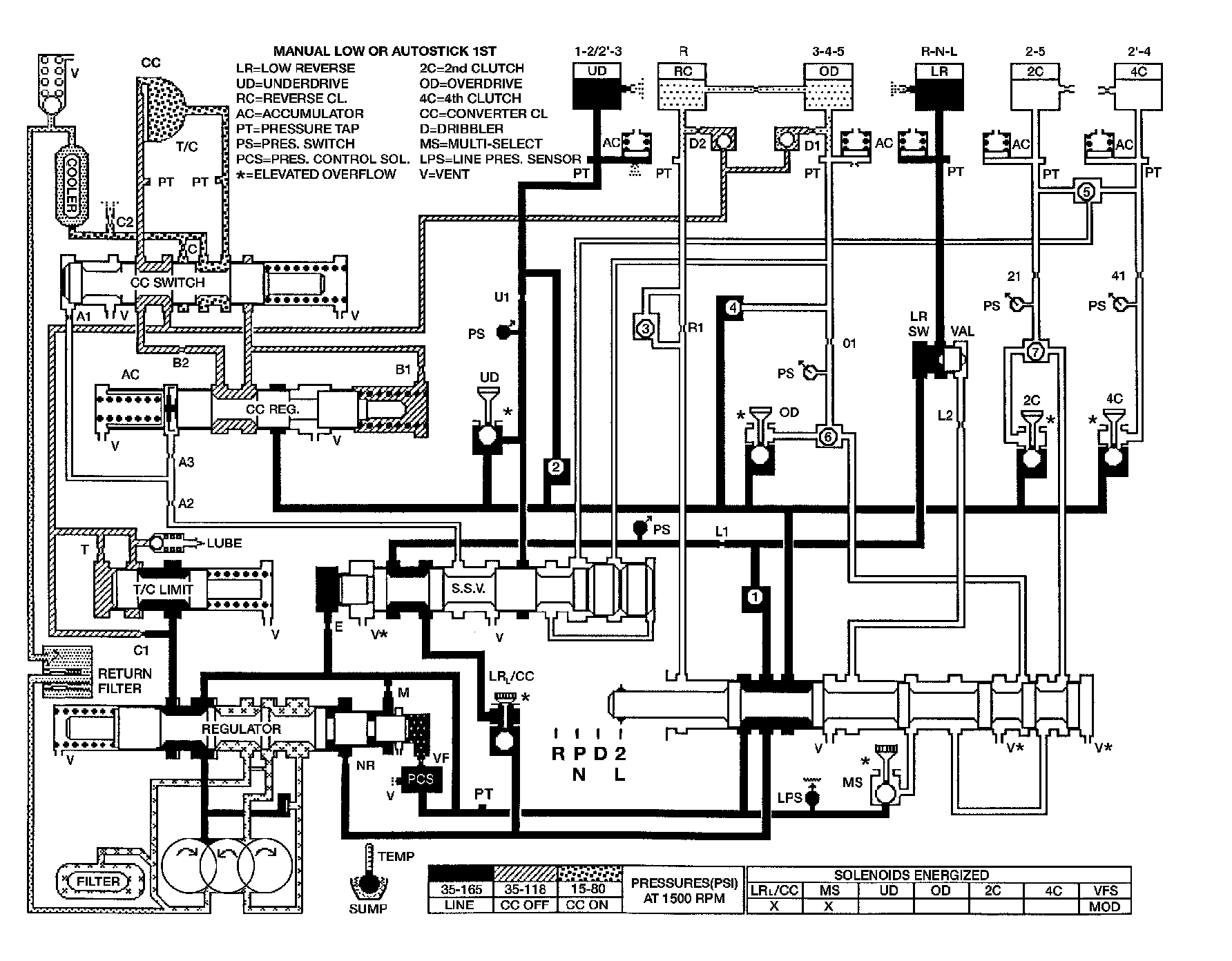

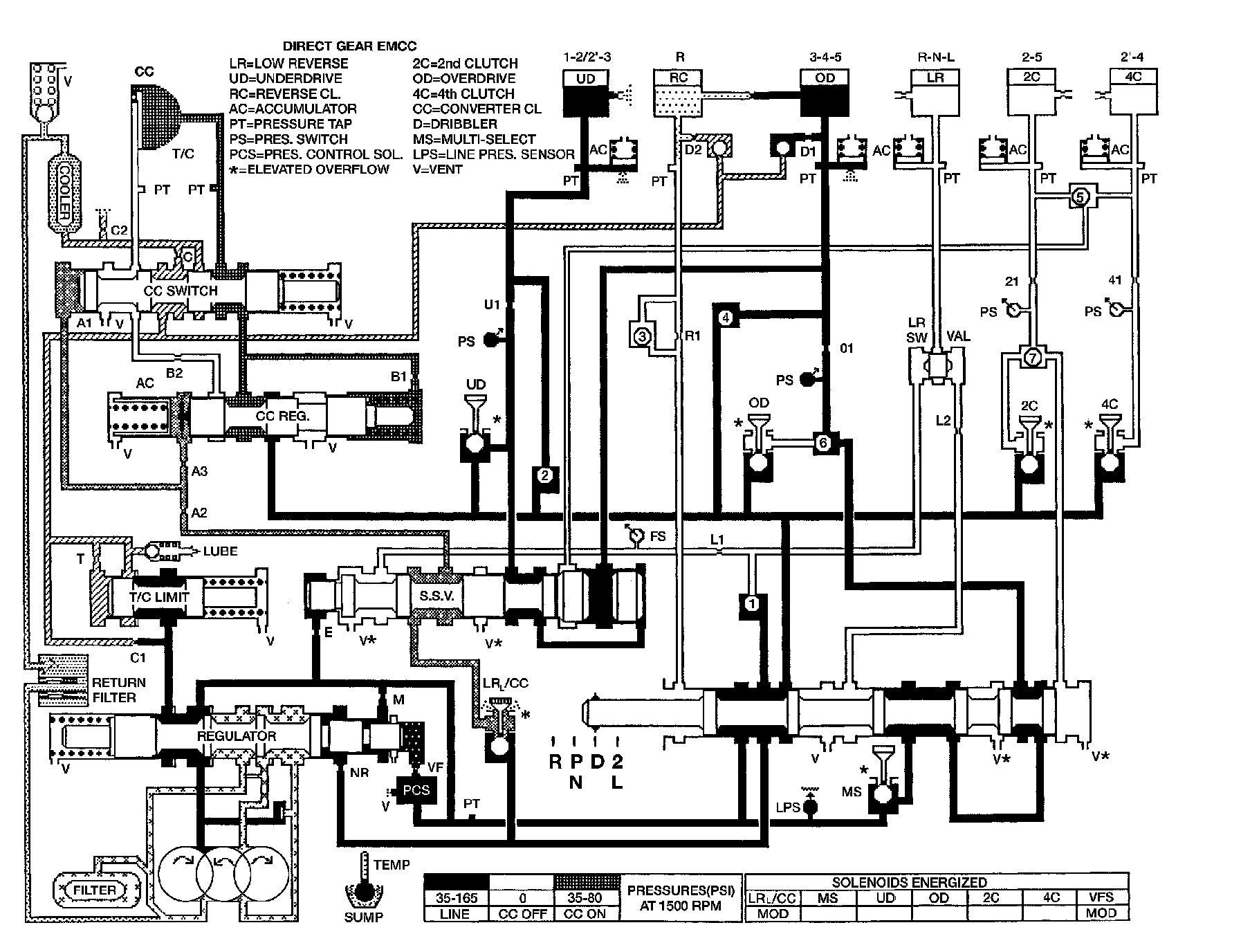

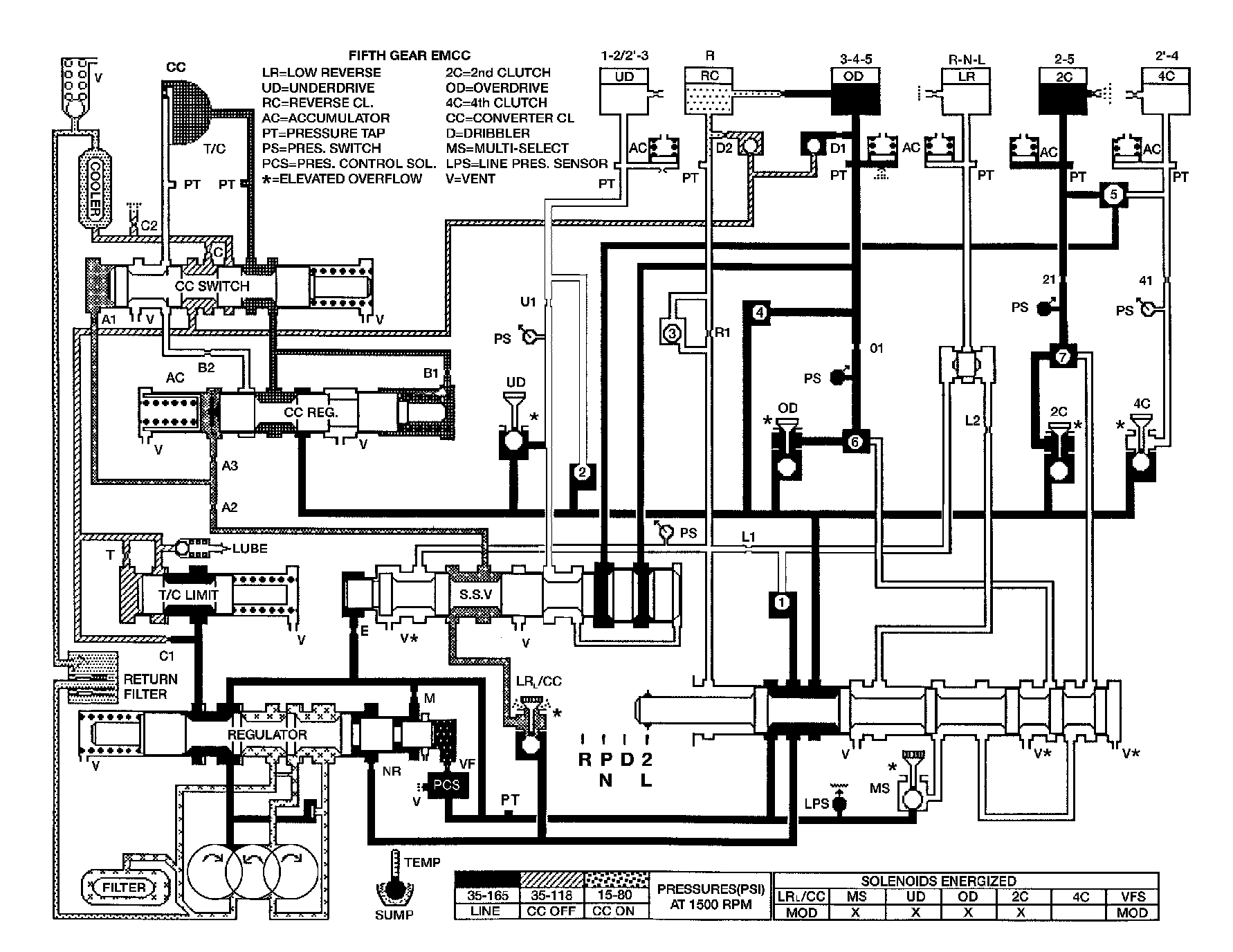

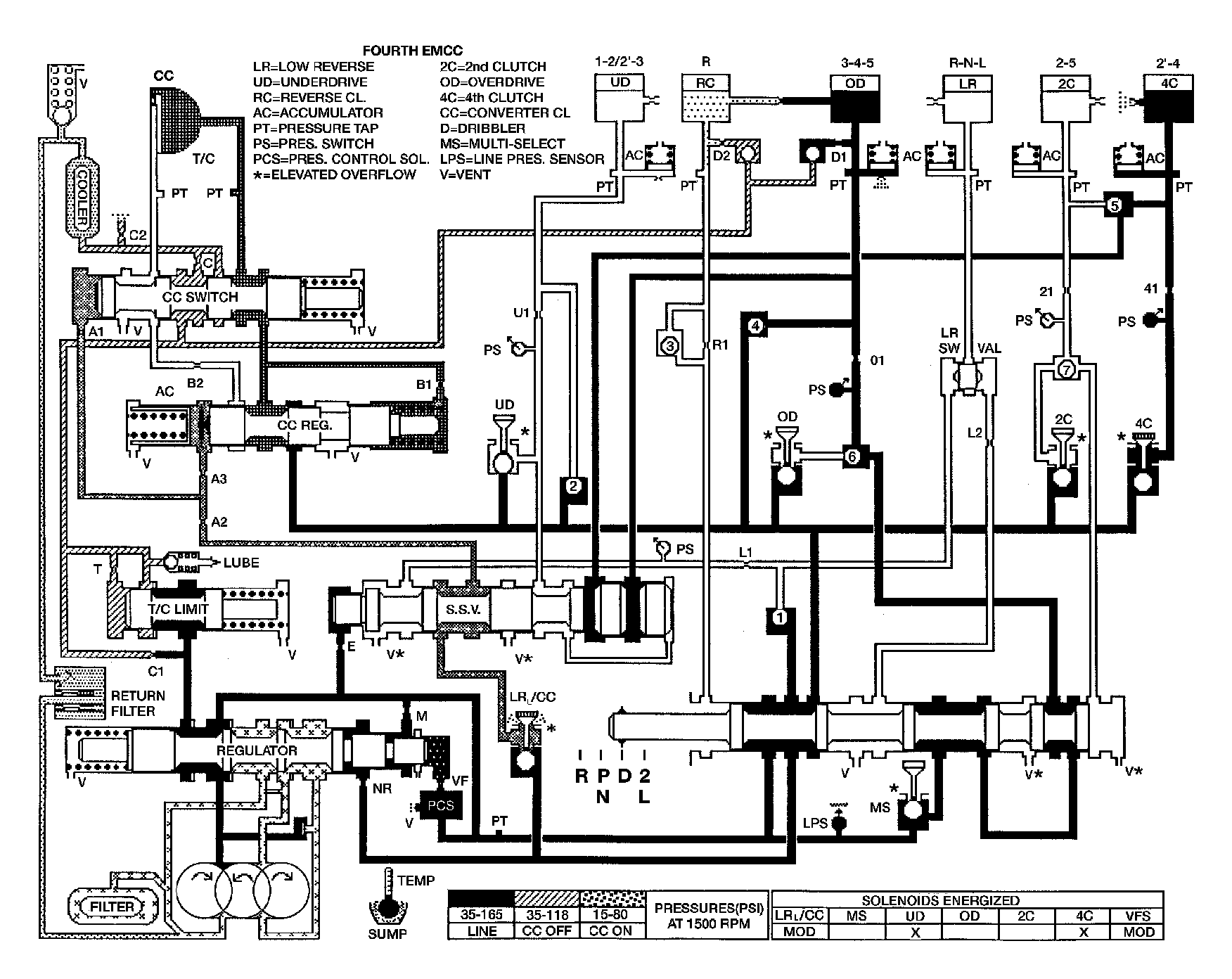

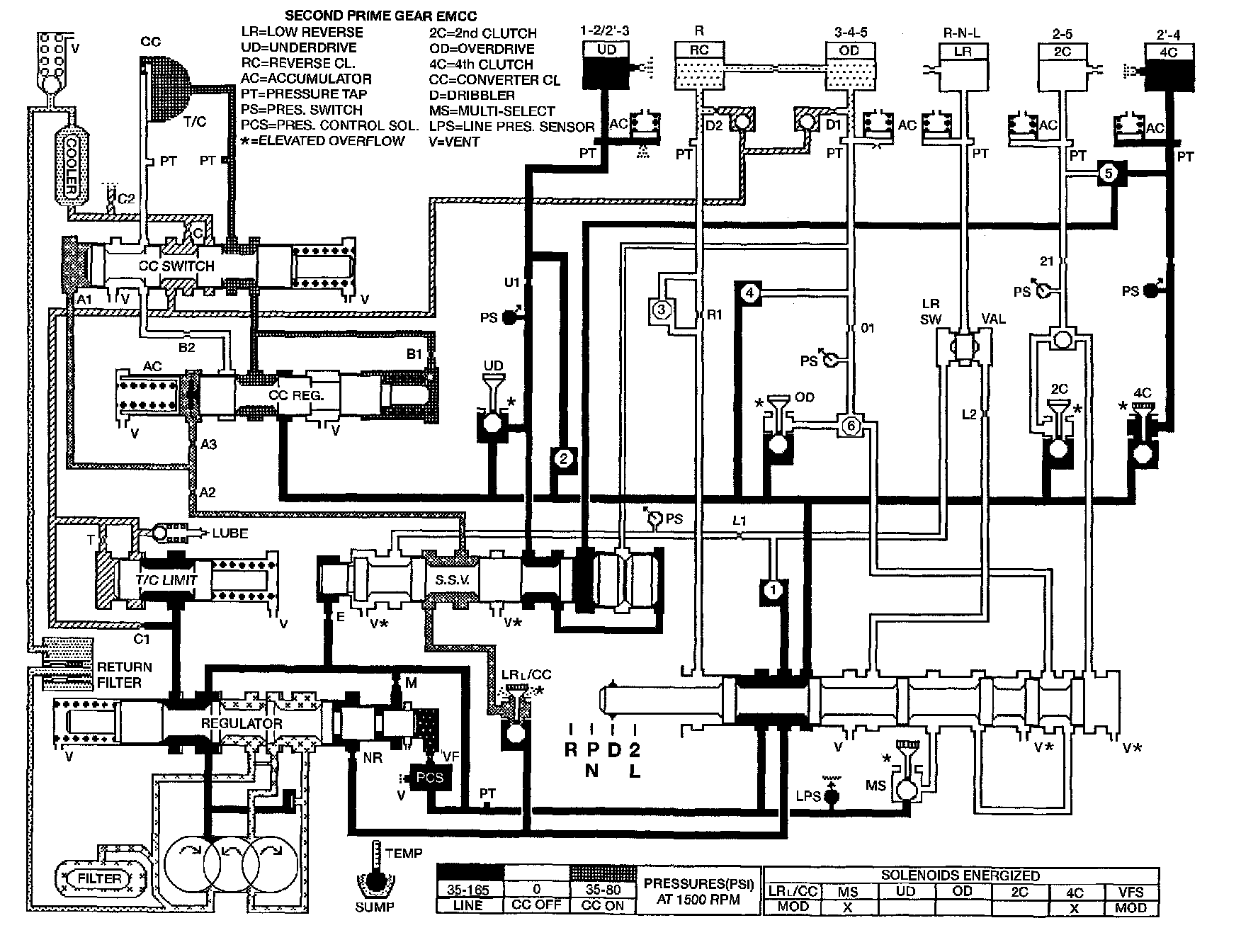

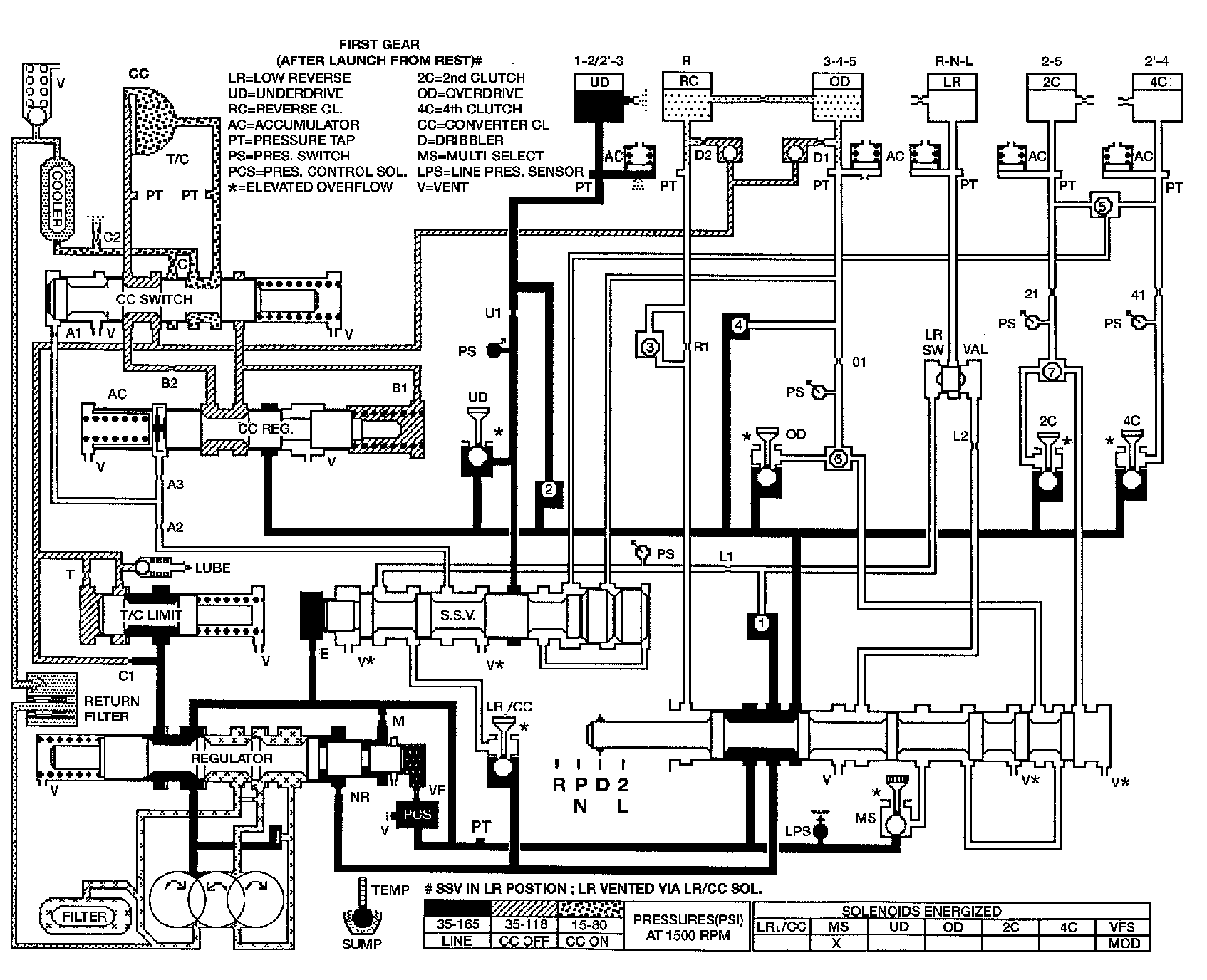

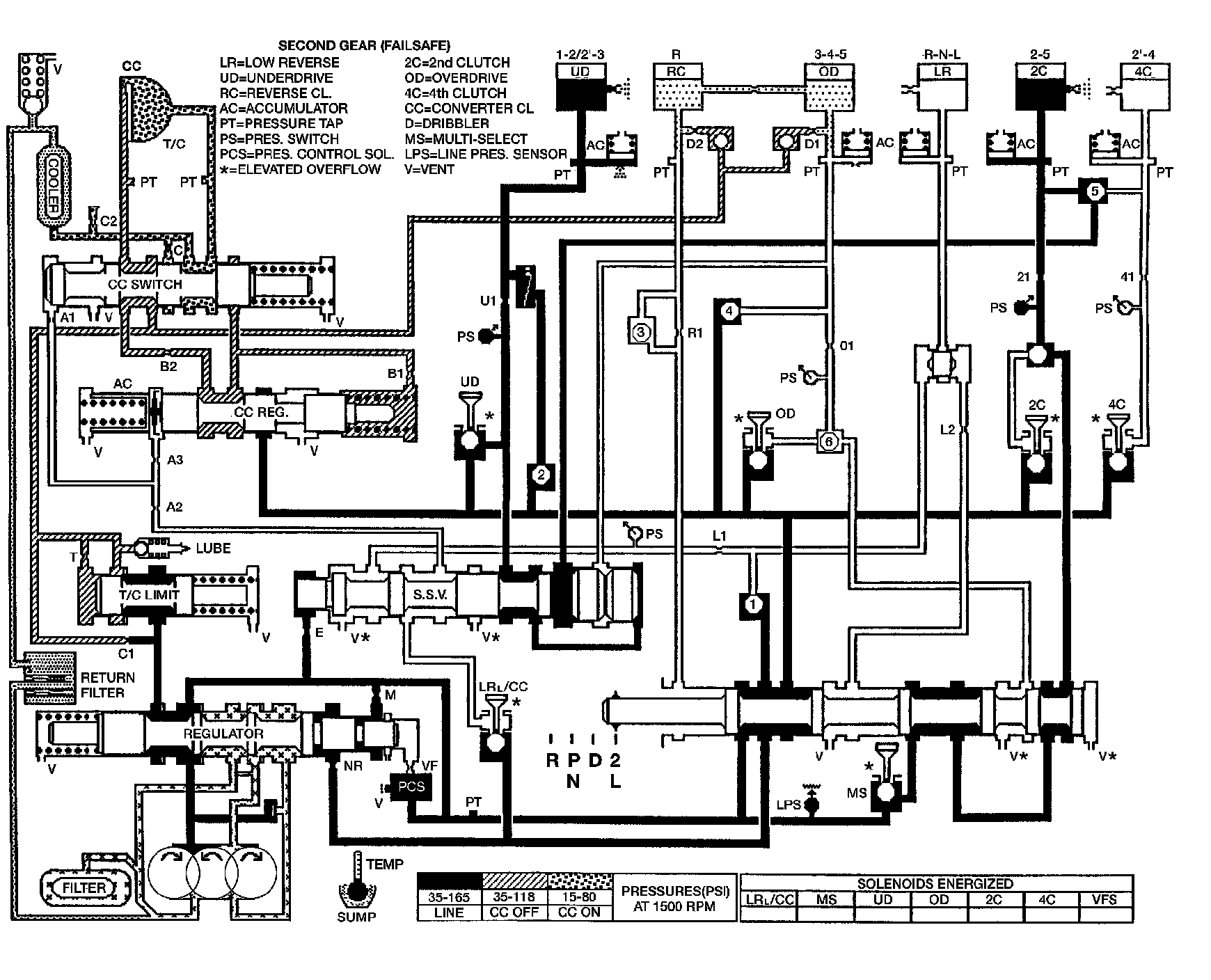

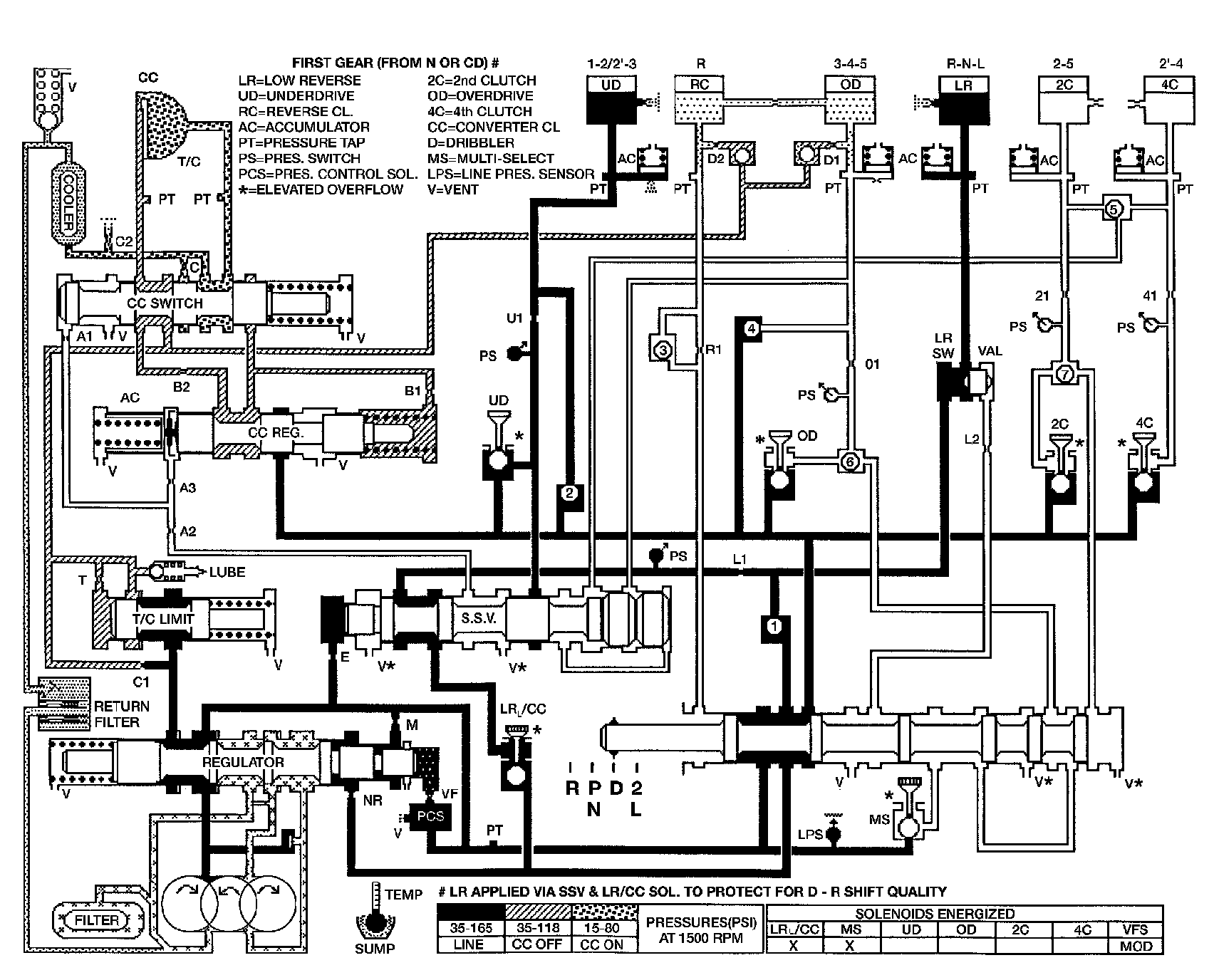

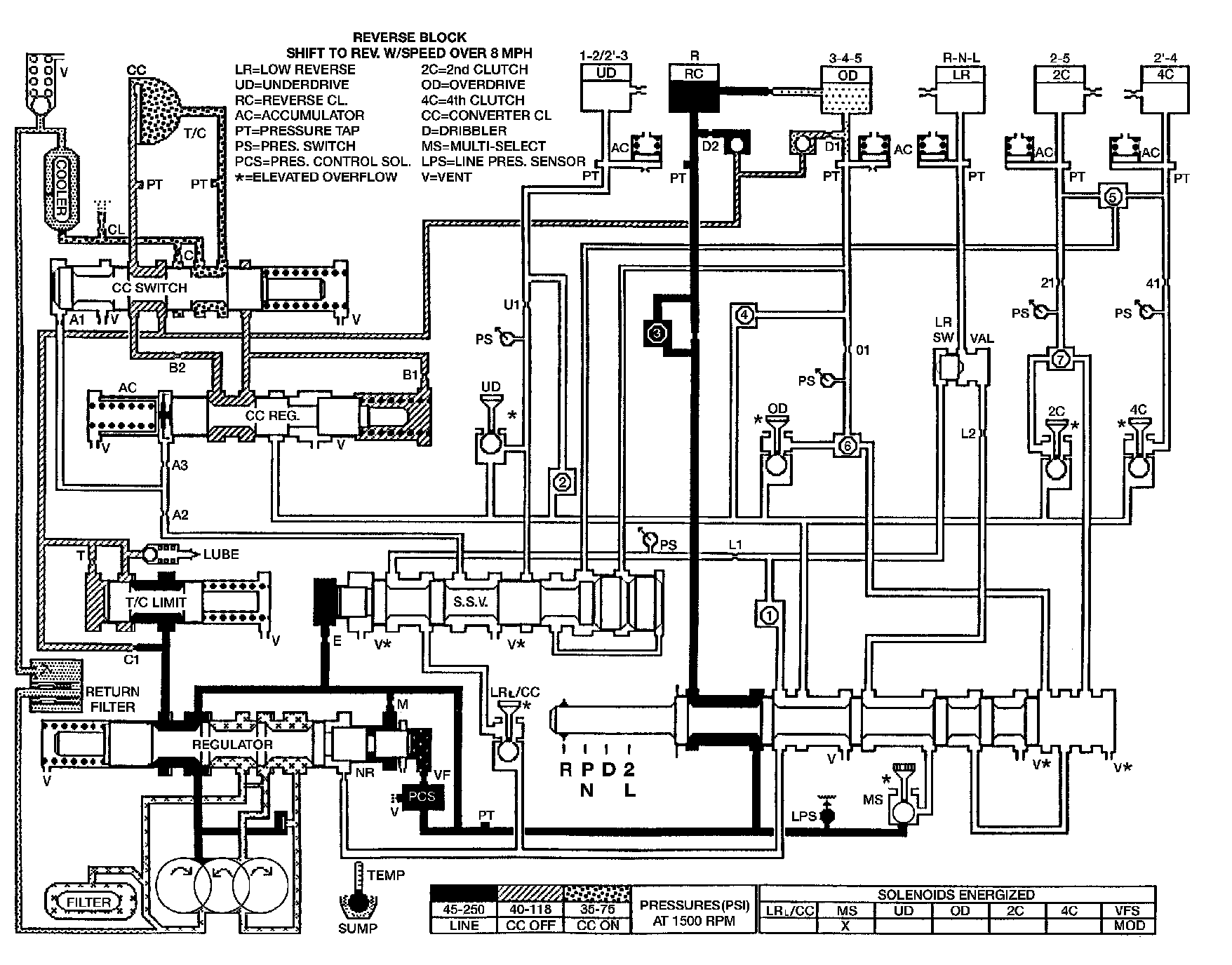

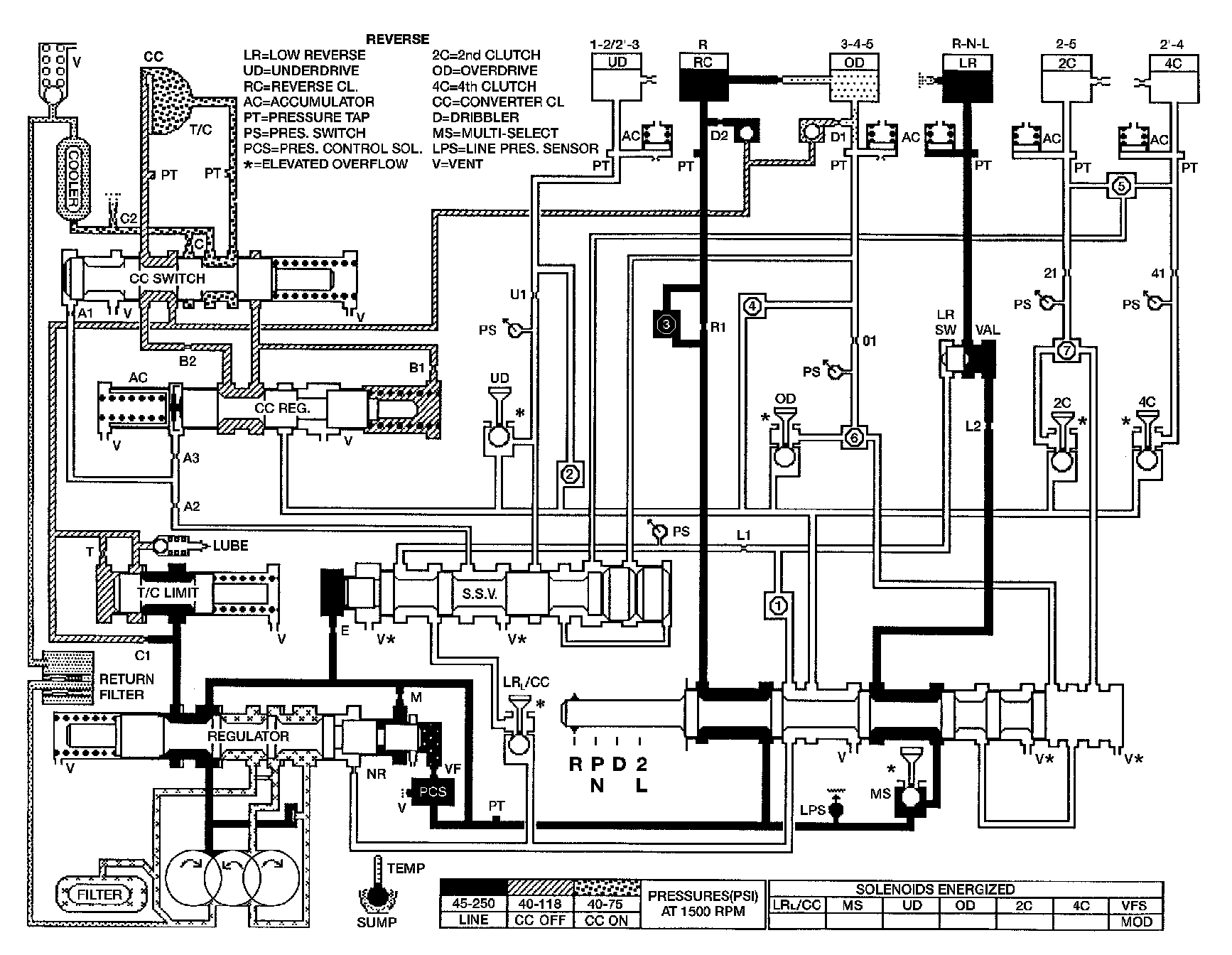

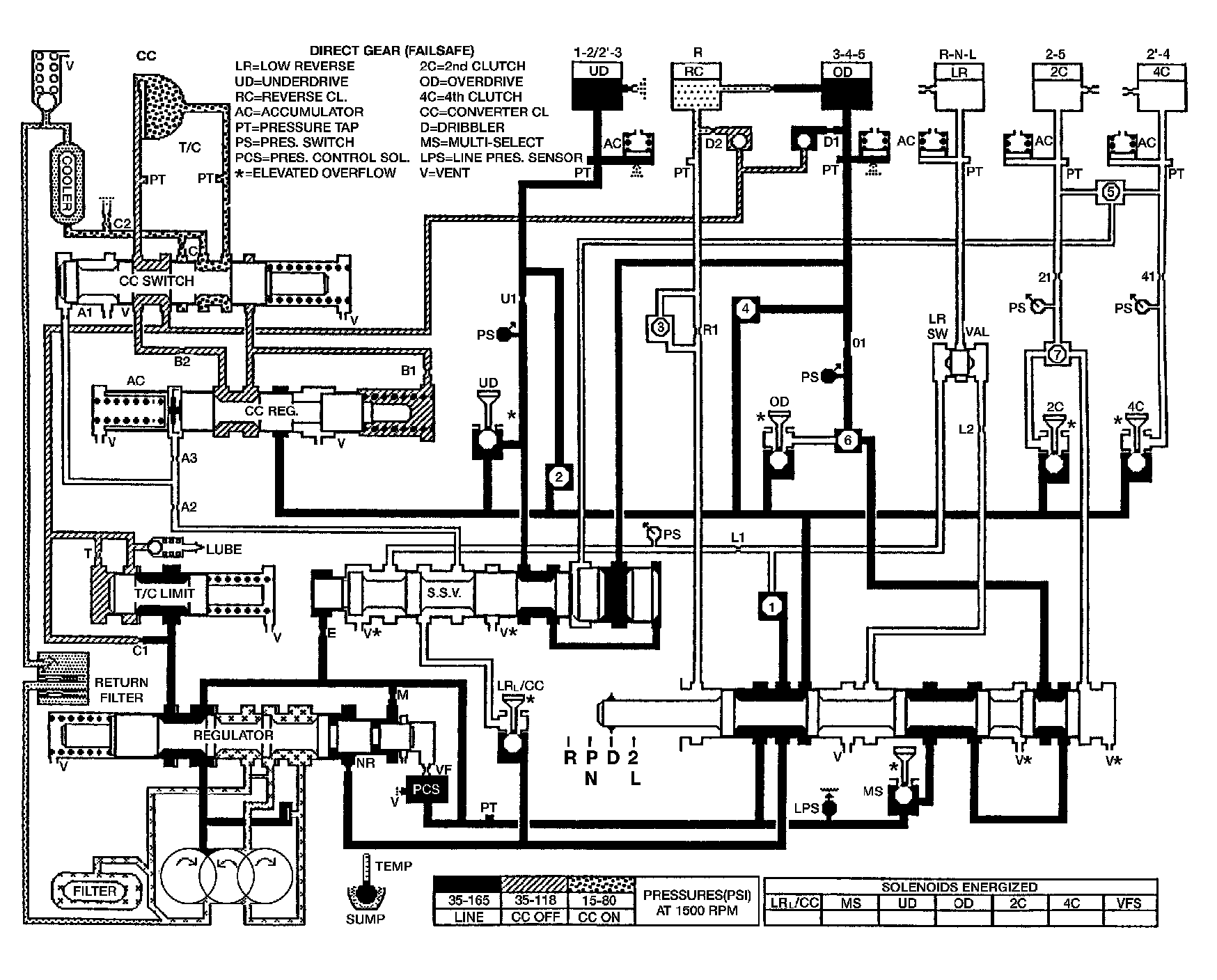

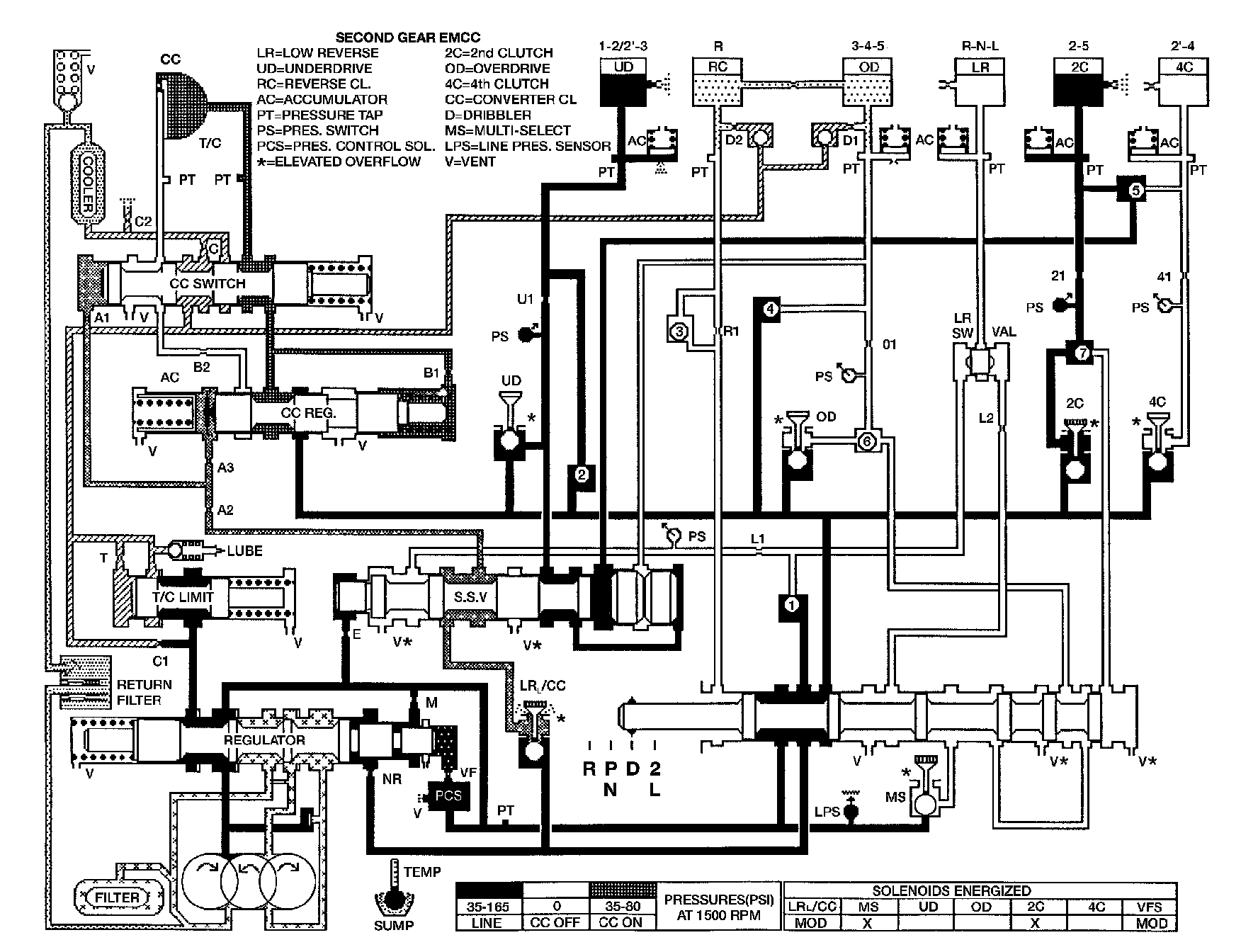

HYDRAULIC SCHEMATICS

Part 1 of 21

Part 2 of 21

Part 3 of 21

Part 4 of 21

Part 5 of 21

Part 6 of 21

Part 7 of 21

Part 8 of 21

Part 9 of 21

Part 10 of 21

Part 11 of 21

Part 12 of 21

Part 13 of 21

Part 14 of 21

Part 15 of 21

Part 16 of 21

Part 17 of 21

Part 18 of 21

Part 19 of 21

Part 20 of 21

Part 21 of 21
