Grand Cherokee 2WD Limited V8-4.7L
>>
Repair and Diagnosis
>>
Locations
>>
Splice Locations
>>
Figure 16
Figure 16

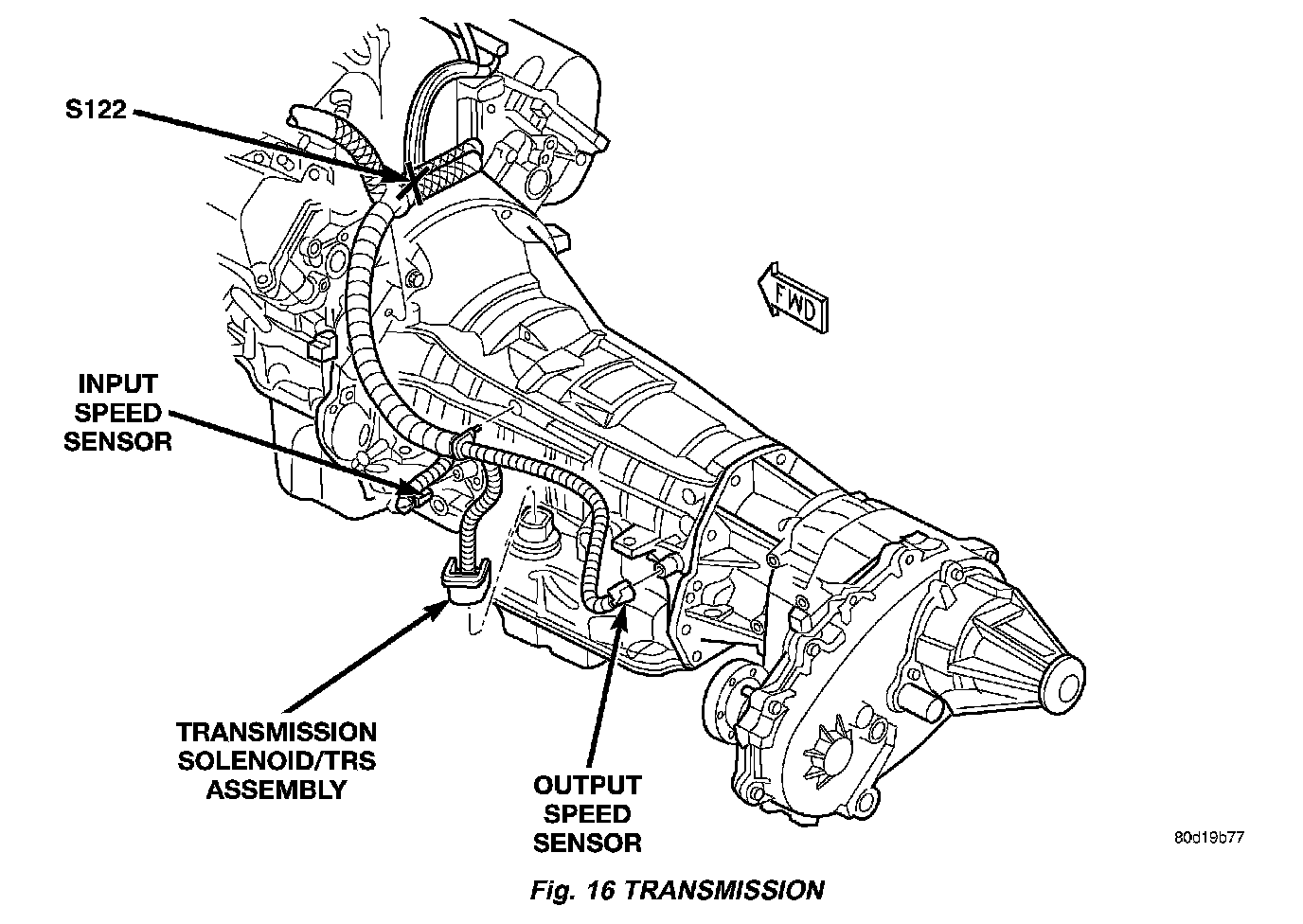

Fig.16 Transmission 4.7 Liter Engine Left Side:
