Battery Temperature Sensor: Locations

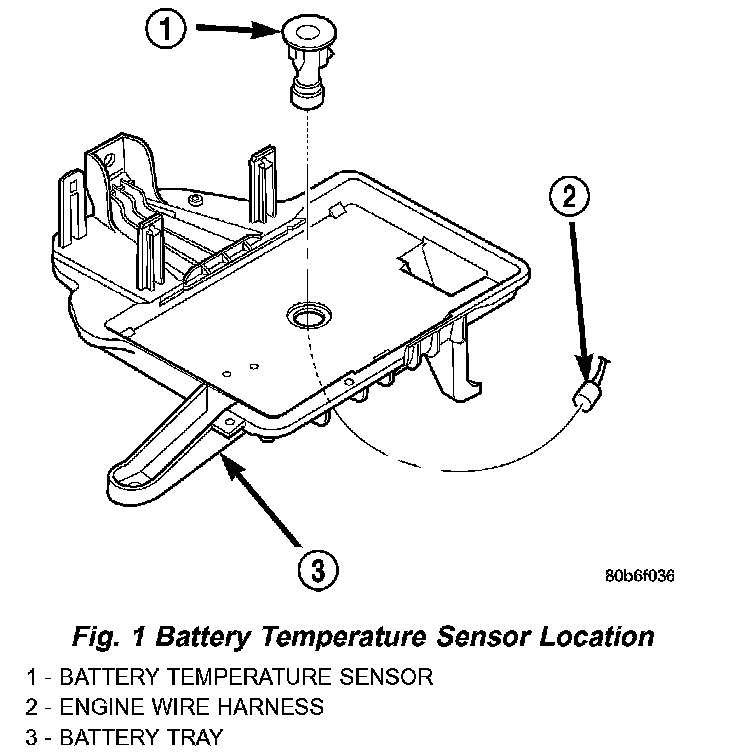

Fig.1 Battery Temperature Sensor Location:

The battery temperature sensor is located under the vehicle battery and is attached to a mounting hole on the battery tray.
