Chime Inoperative With Drivers Seat Belt Unfastened

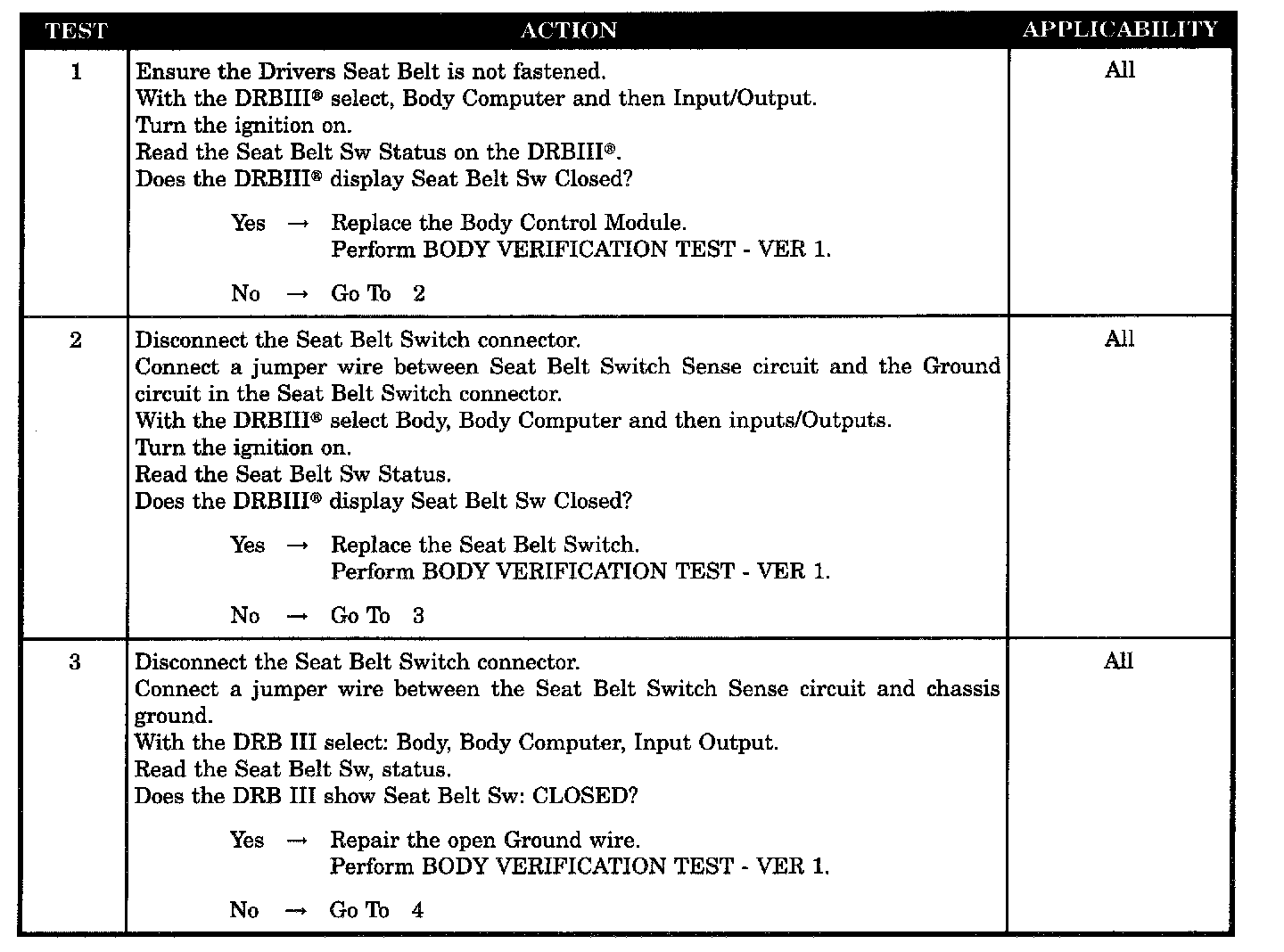

Tests 1 - 3:

Tests 4 - 5:

SYMPTOM
CHIME INOPERATIVE WITH DRIVERS SEAT BELT UNFASTENED

POSSIBLE CAUSES
- Seat belt status incorrect on DRB
- Seat belt switch open
- Ground wire open
- Junction block - seat belt switch sense open
- Seat belt switch sense wire open
