Electrical Diagrams

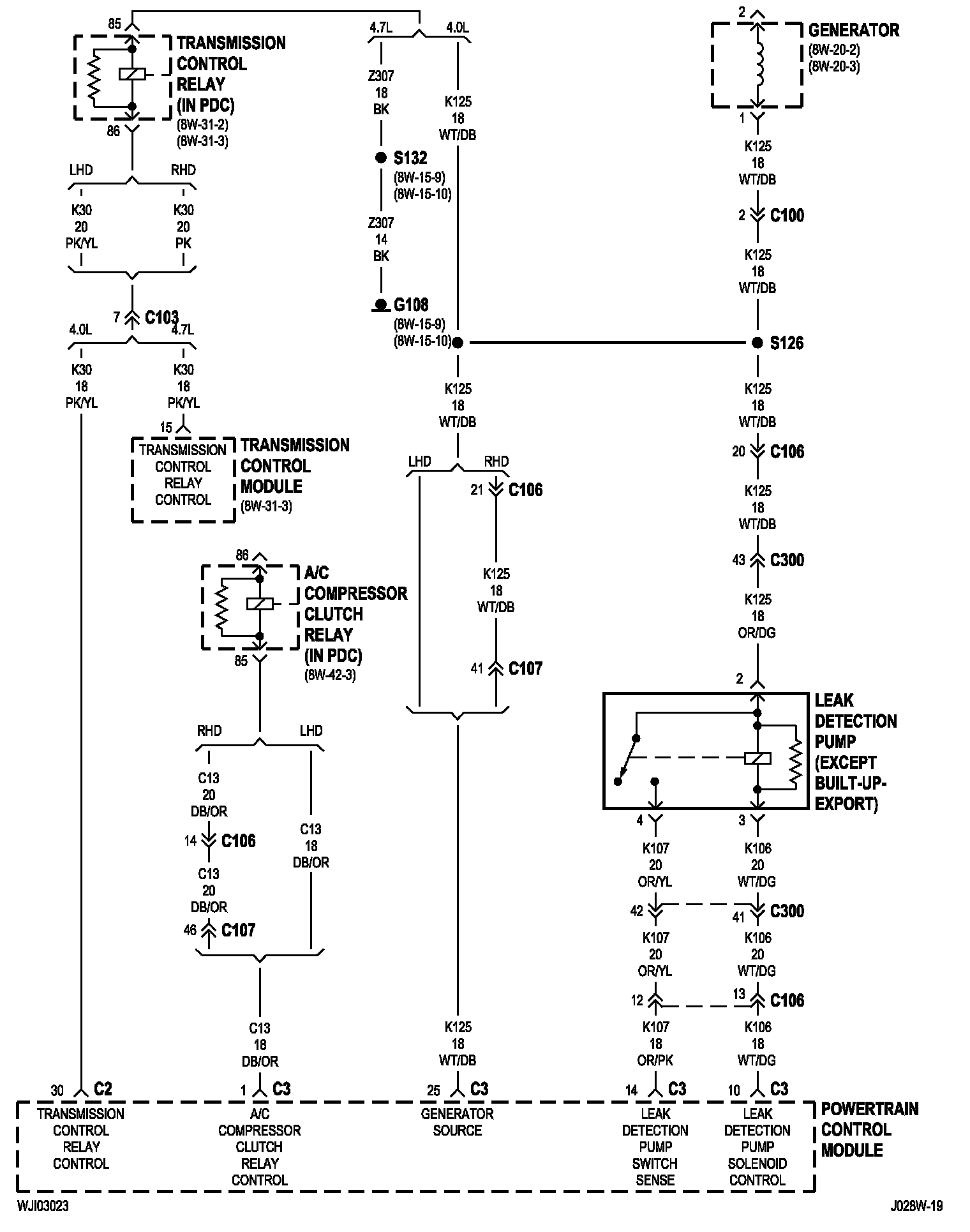

8w-30-2:

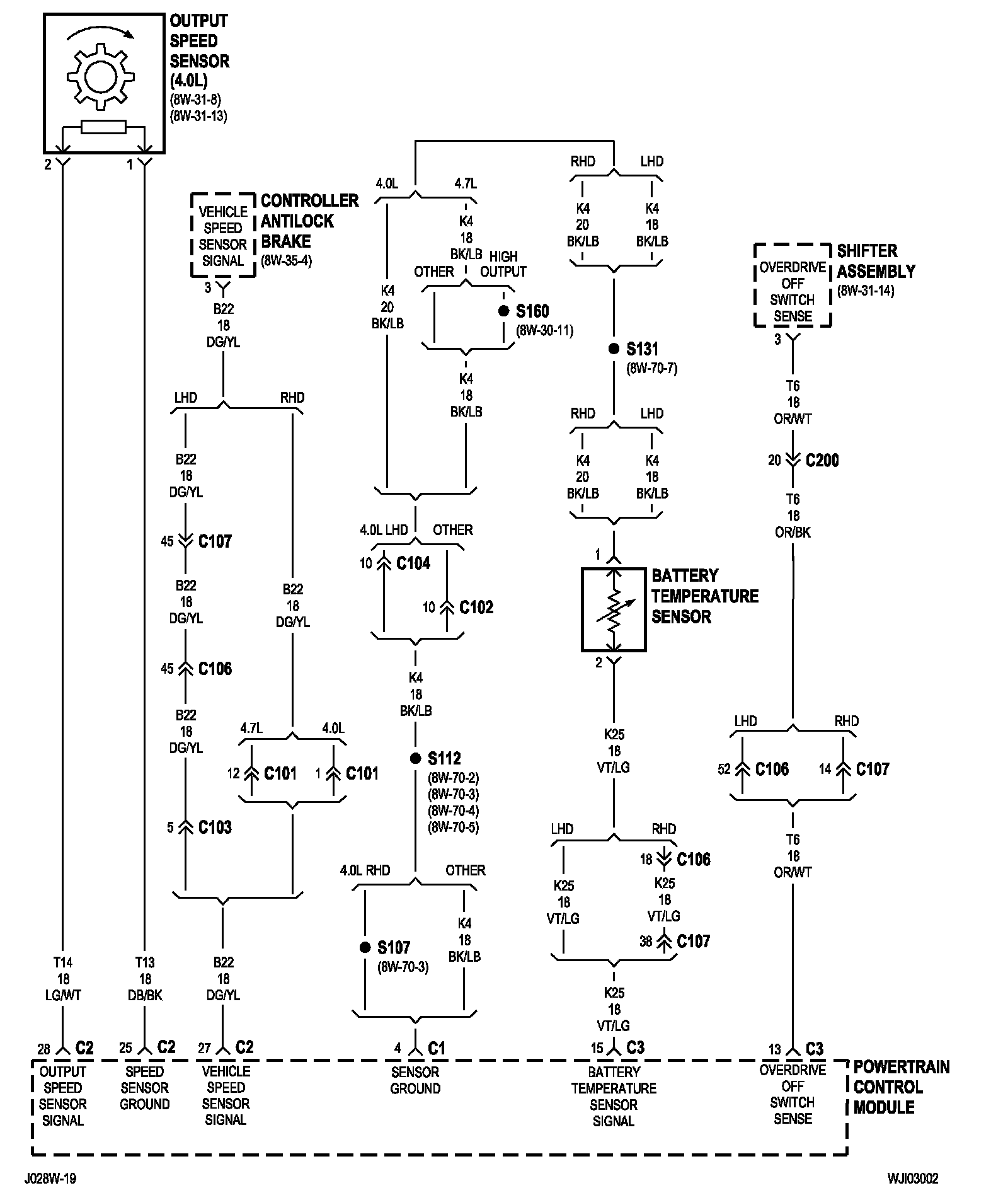

8w-30-3:

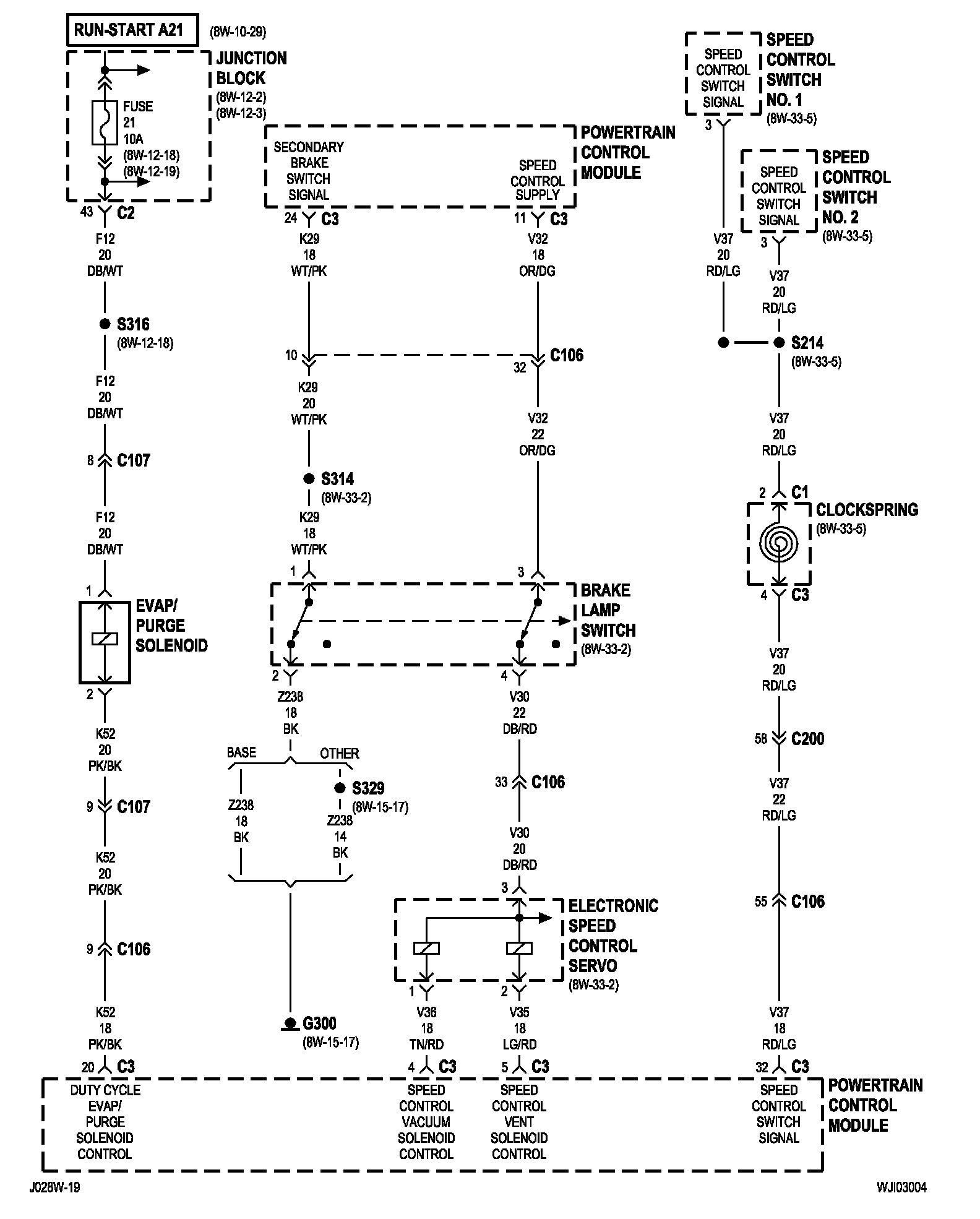

8w-30-4 (LHD):

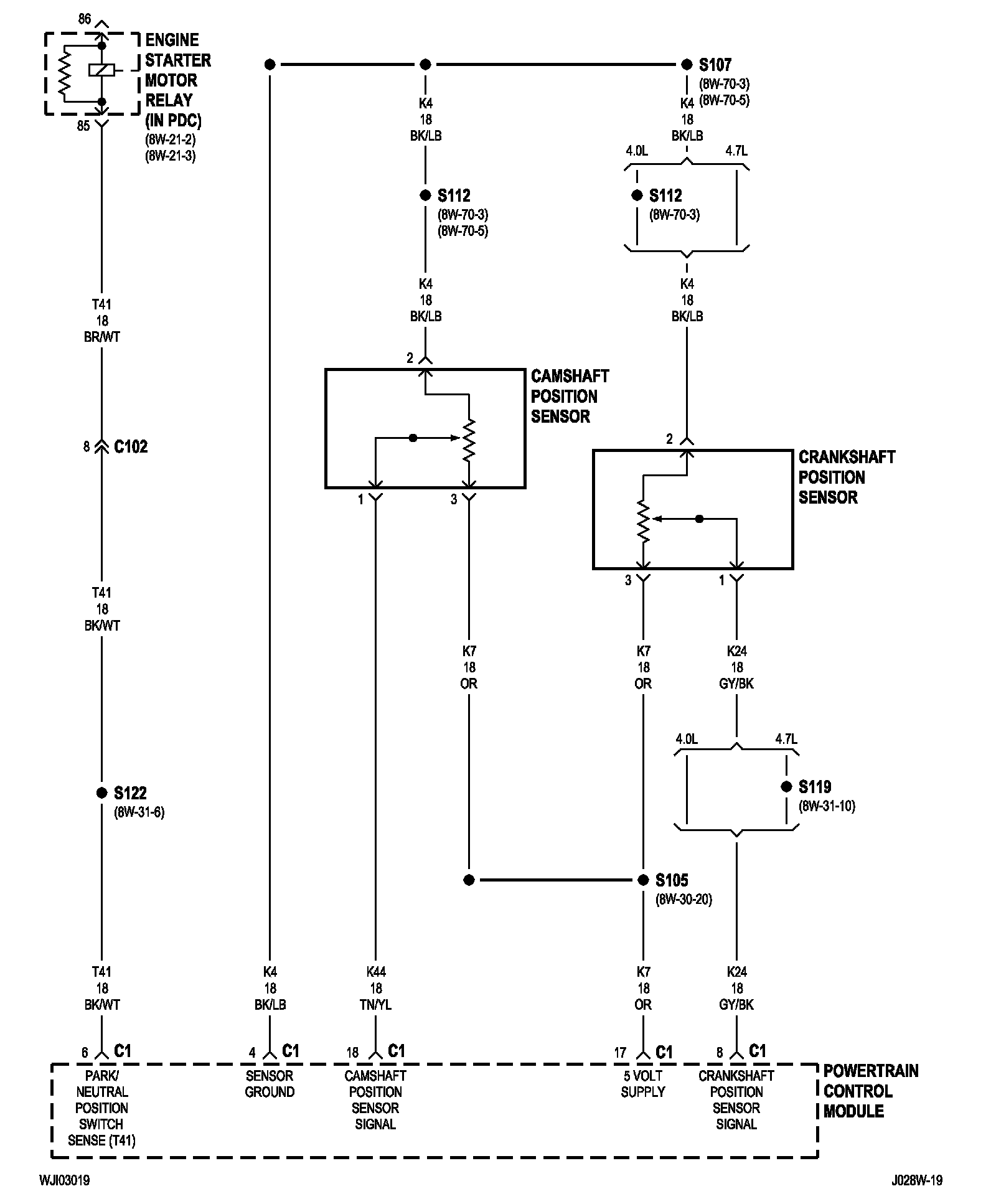

8w-30-5 (RHD):

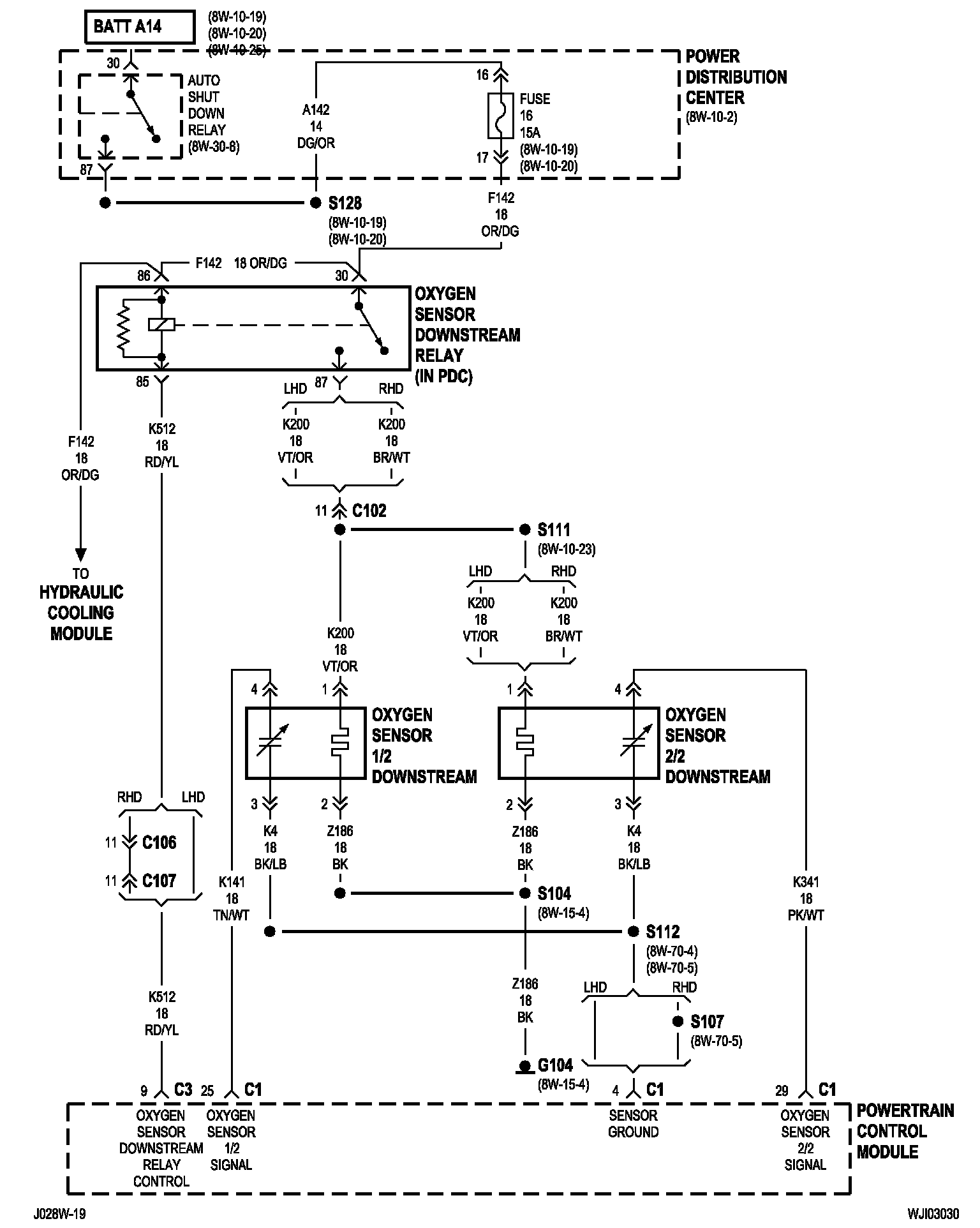

8w-30-6 (LHD):

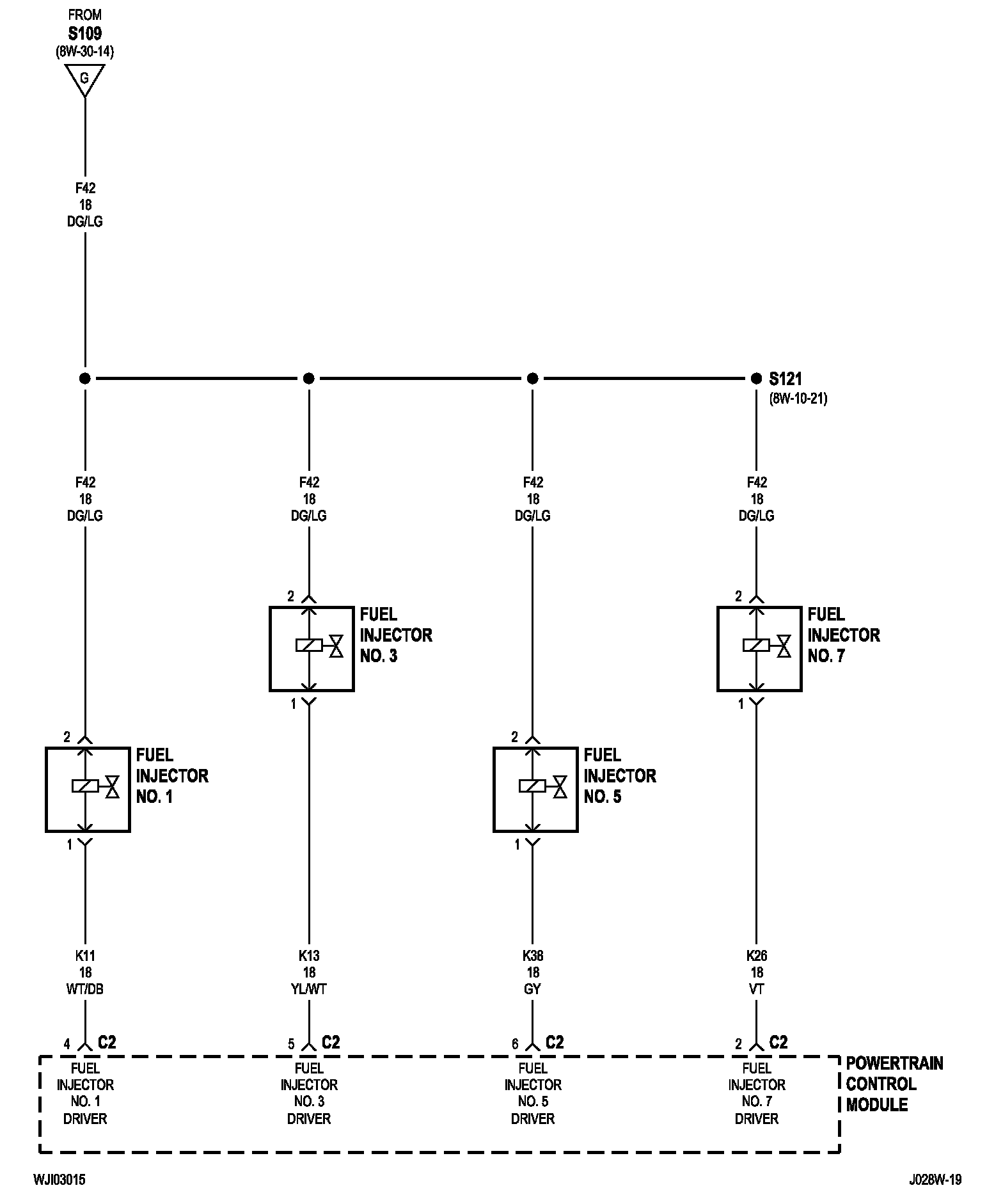

8w-30-7 (RHD):

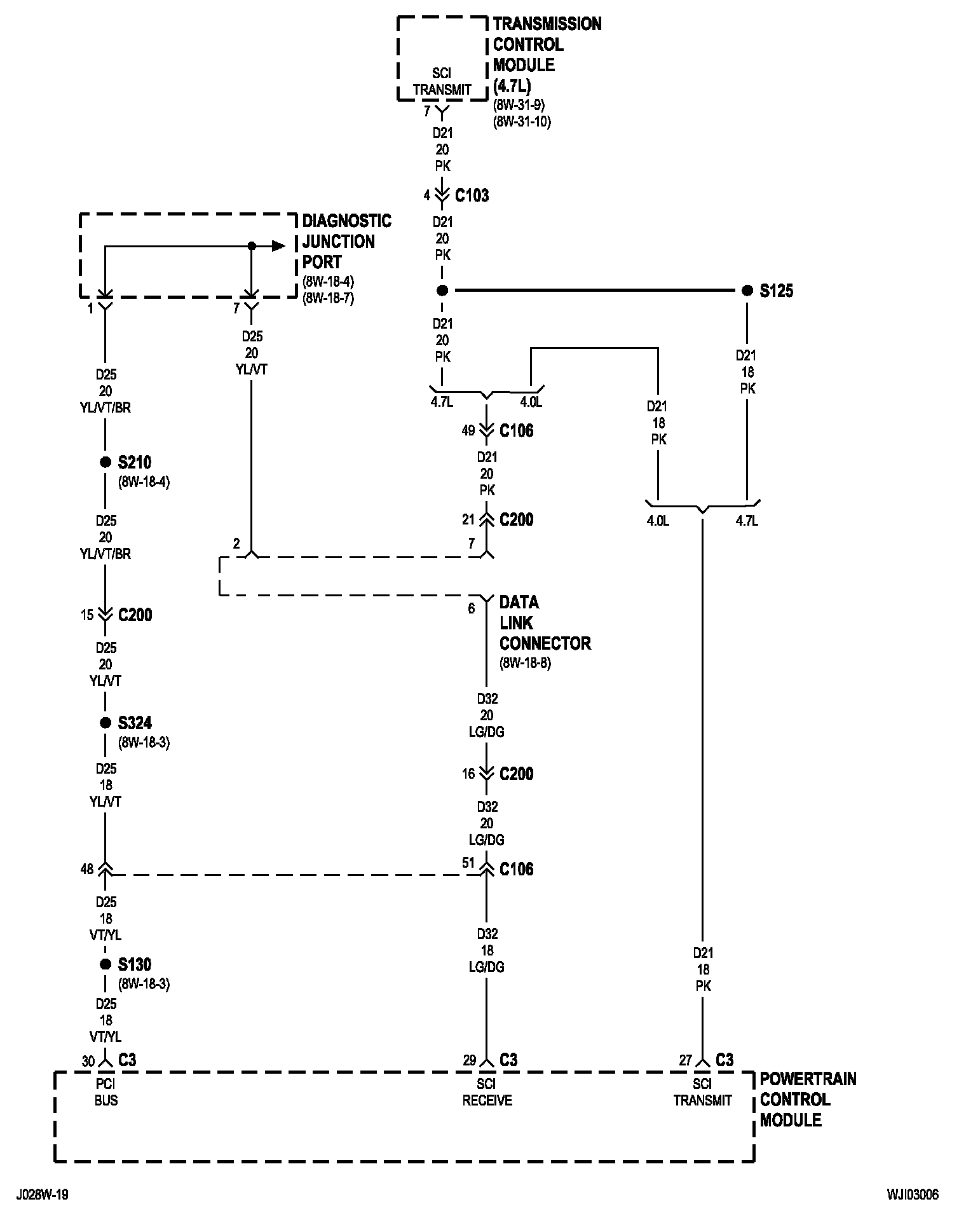

8w-30-8:

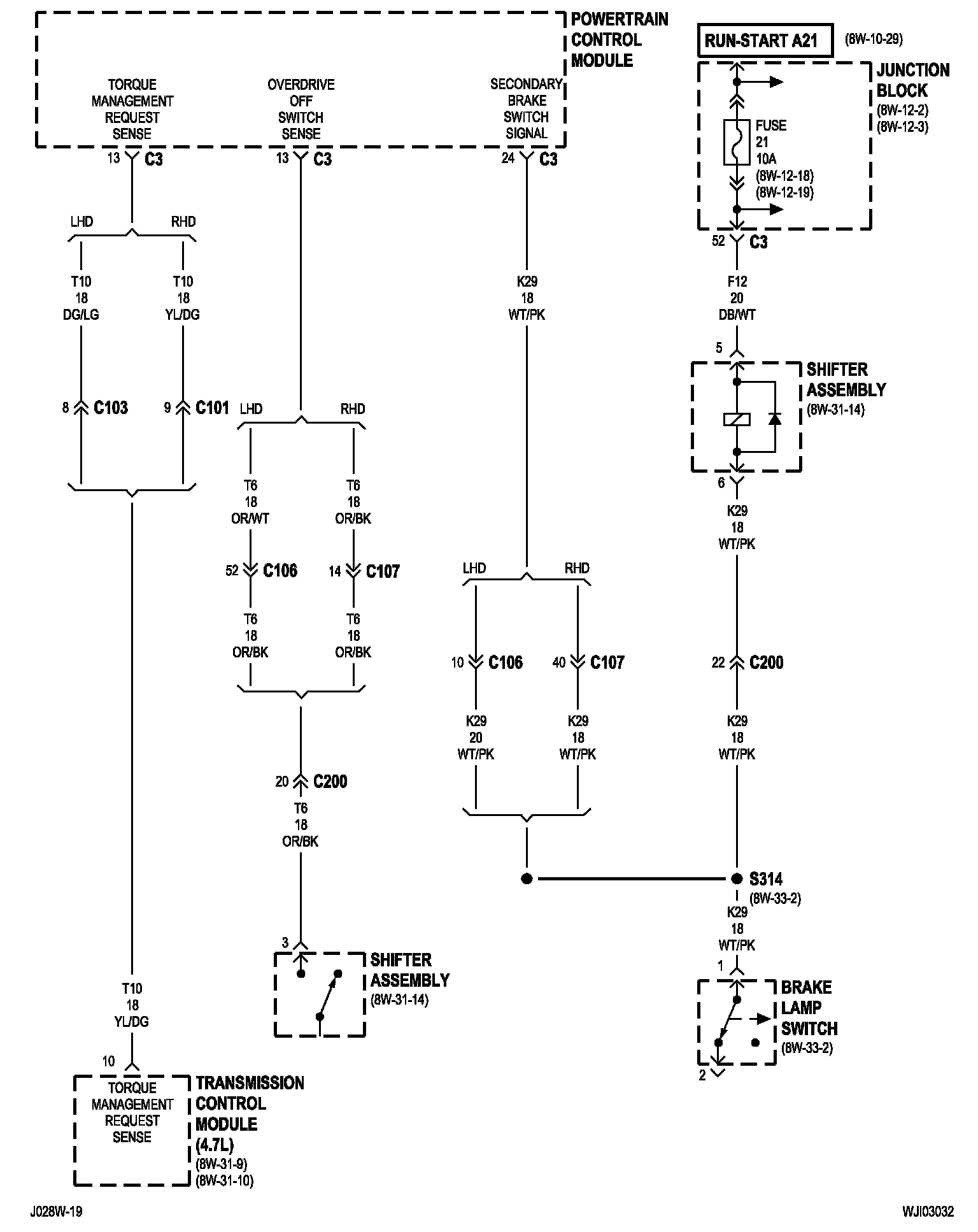

8w-30-9:

8w-30-10:

8w-30-11 (High Output):

8w-30-12:

8w-30-13:

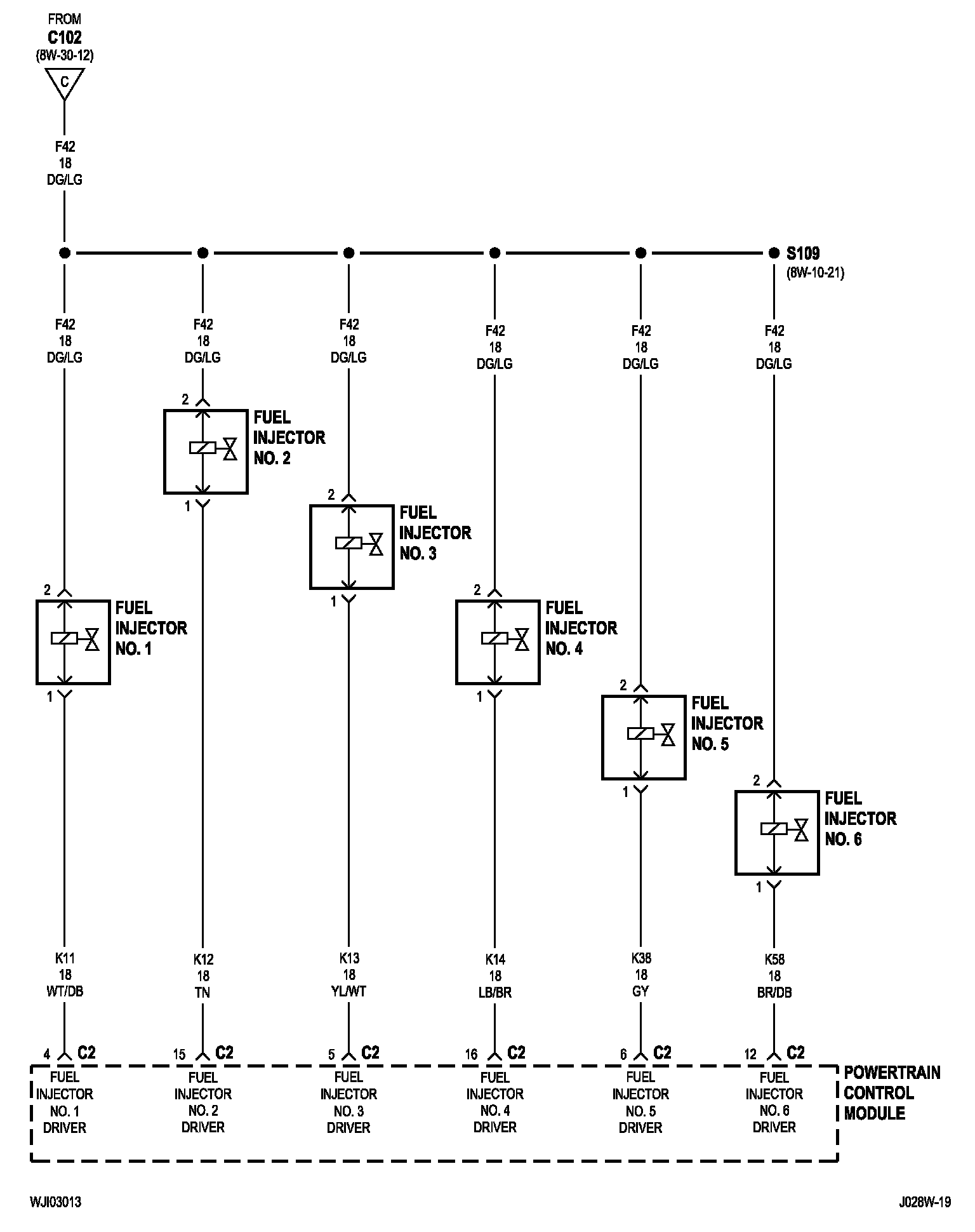

8w-30-14:

8w-30-15:

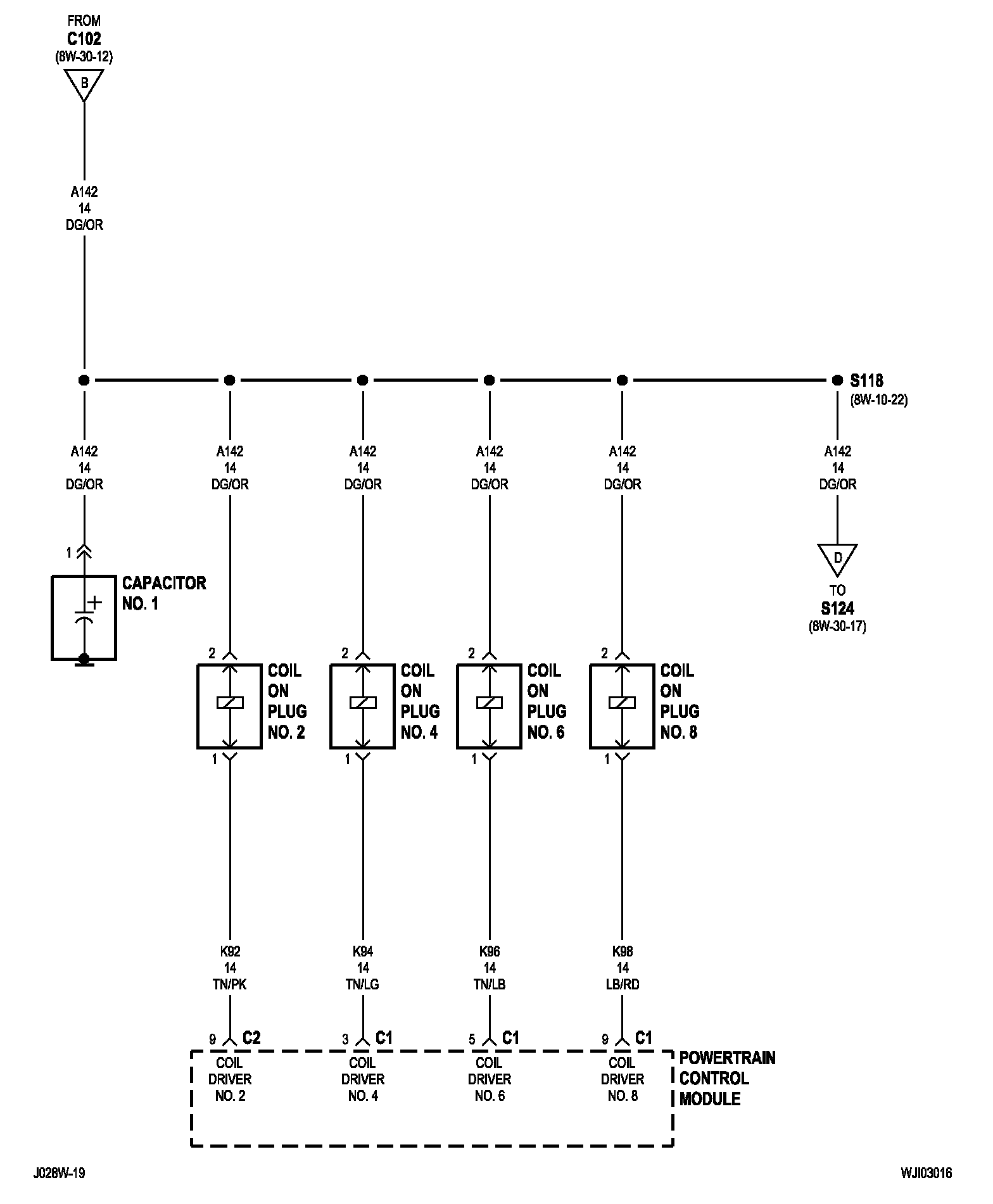

8w-30-16:

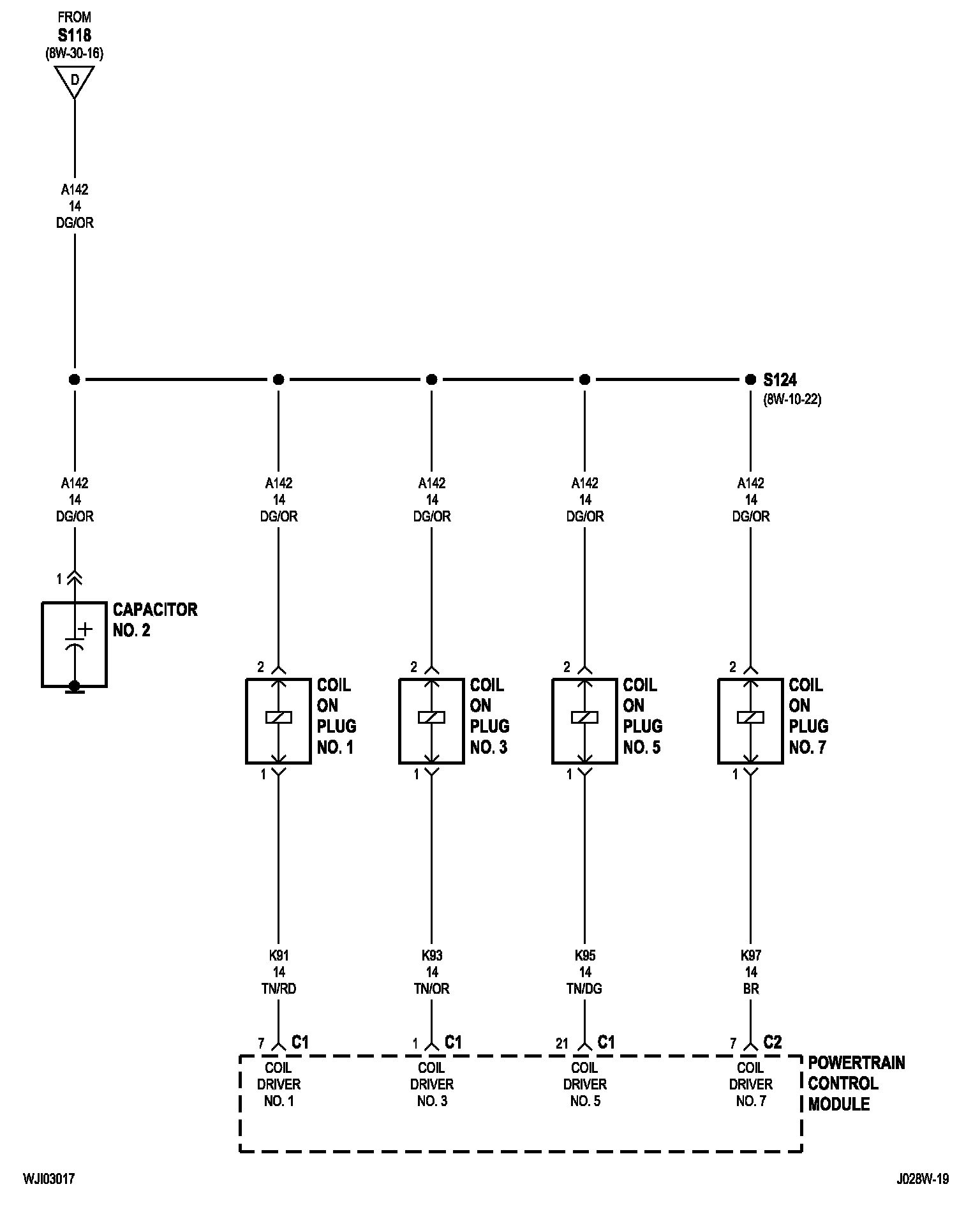

8w-30-17:

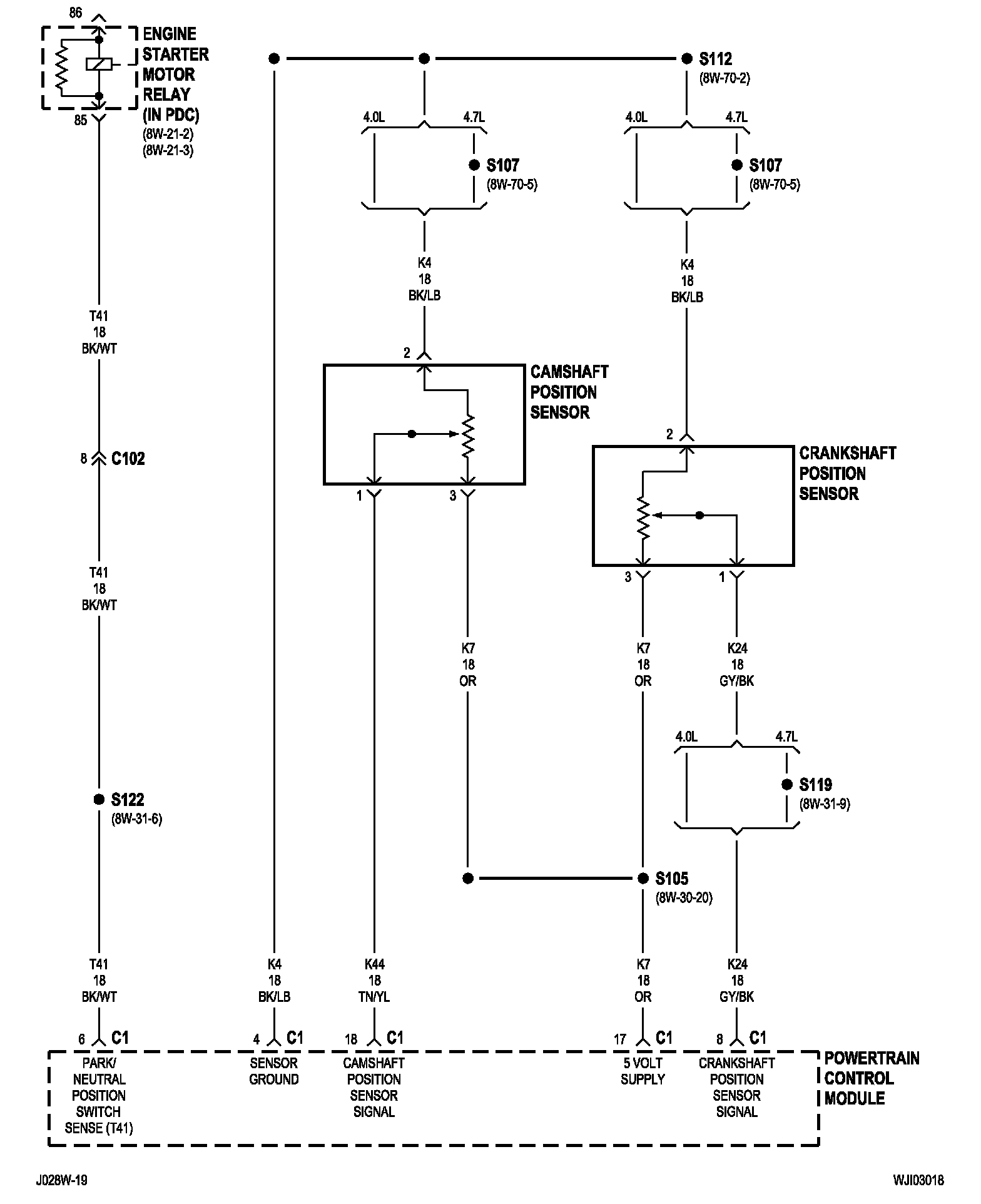

8w-30-18:

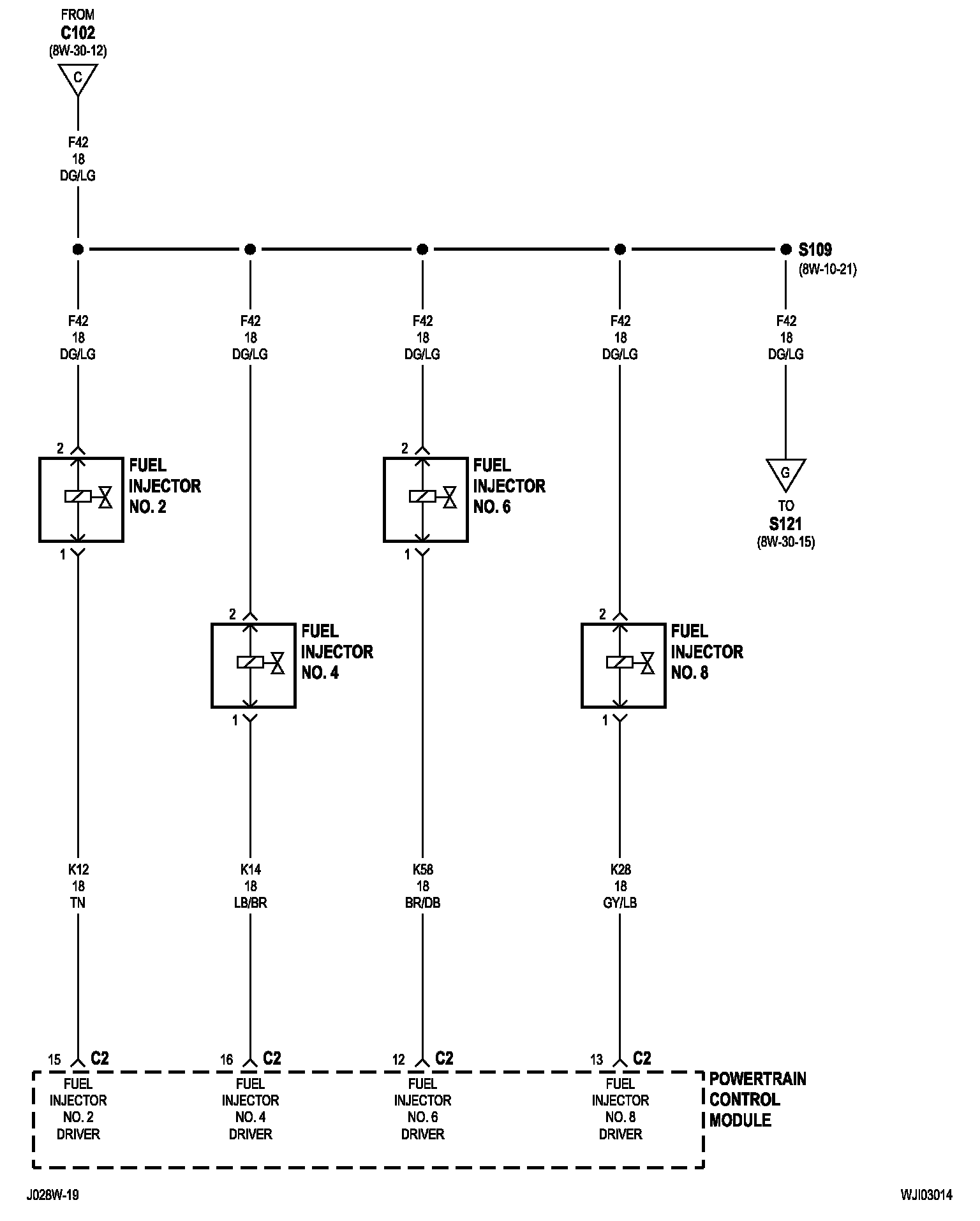

8w-30-19 (LHD):

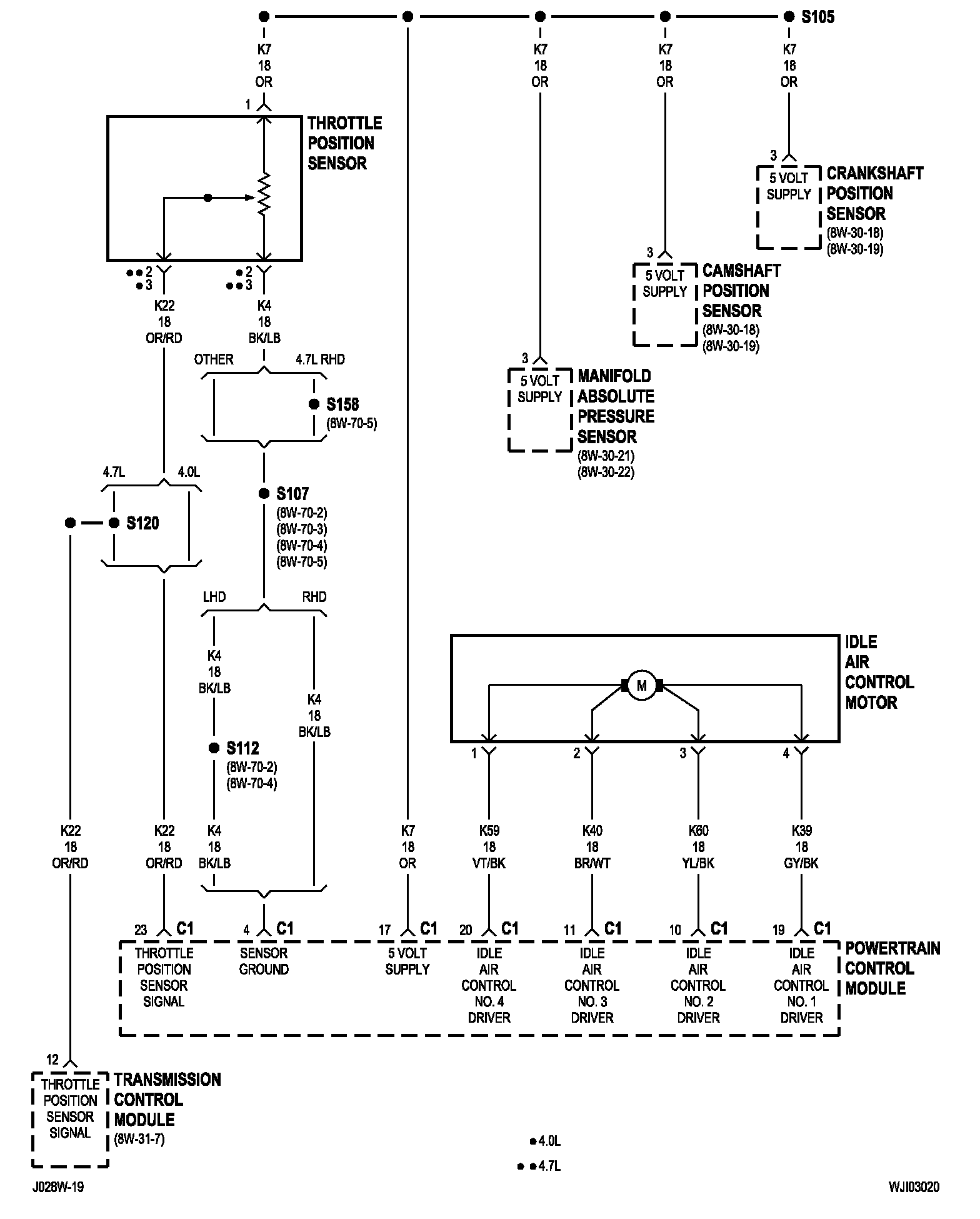

8w-30-20:

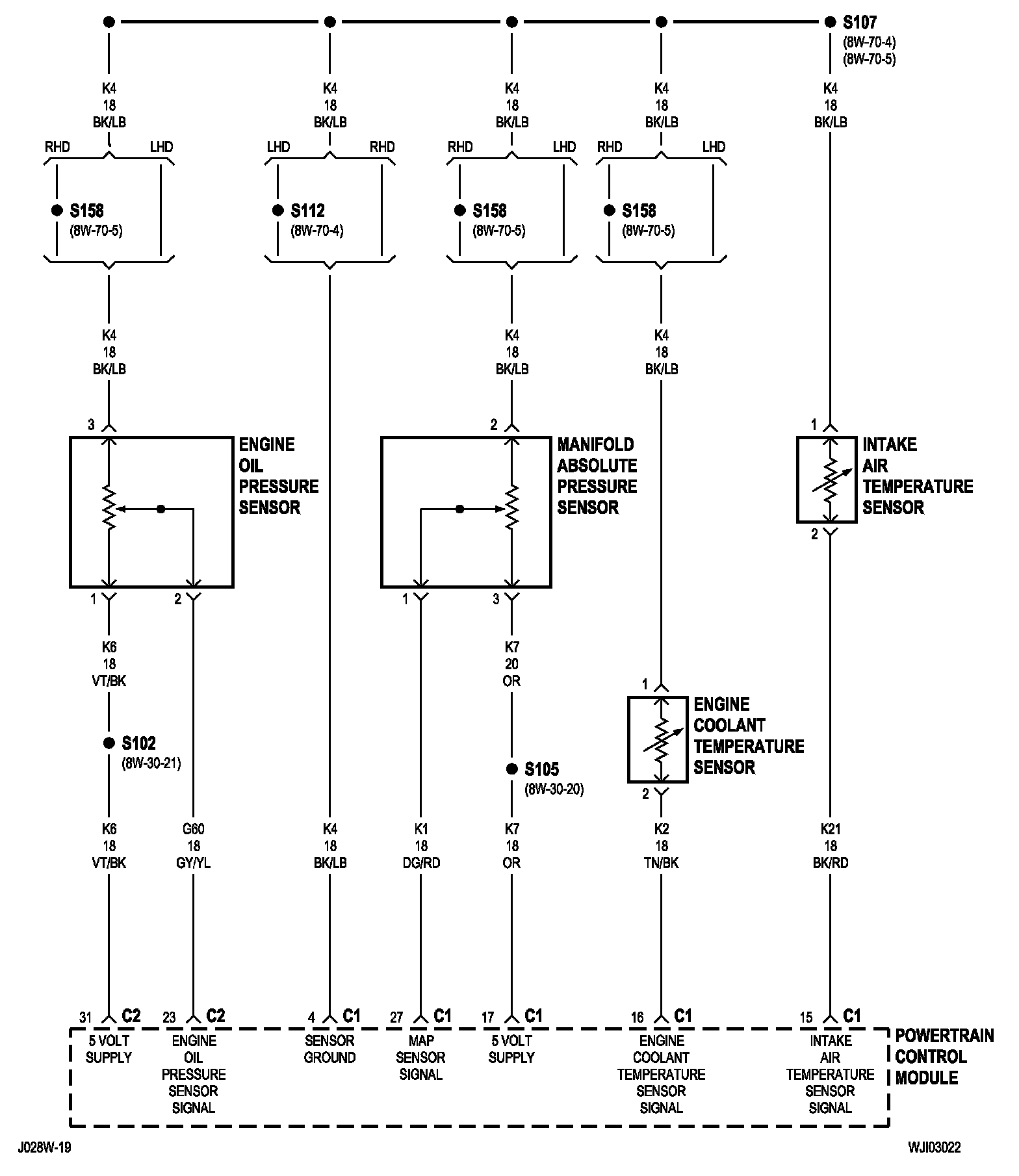

8w-30-22:

8w-30-23:

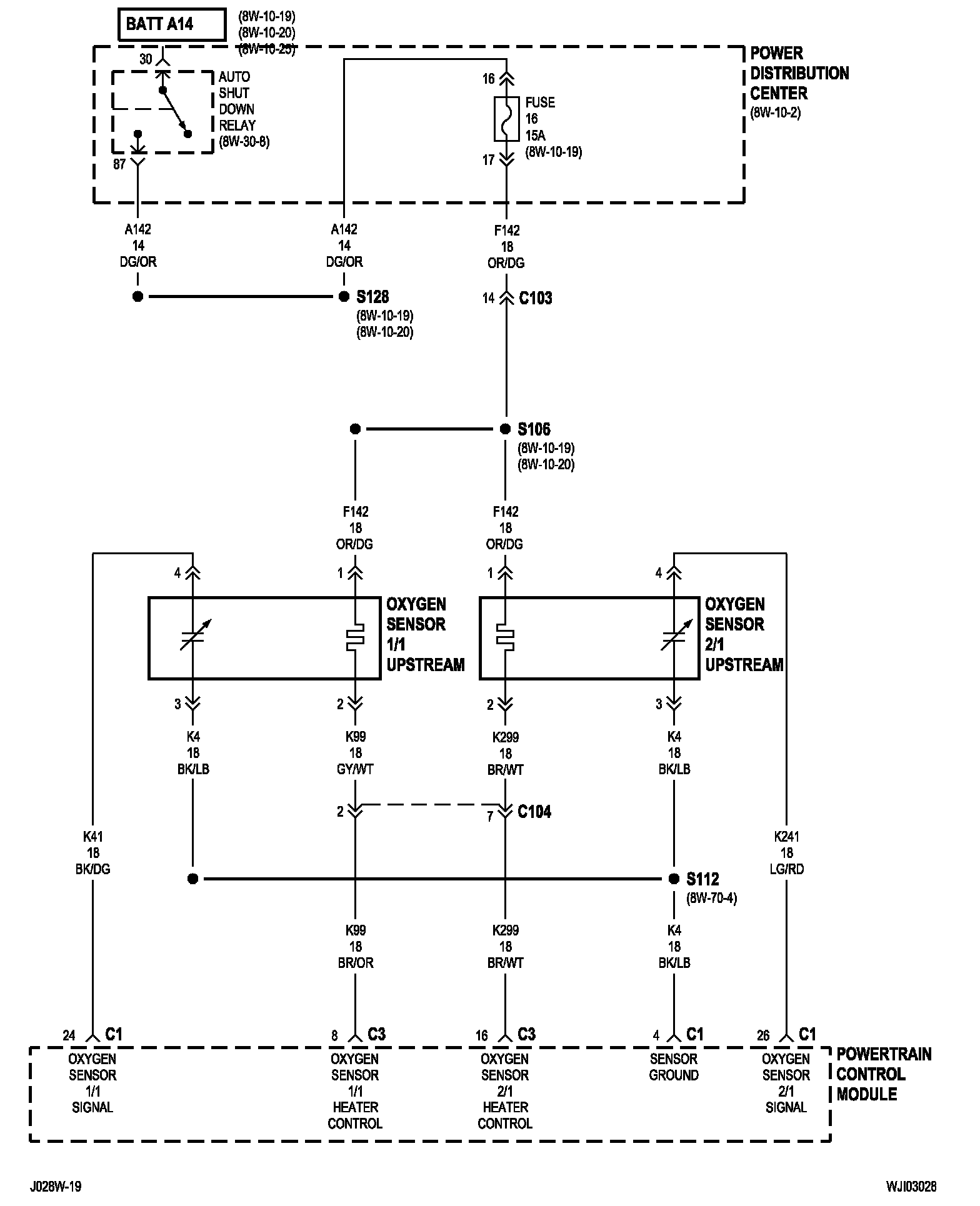

8w-30-28 (LHD):

8w-30-29 (RHD):

8w-30-30:

8w-30-31:

8w-30-32:

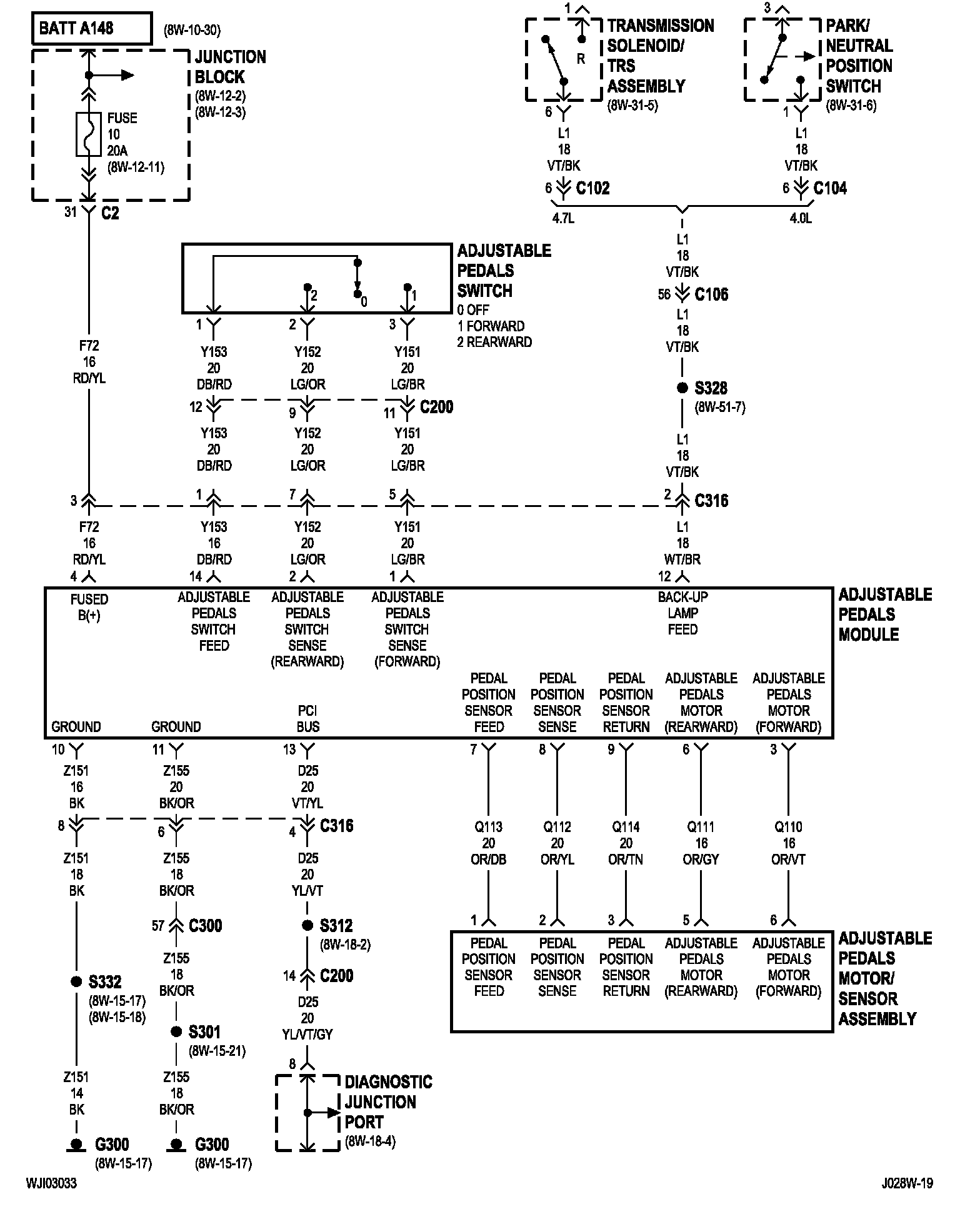

8w-30-33 (Except Built-Up-Export):

NOTE: To view sheets referred to in these diagrams, see Complete Body and Chassis Diagrams. Electrical Diagrams
