Alignment Specifications
SPECIFICATIONSNOTE: Specifications are in degrees.
Alignment Specifications:

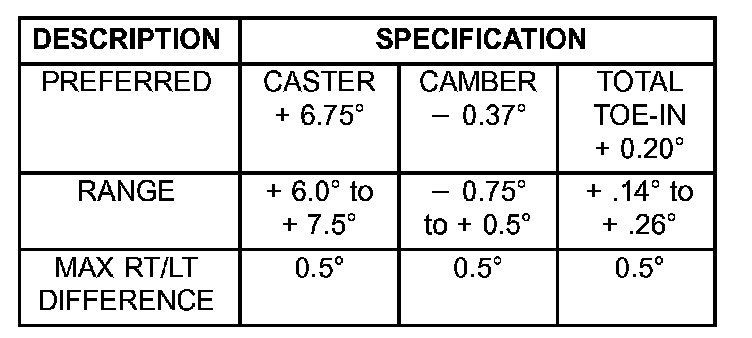

FRONT WHEELS - STANDARD SUSPENSION SPECIFICATIONS
Alignment Specifications:

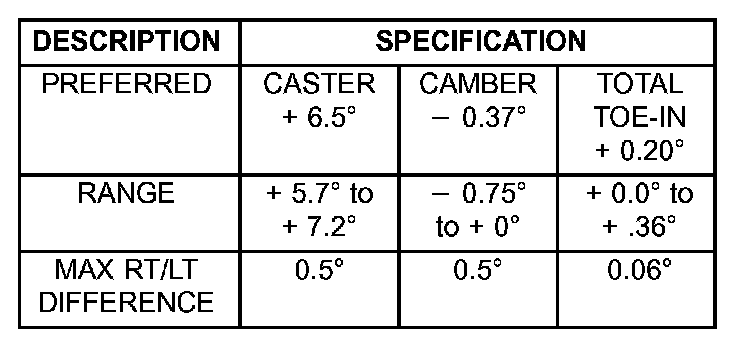

FRONT WHEELS - UP-COUNTRY SUSPENSION SPECIFICATIONS
Alignment Specifications:

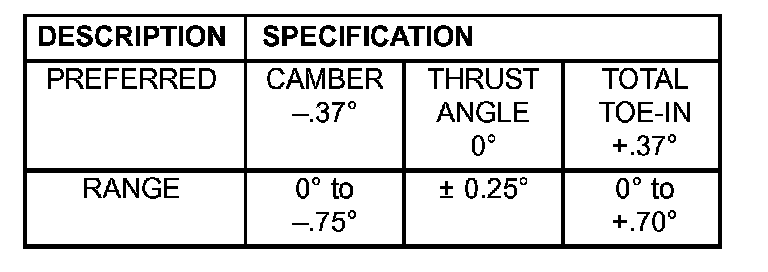

REAR AXLE
