Body Control Module

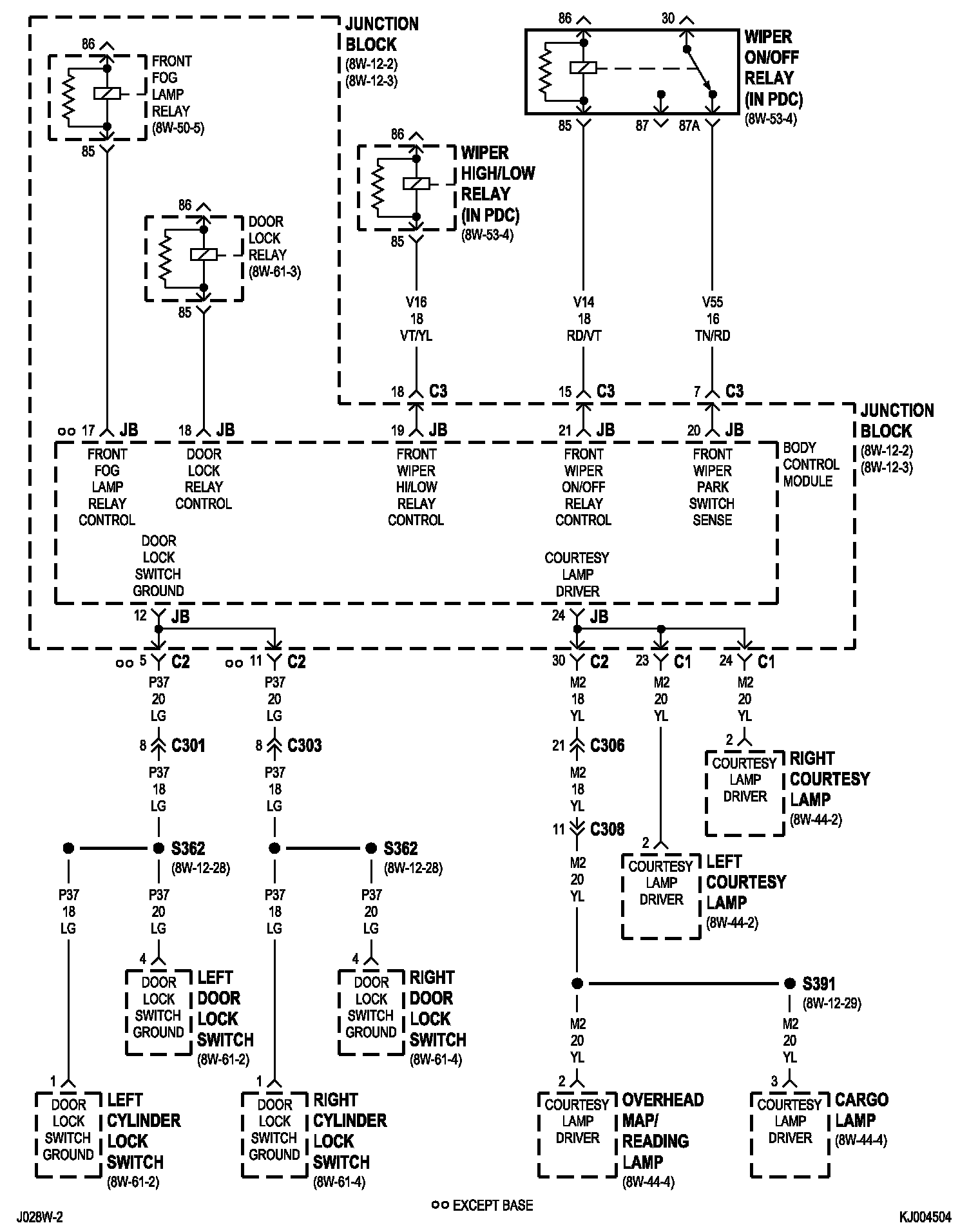

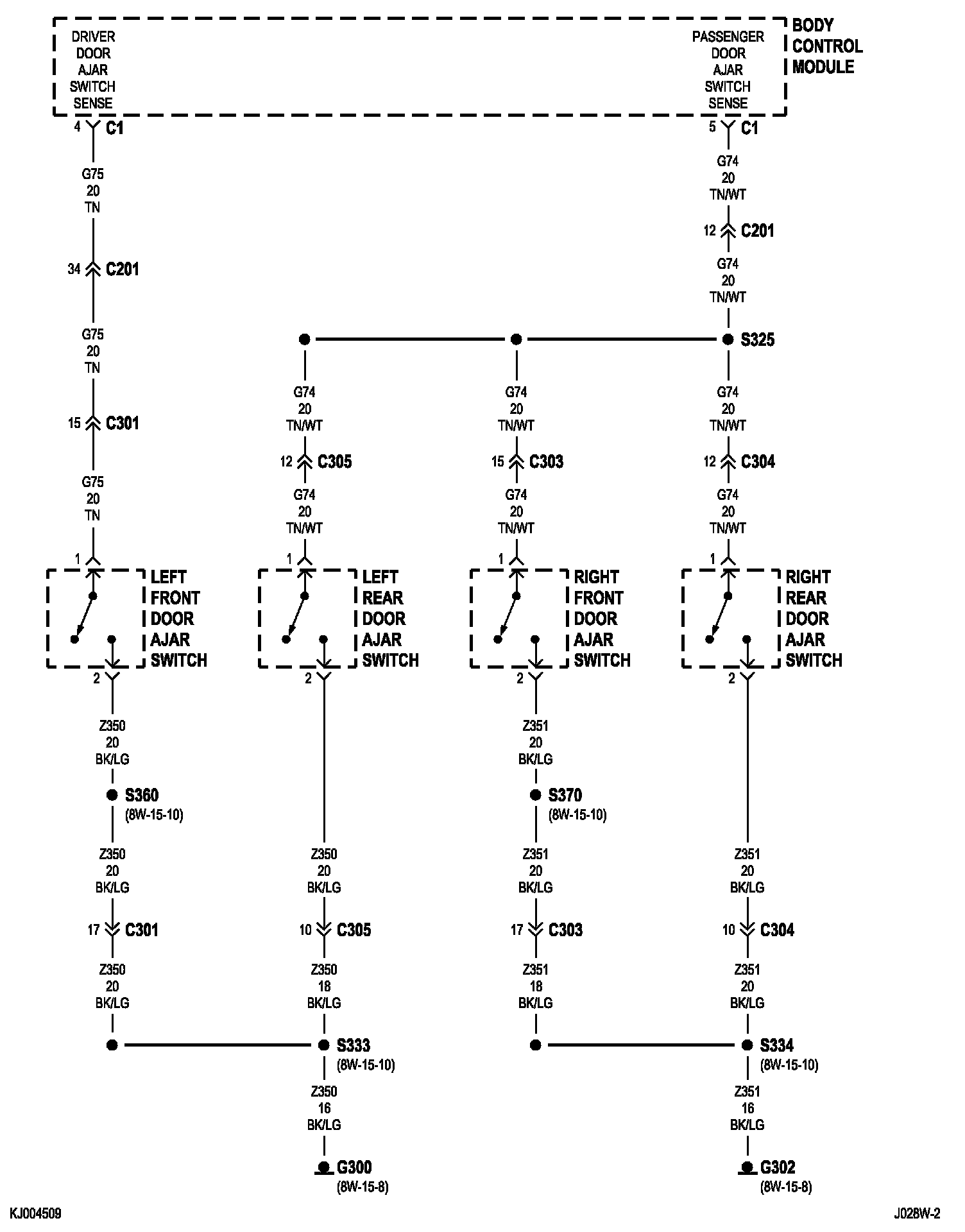

8w-45-2:

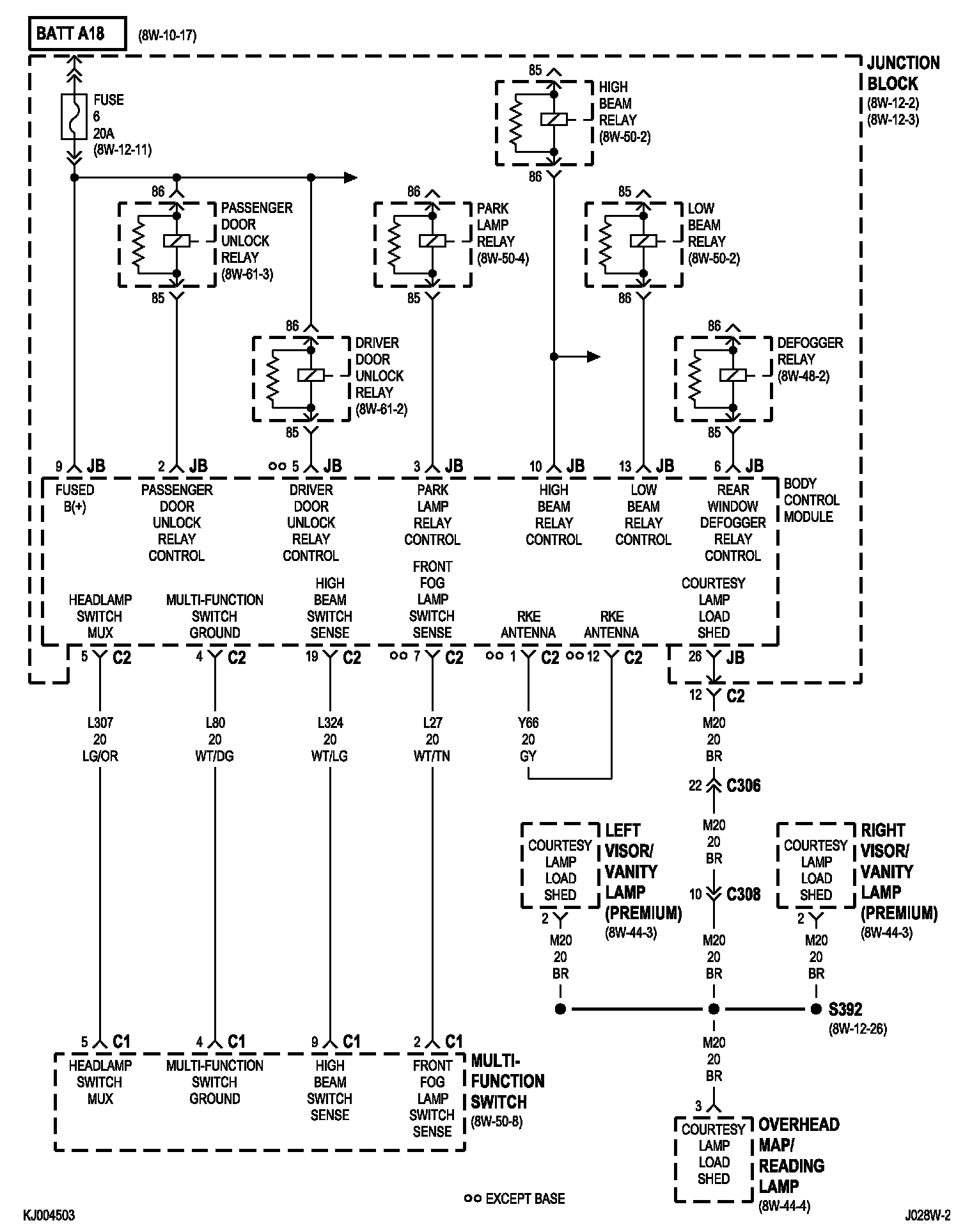

8w-45-3:

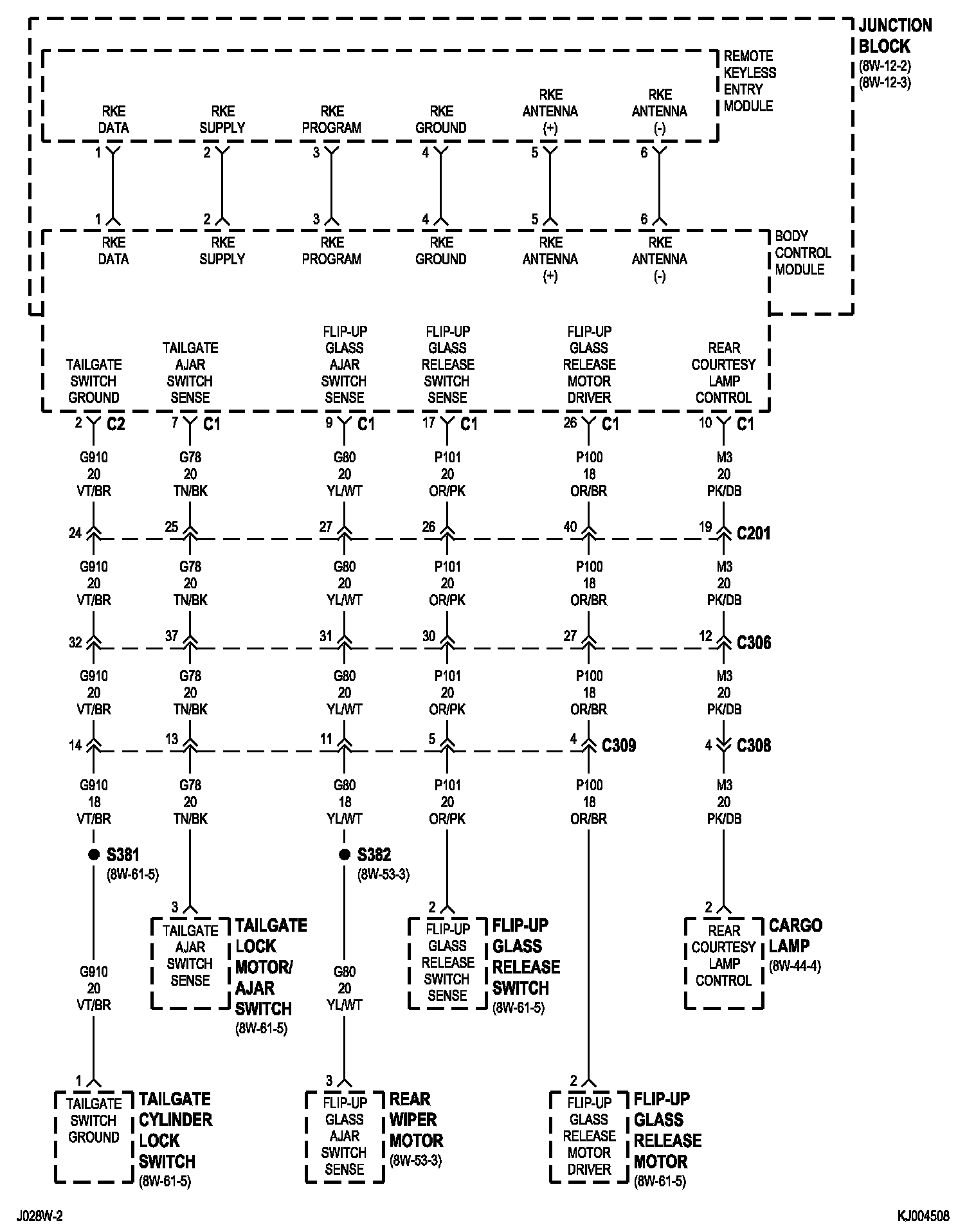

8w-45-4:

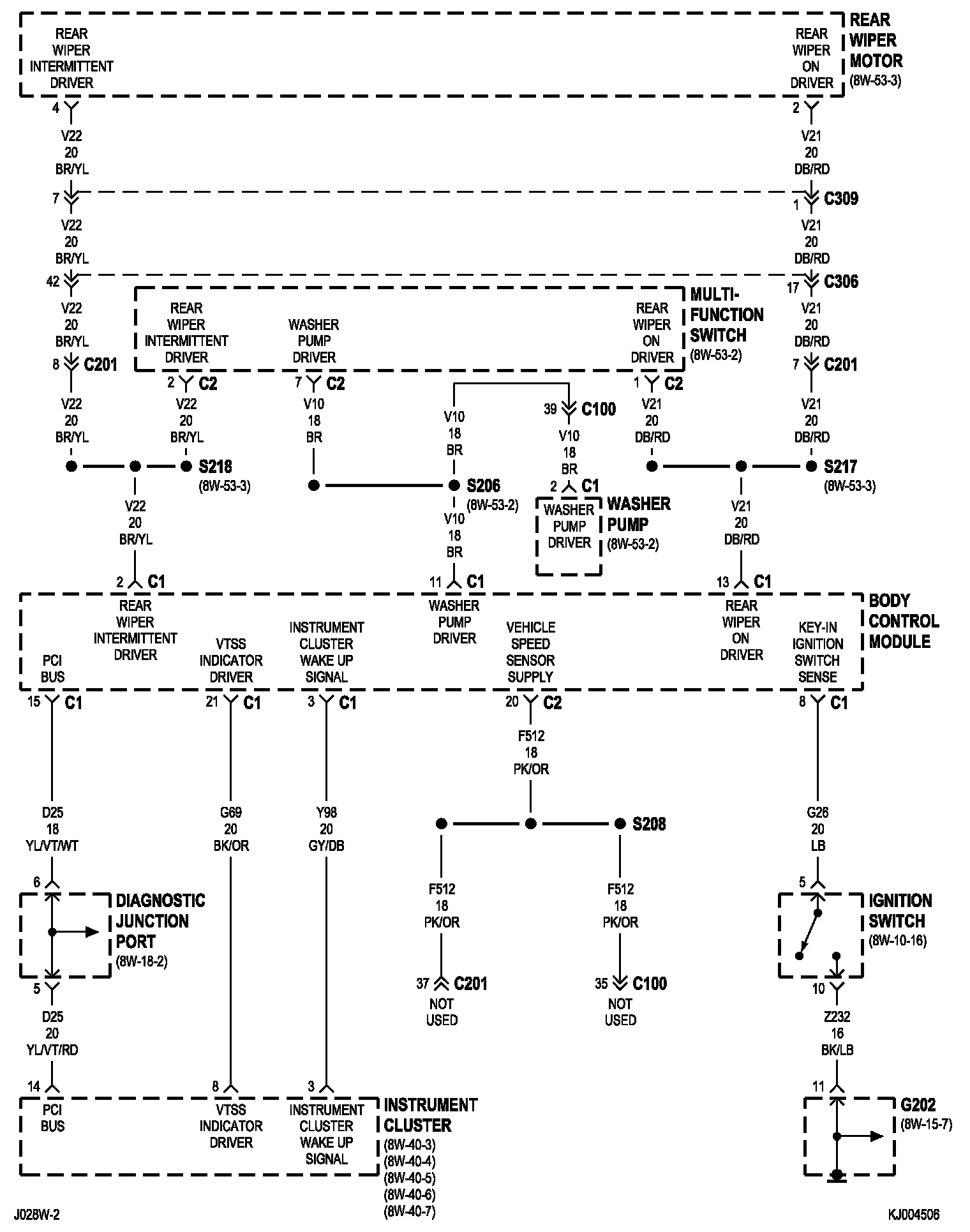

8w-45-5:

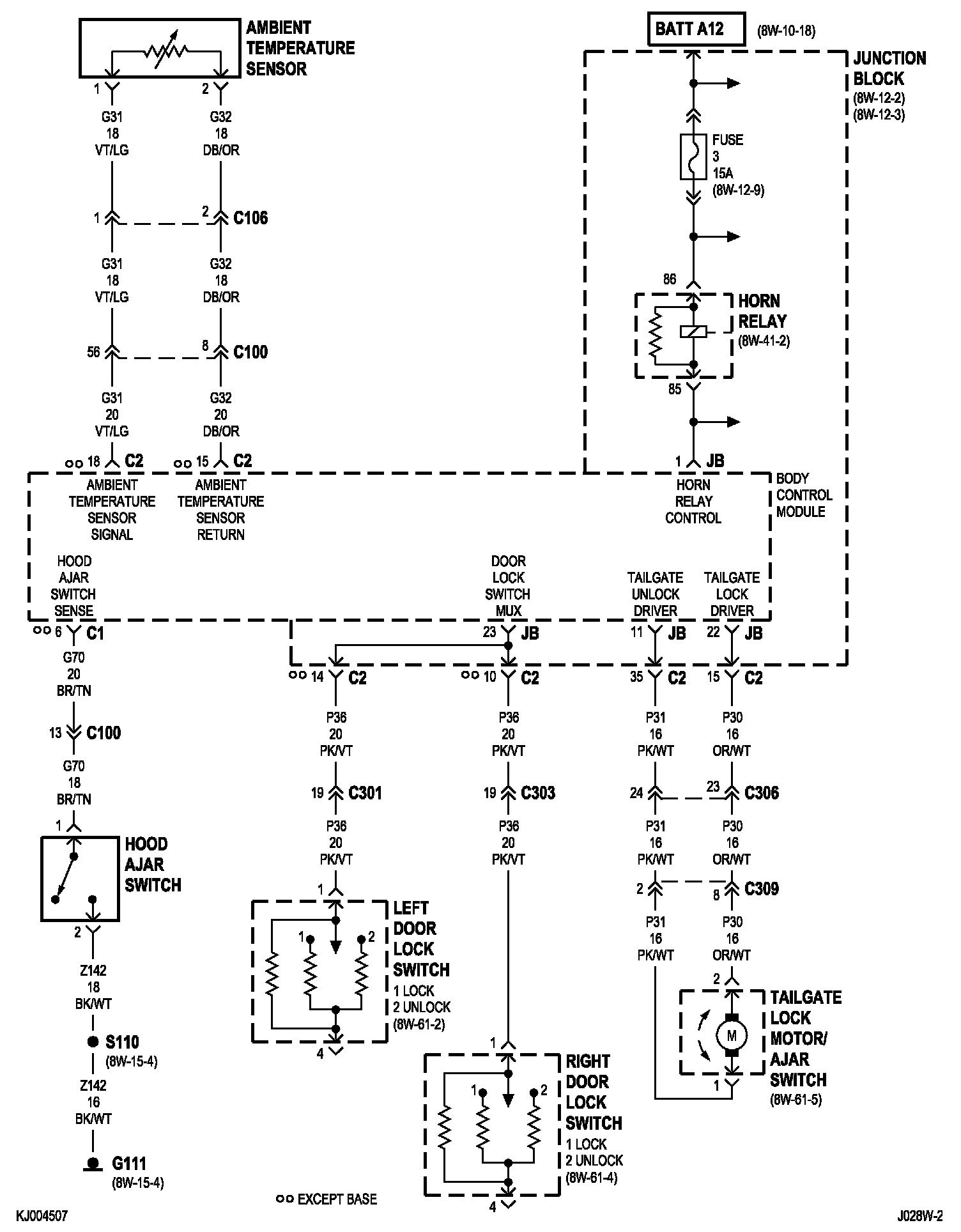

8w-45-6:

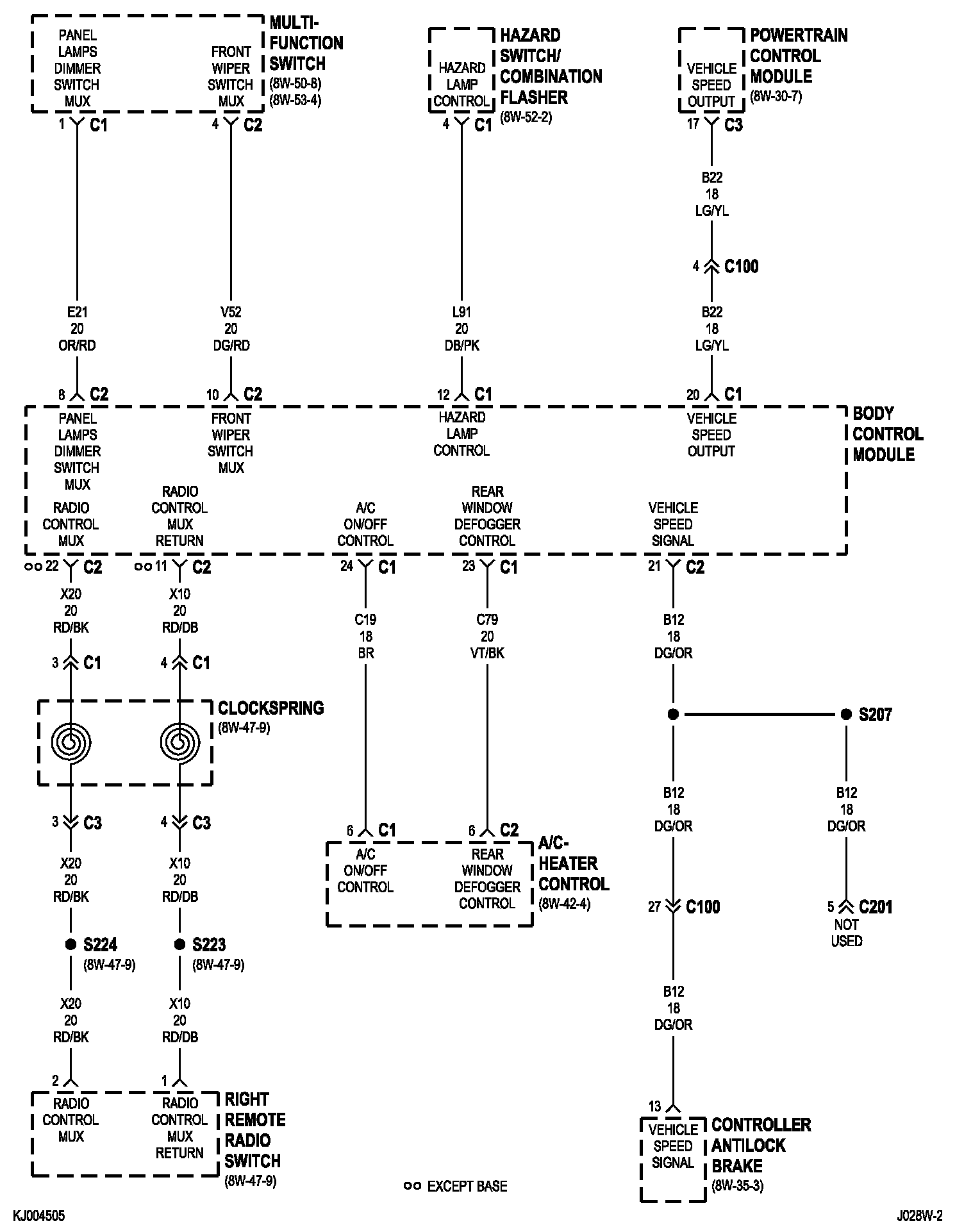

8w-45-7:

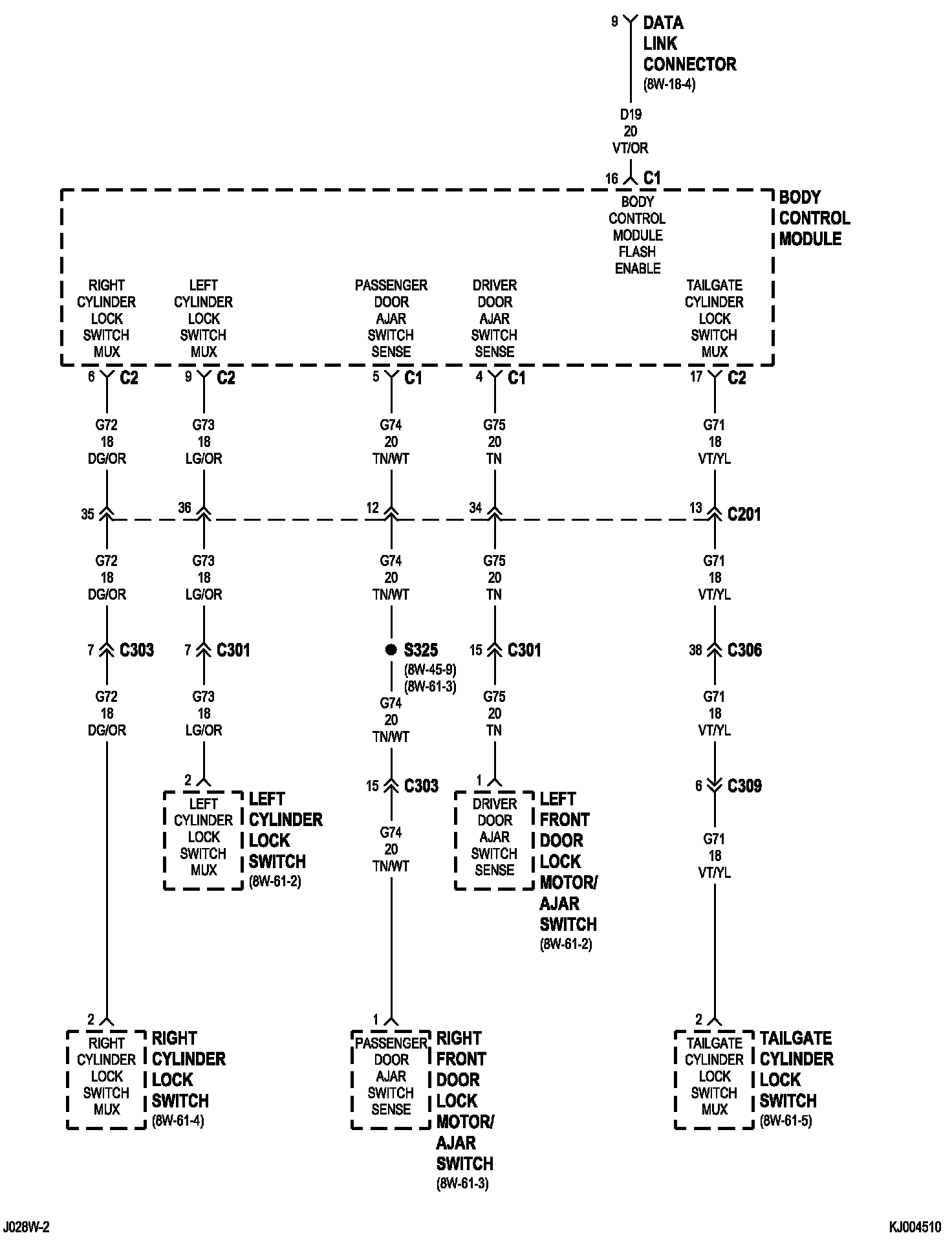

8w-45-8:

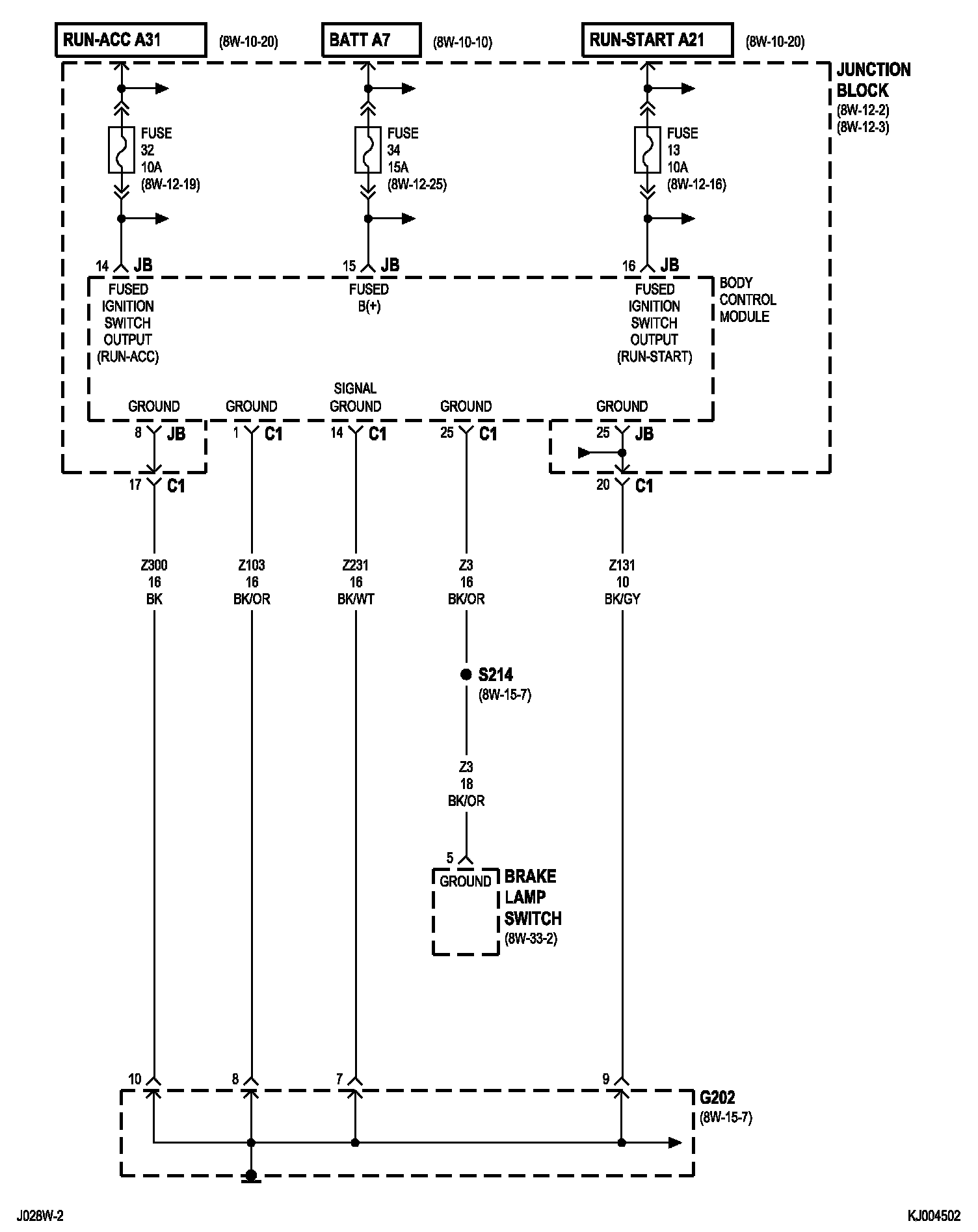

8w-45-9 (Except Base):

8w-45-10 (Base):

NOTE: To view sheets referred to in these diagrams, see Complete Body and Chassis Diagrams. Electrical Diagrams
