Oil Pressure Sensor
>>
Locations
>>
Connector Locations
Connector Locations

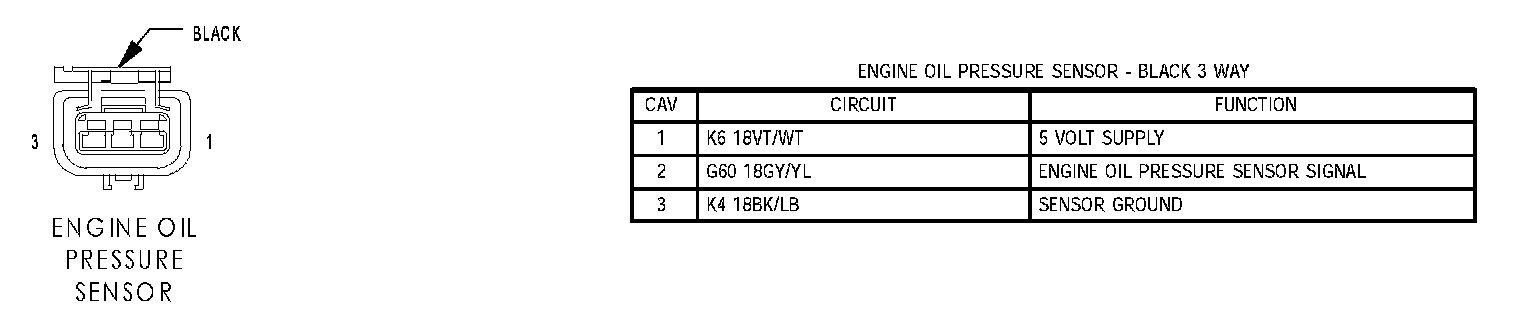

Engine Oil Pressure Sensor:
