Fuel Injector
Fuel Injector

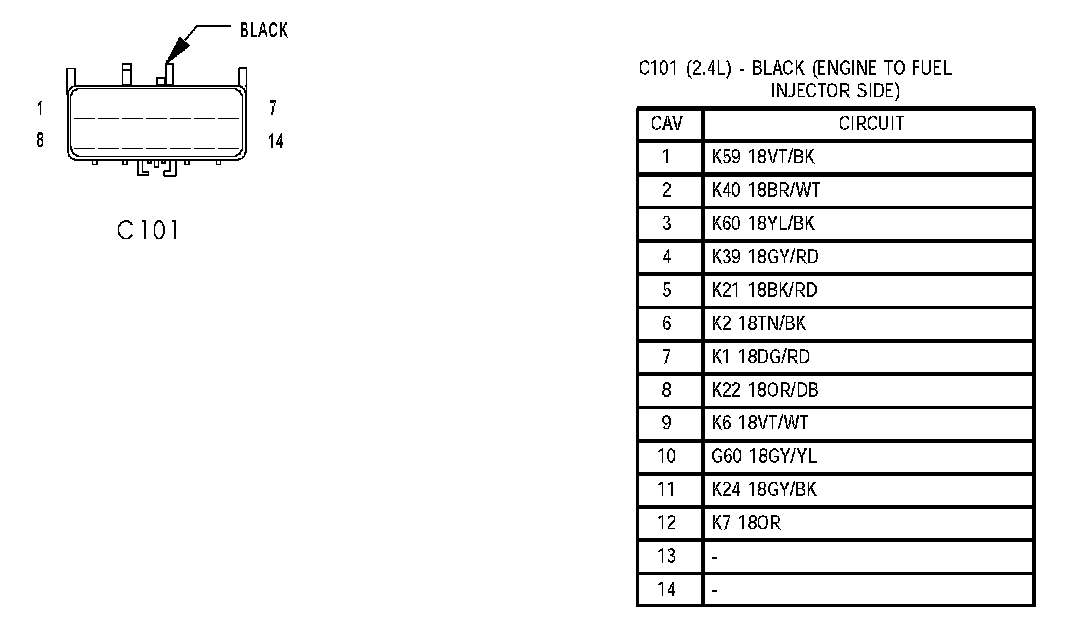

C101 (2.4L):

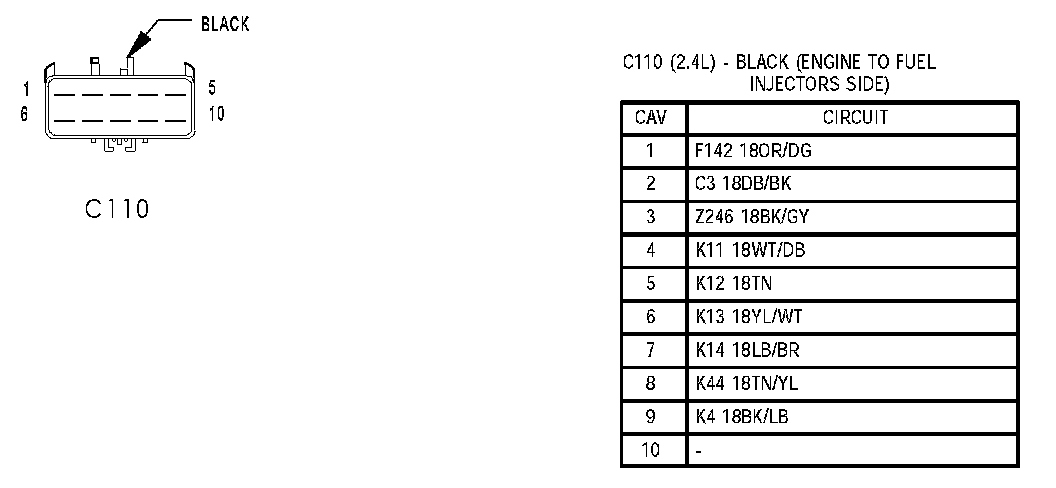

C110 (2.4L):

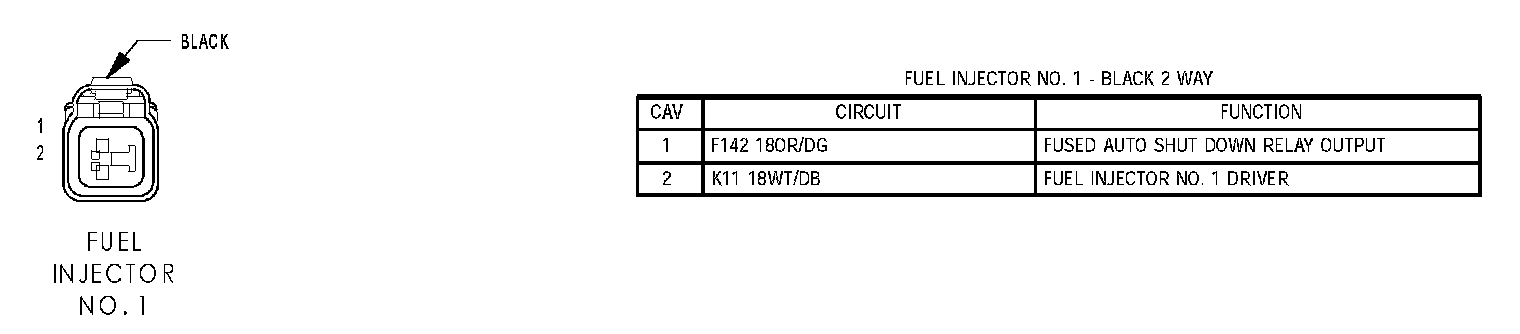

Fuel Injector No.1:

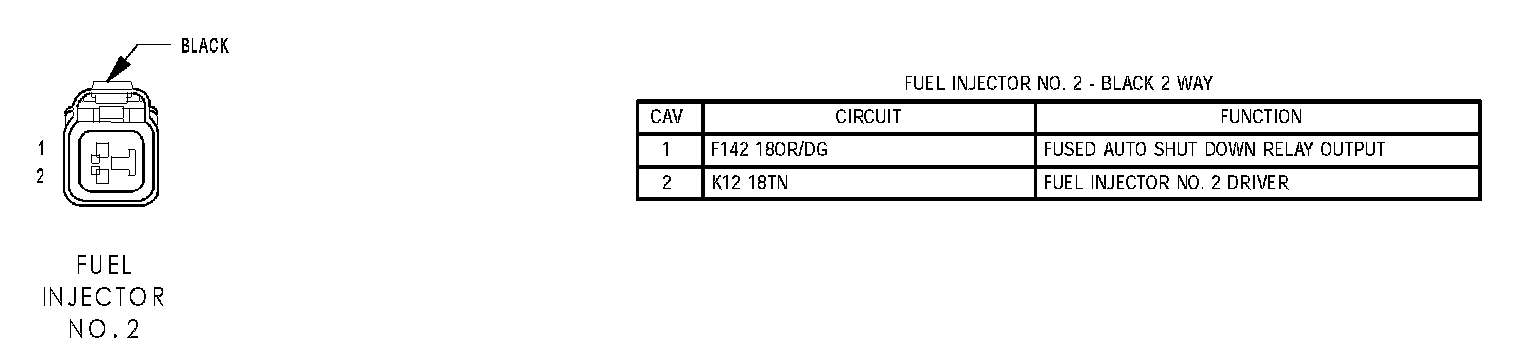

Fuel Injector No.2:

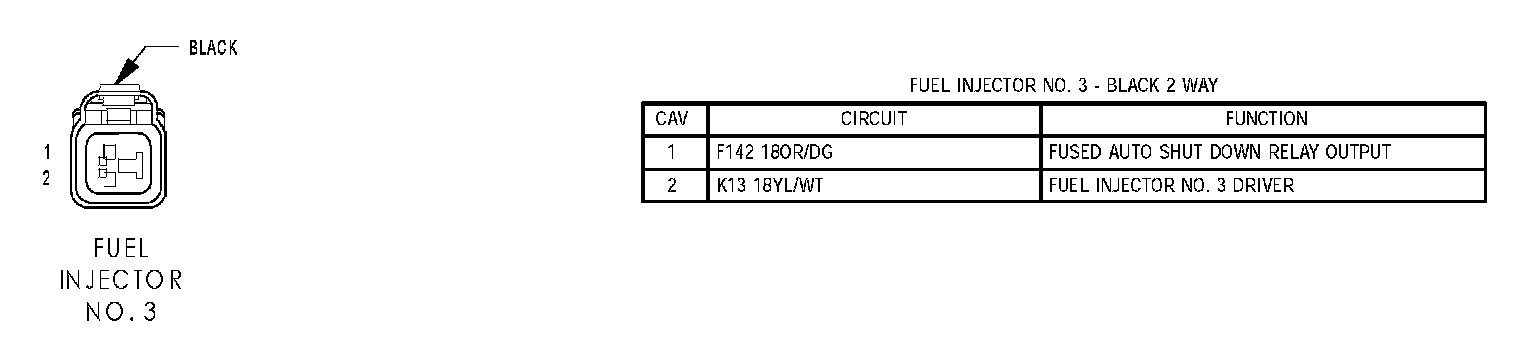

Fuel Injector No.3:

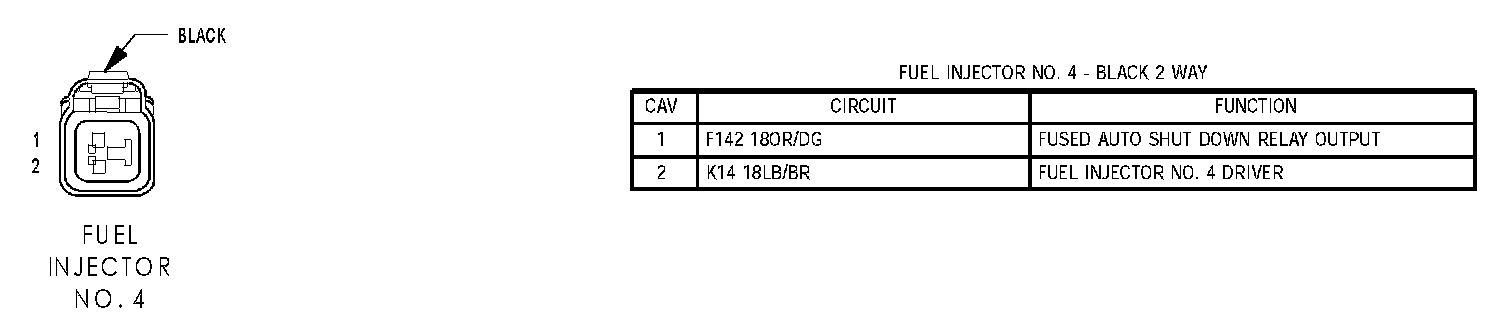

Fuel Injector No.4:
