Hazard Warning Switch

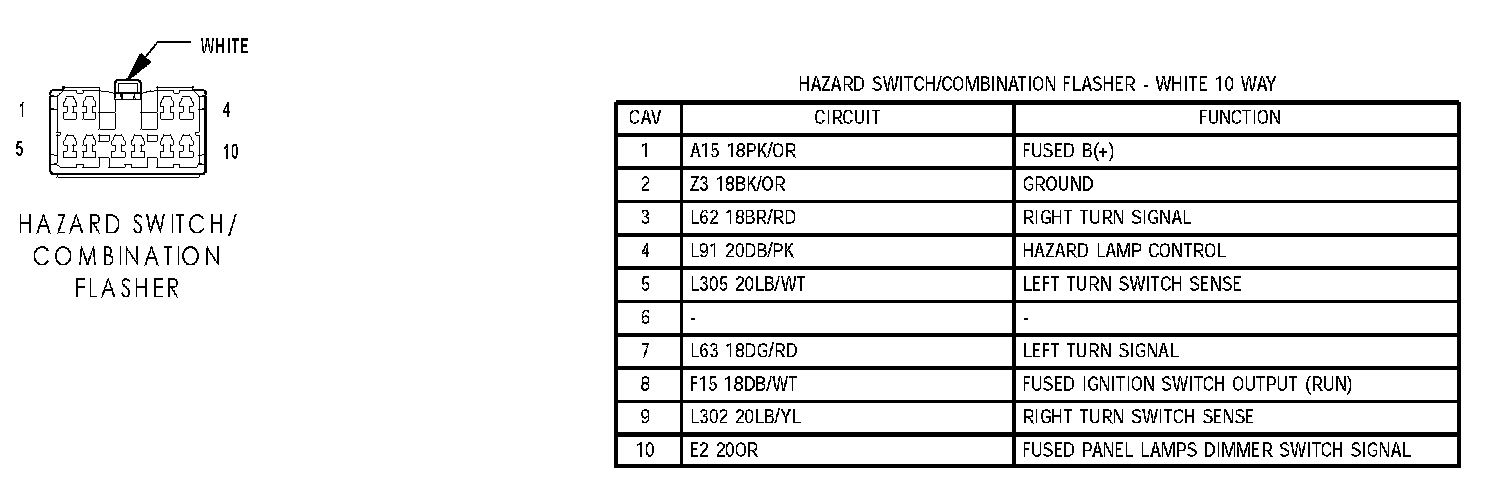

Hazard Switch/Combination Flasher:




Multi-Function Switch C1:




Multi-Function Switch C2:
