Lock Cylinder Switch
Lock Cylinder Switch

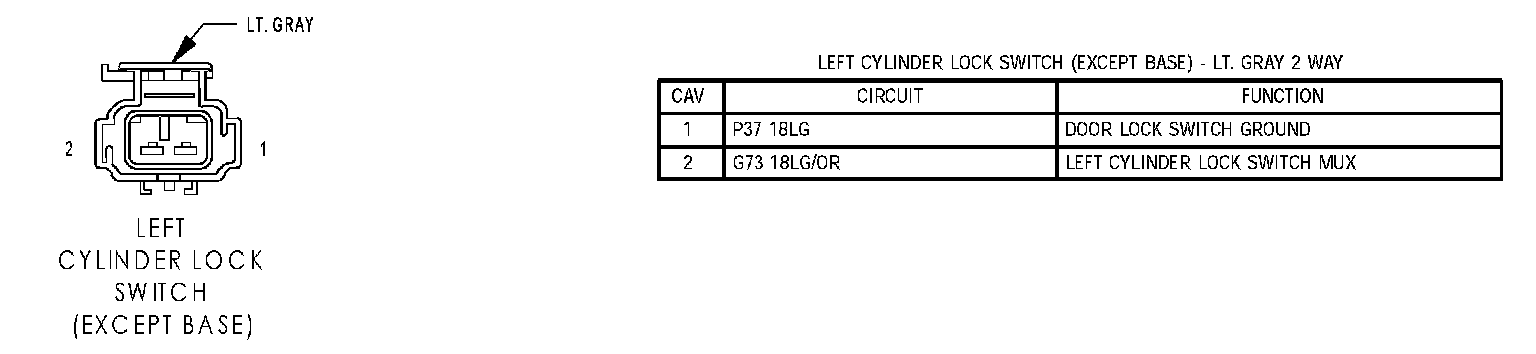

Left Cylinder Lock Switch (Except Base):

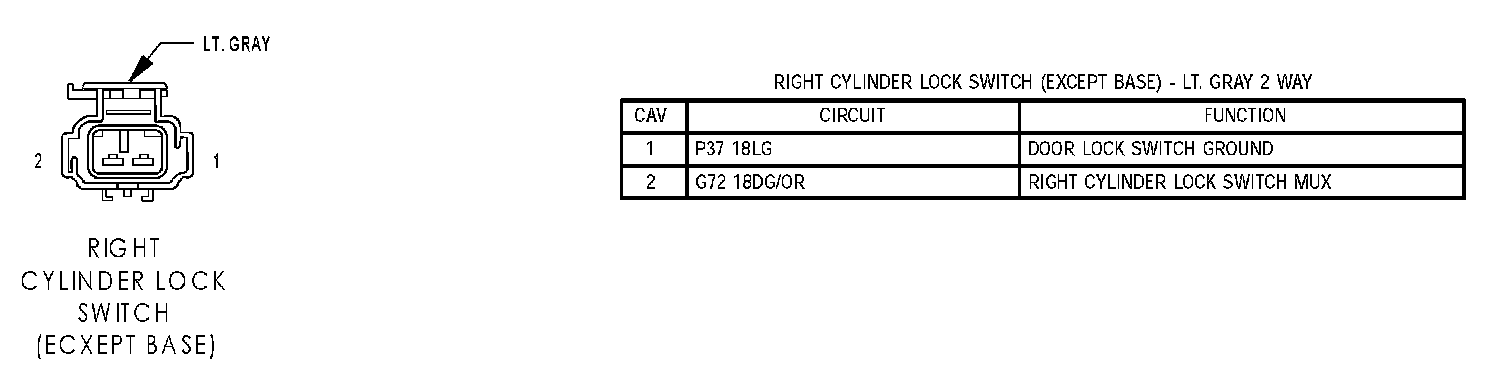

Right Cylinder Lock Switch (Except Base):
