Power Window Motor

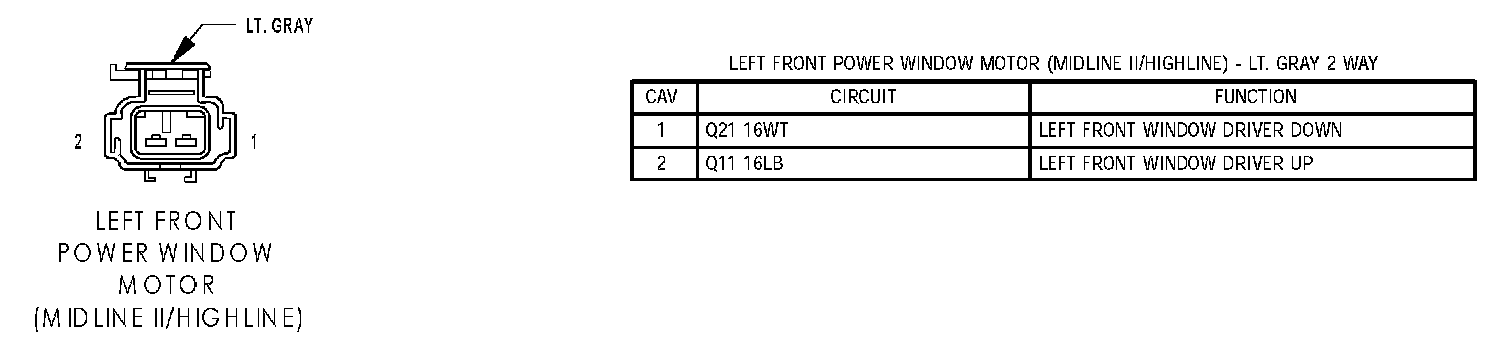

Left Front Power Window Motor (Midline II/Highline):

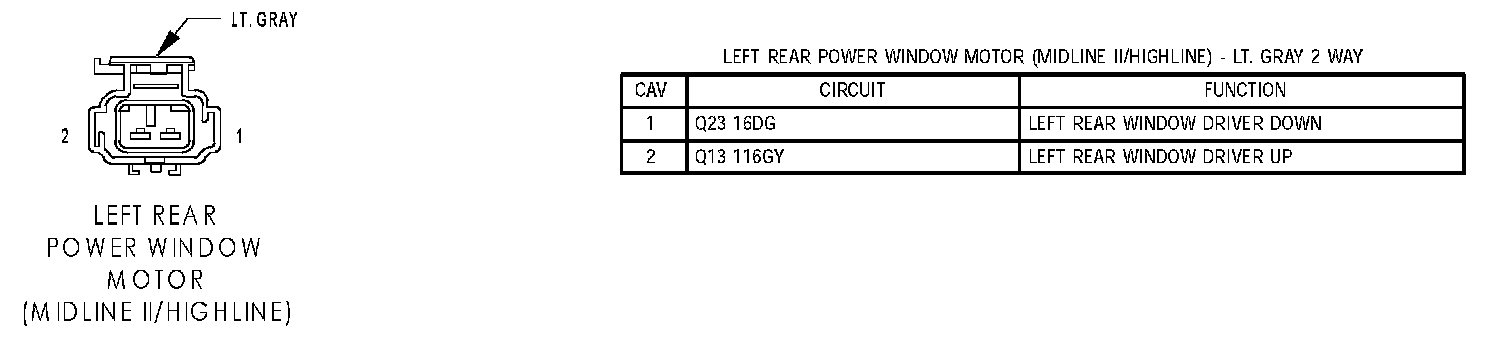

Left Rear Power Window Motor (Midline II/Highline):

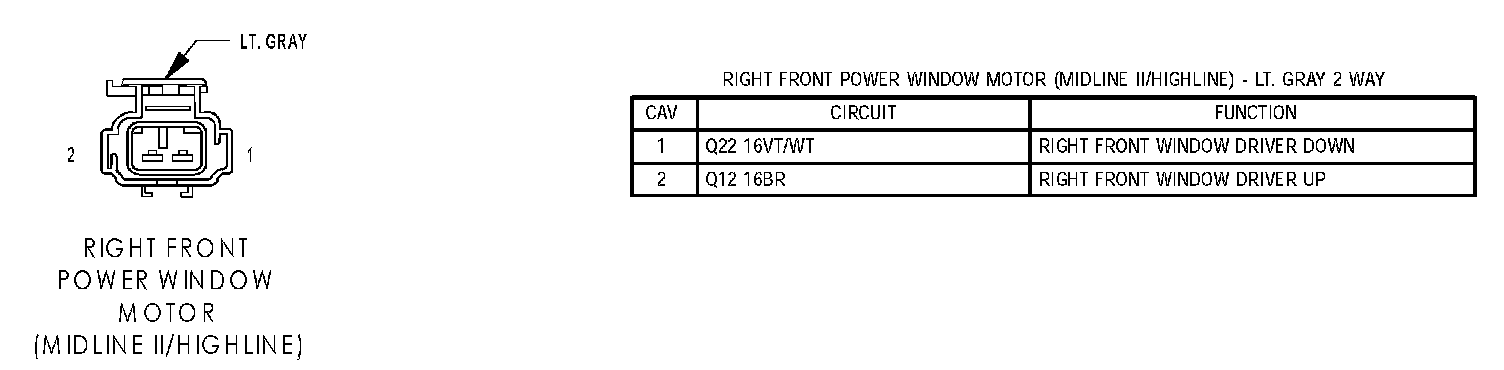

Right Front Power Window Motor (Midline II/Highline):

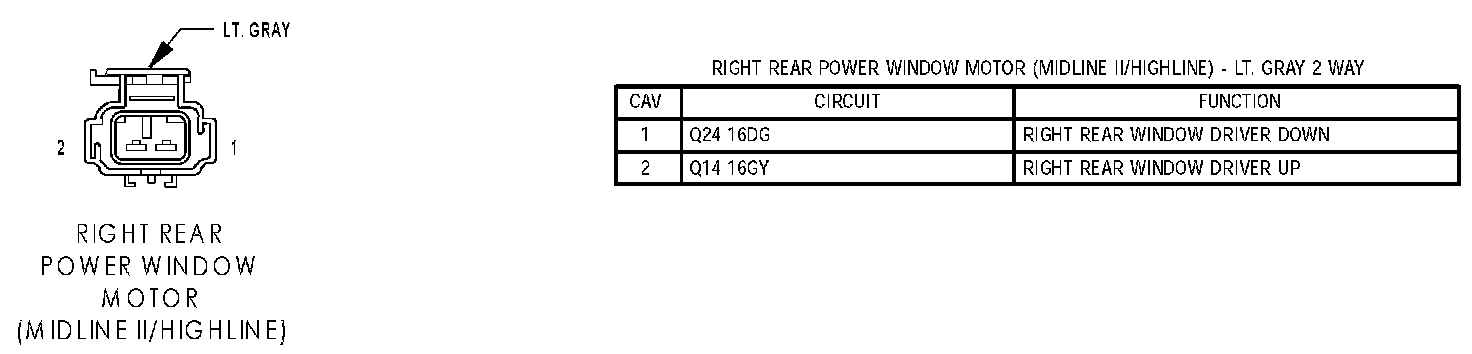

Right Rear Power Window Motor (Midline II/Highline):
