Power Window Switch
Power Window Switch

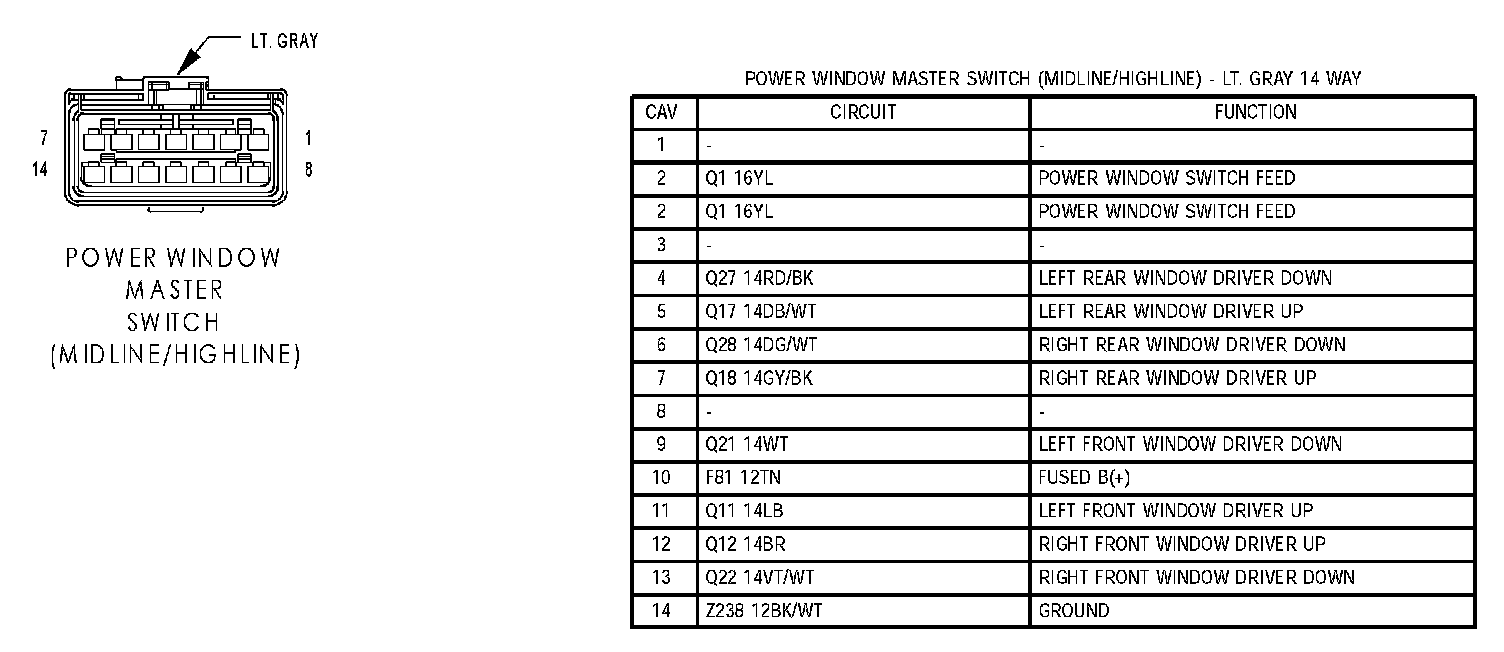

Power Window Master Switch (Midline/Highline):

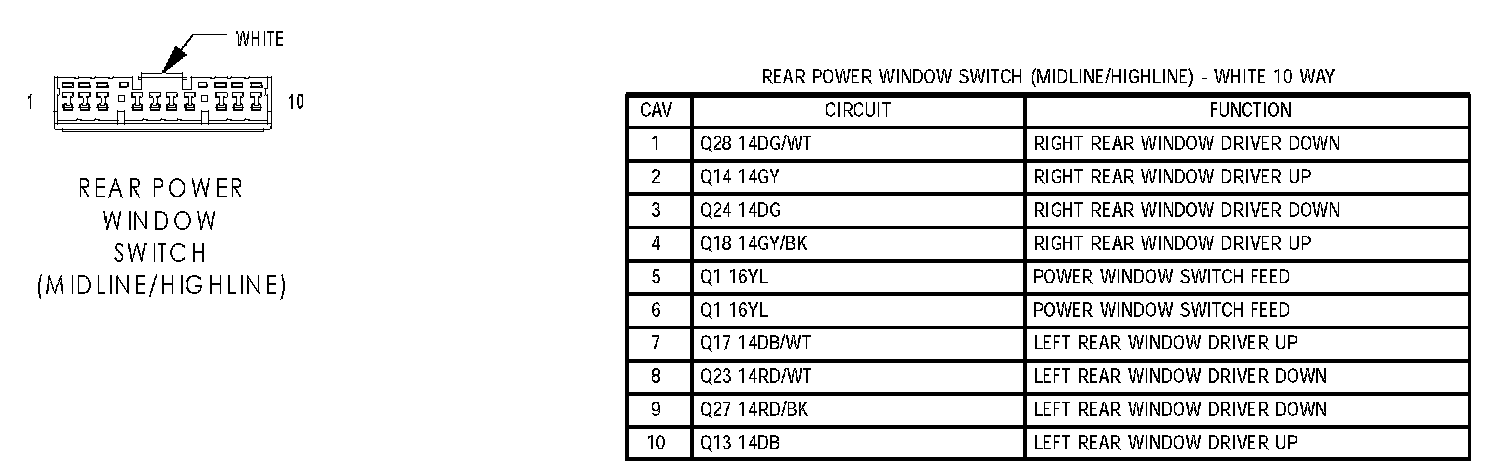

Rear Power Window Switch (Midline/Highline):
