Operation CHARM
: Car repair manuals for everyone.
Home
>>
Jeep
>>
2002
>>
Liberty Sport 2WD L4-2.4L VIN 1
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Seats
>>
Seat Temperature Control Module
Seat Temperature Control Module

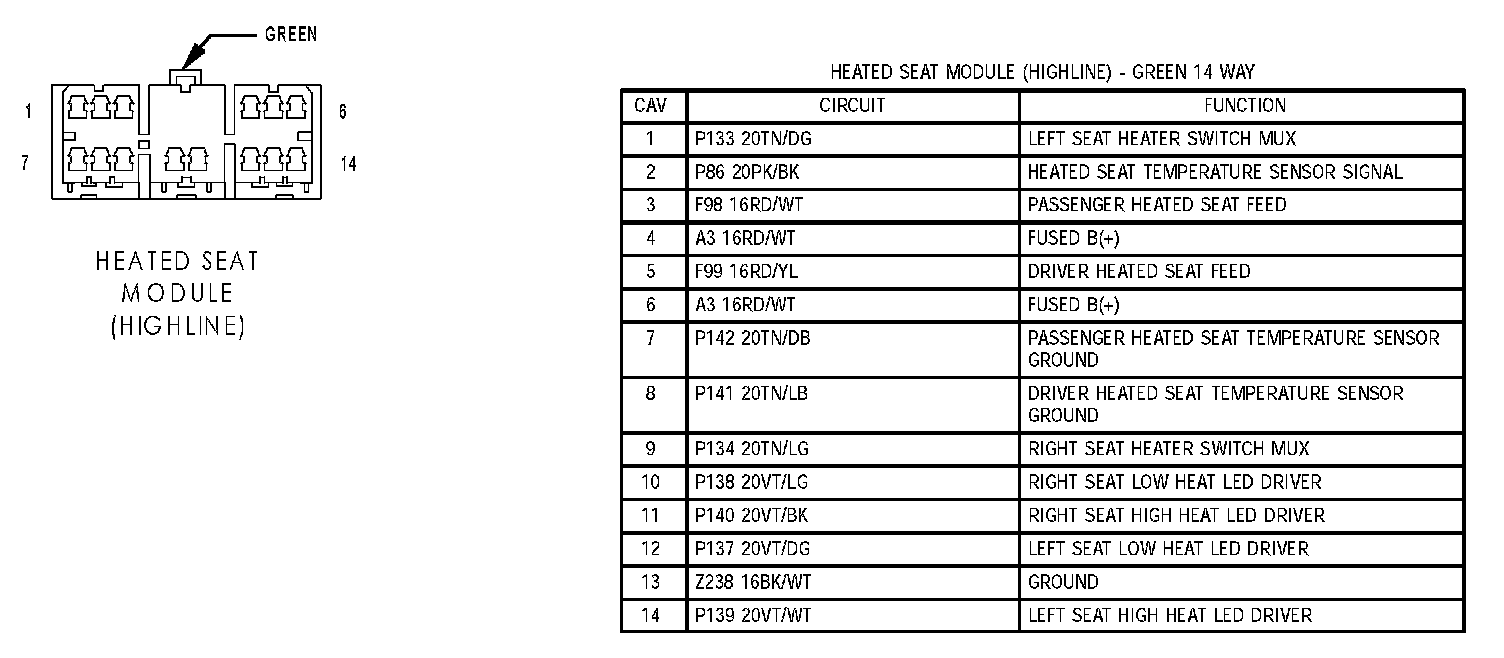

Heated Seat Module (Highline):
