Alignment

ALIGNMENT SPECIFICATIONS

NOTE: Specifications are in degrees.

Curb Height Specifications:

Curb Height Specifications:

Curb Height Specifications:

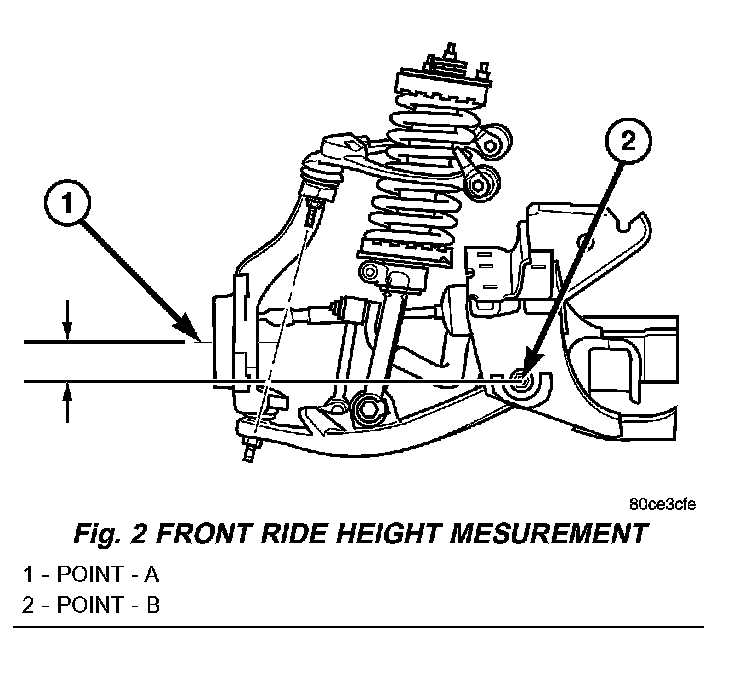

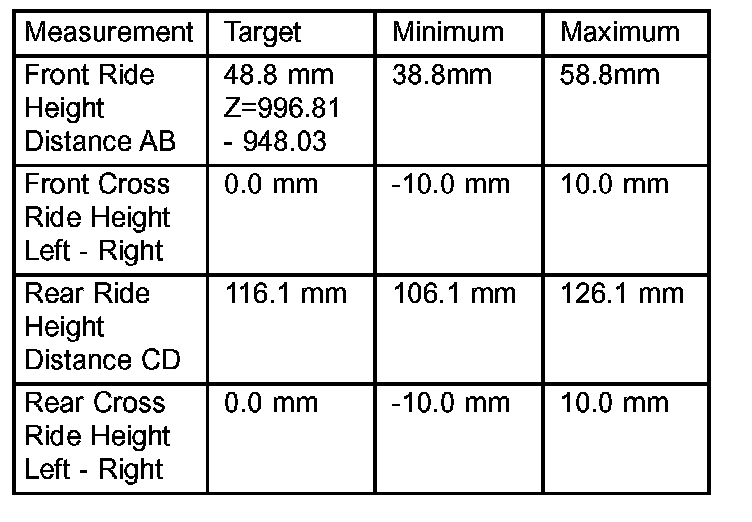

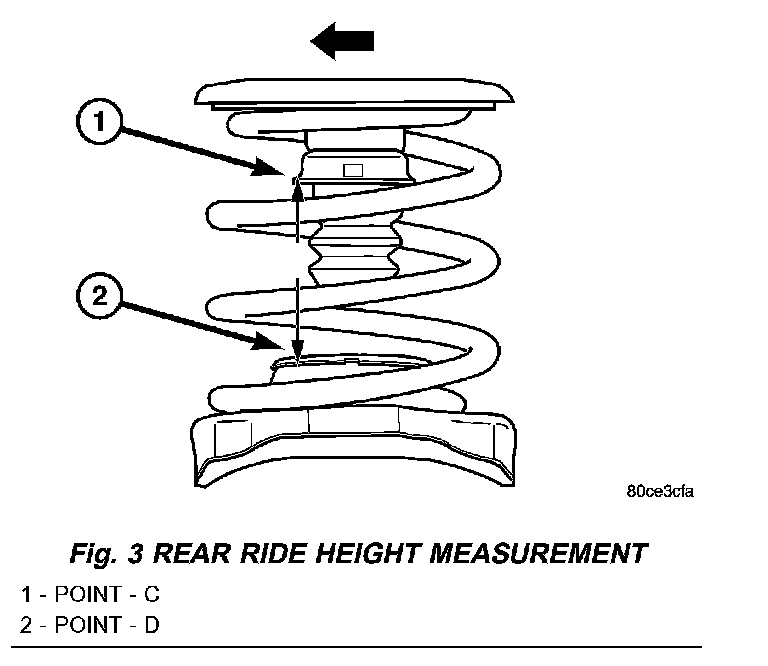

Ride Height Specifications

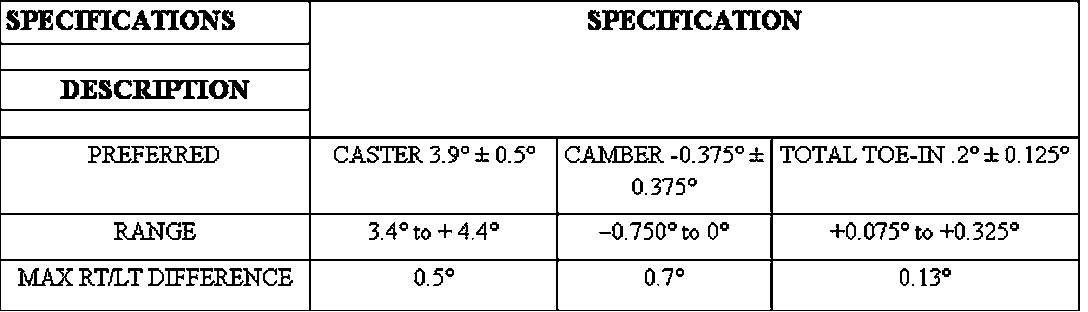

Front Specifications

Alignment Specifications:

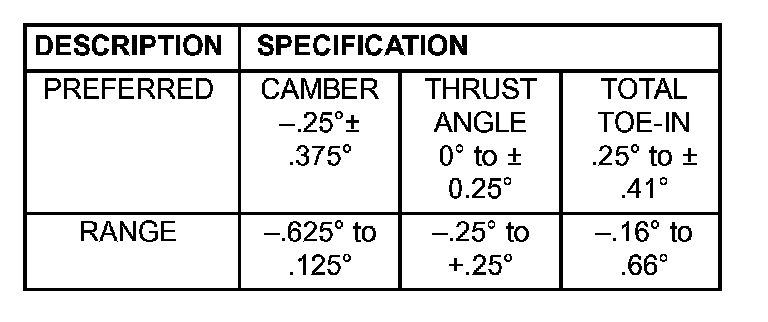

Rear Specifications
