Camshaft, Engine

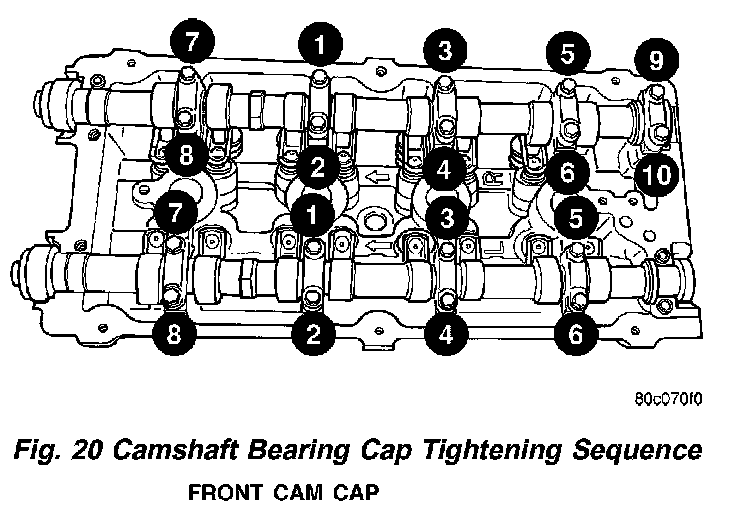

Fig. 20 Camshaft Bearing Cap Tightening Sequence:

Position camshafts on cylinder head bearing journals. Install right and left camshaft bearing caps No. 2 - 5 and right No. 6. Tighten M6 fasteners to 12 Nm (105 in. lbs.) in sequence shown in (Fig. 20).

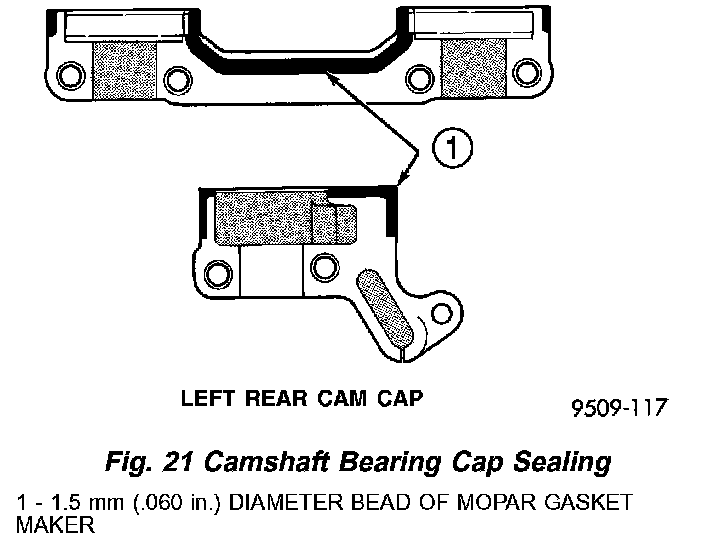

Fig. 21 Camshaft Bearing Cap Sealing:

Apply Mopar Gasket Maker to No.1 and No. 6 bearing caps (Fig. 21). Install bearing caps and tighten M8 fasteners to 28 Nm (250 in. lbs.).
