Home >> Jeep >> 2002 >> Liberty Sport 2WD V6-3.7L VIN K >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Information Bus >> Diagrams >> Electrical Diagrams >> System Schematic

System Schematic

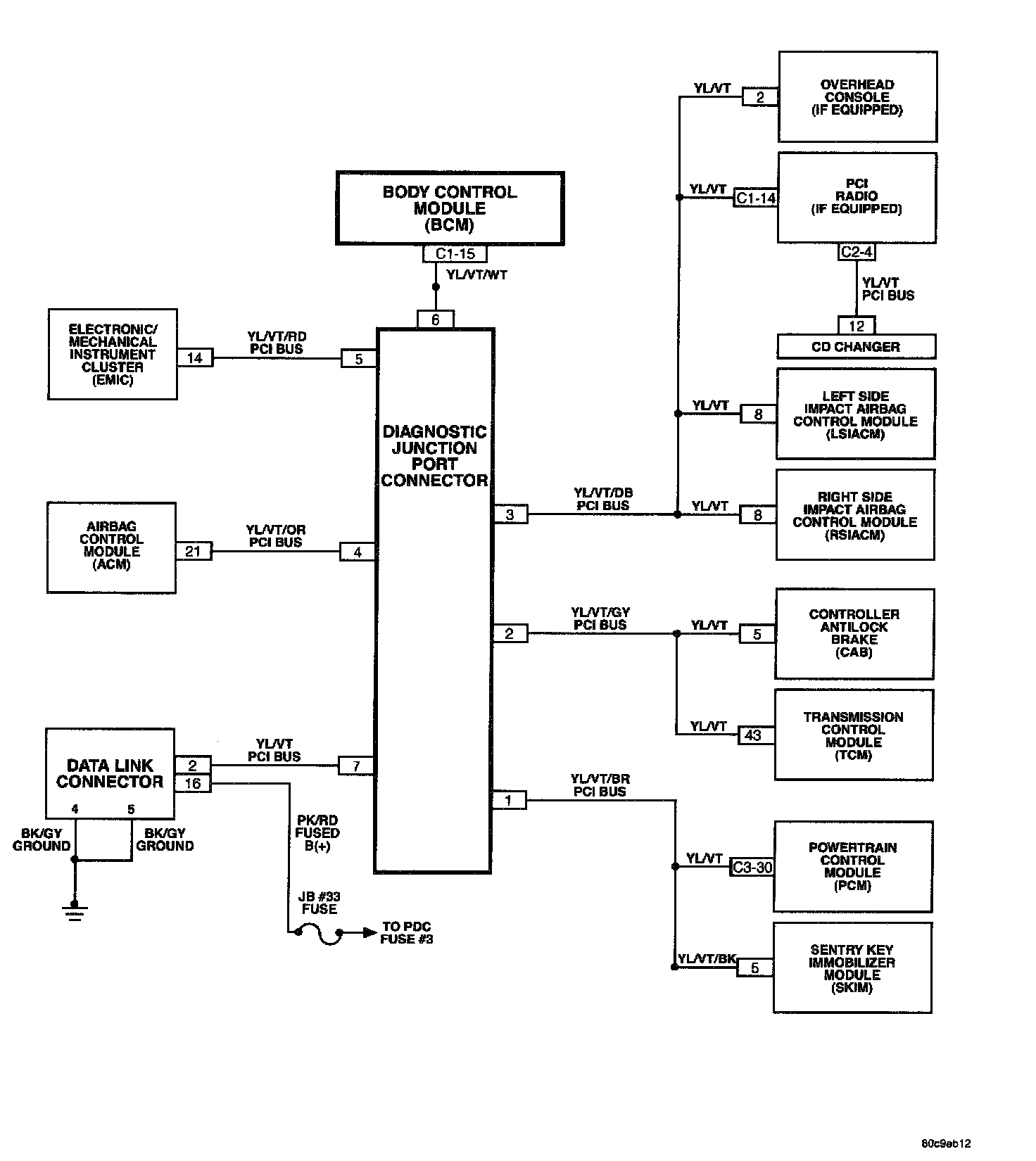

Inter-Module And DRB Communication:

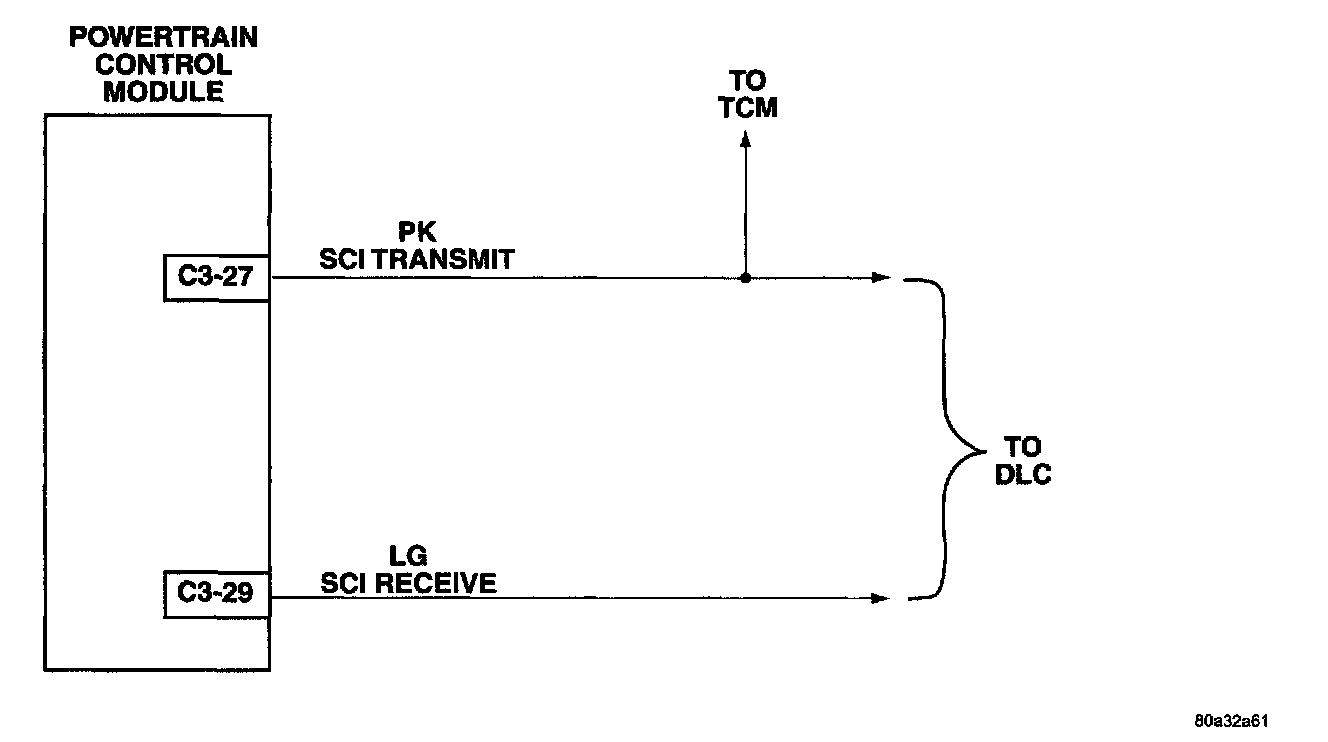

PCM Communication:
