Connector Views
>>
Seats
>>
System Diagram
System Diagram

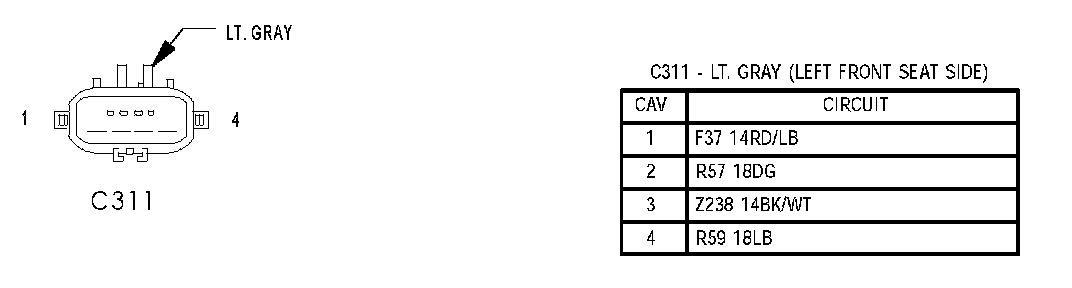

C311:

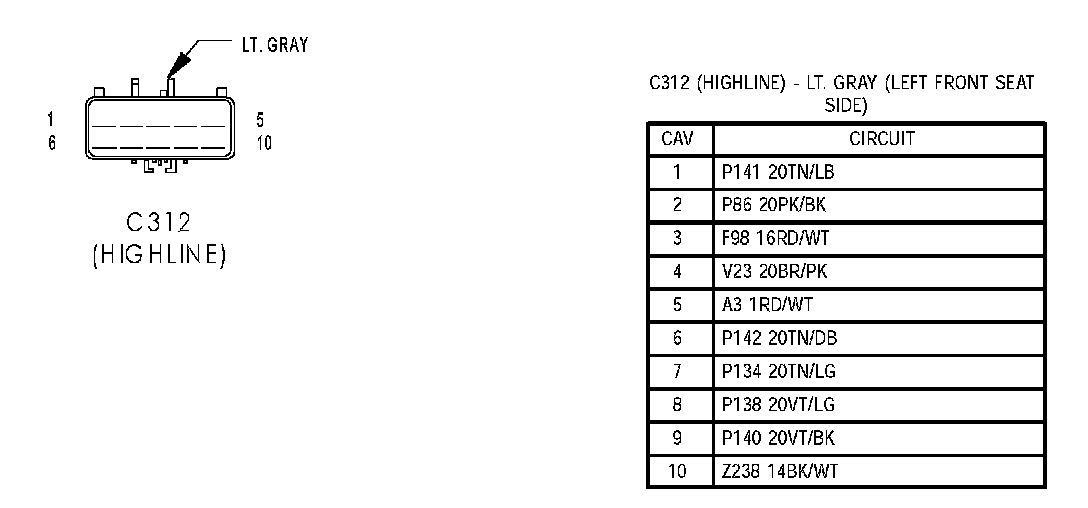

C312 (Highline):

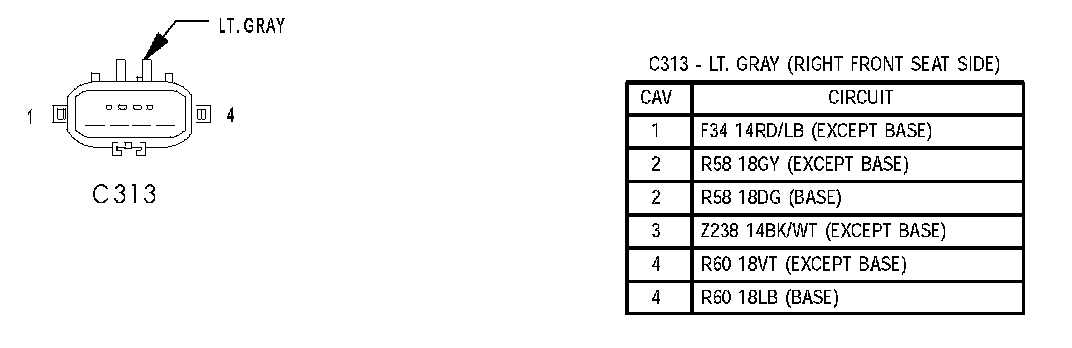

C313:

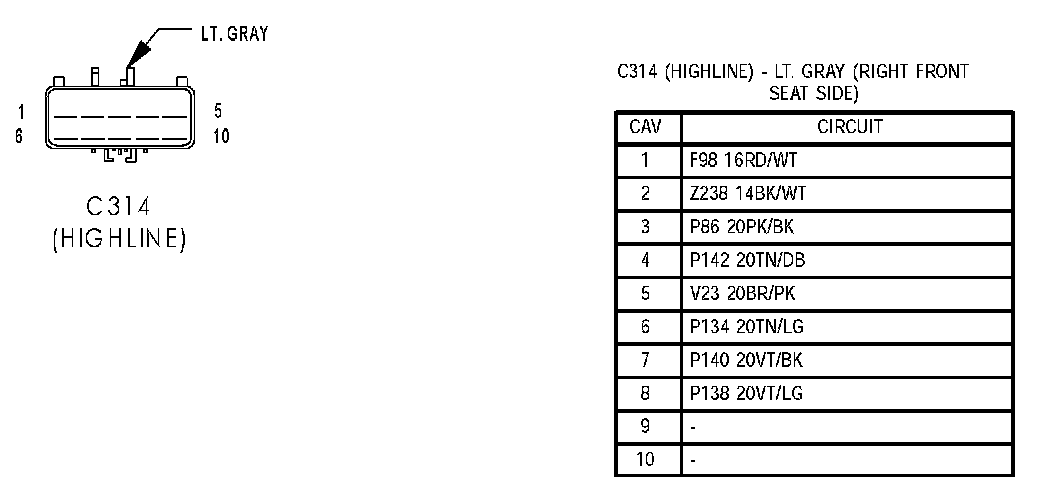

C314 (Highline):

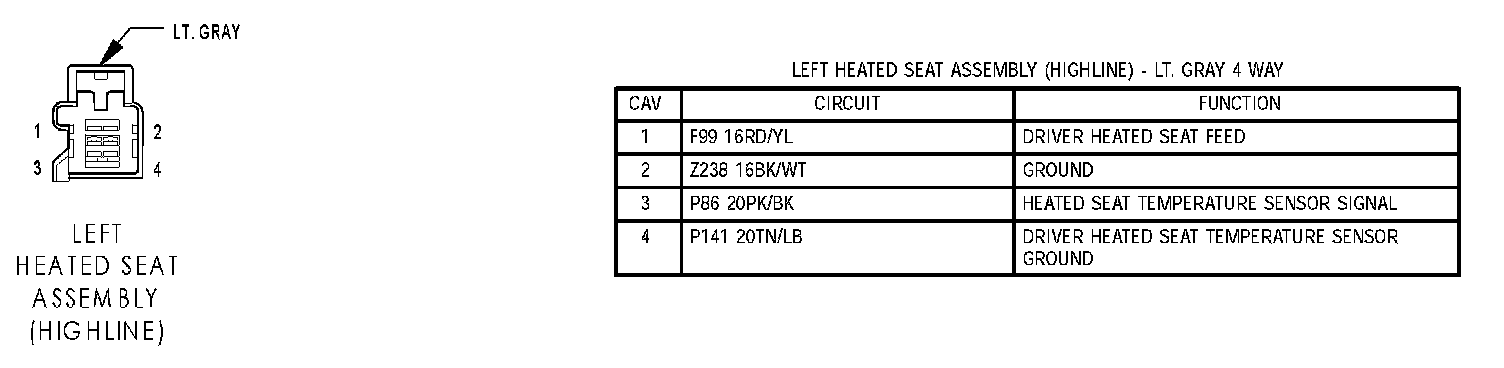

Left Heated Seat Assembly:

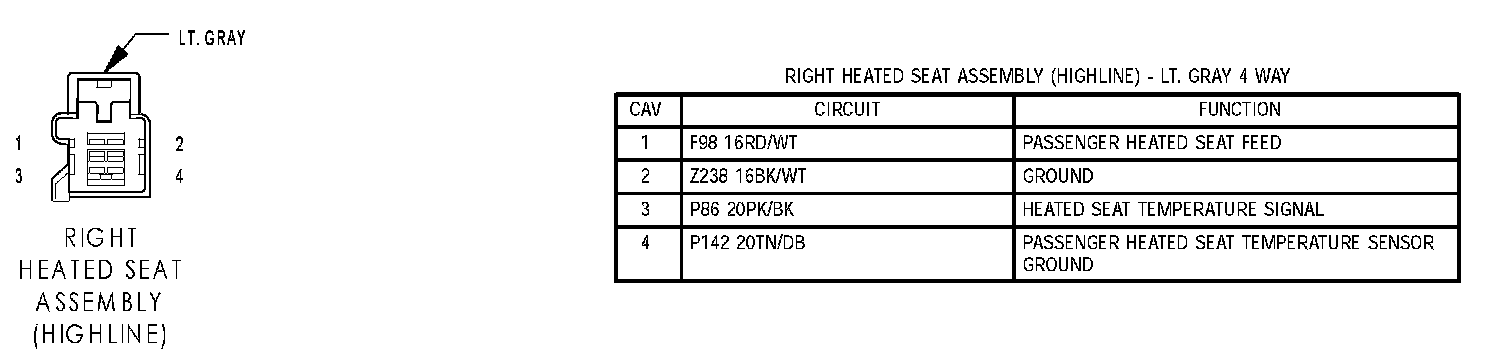

Right Heated Seat Assembly (Highline):
