Manifold Pressure/Vacuum Sensor: Service and Repair

Fig.33 Throttle Body And Sensor Locations - 2.5L:

Fig.34 Throttle Body And Sensor Locations - 4.0L:

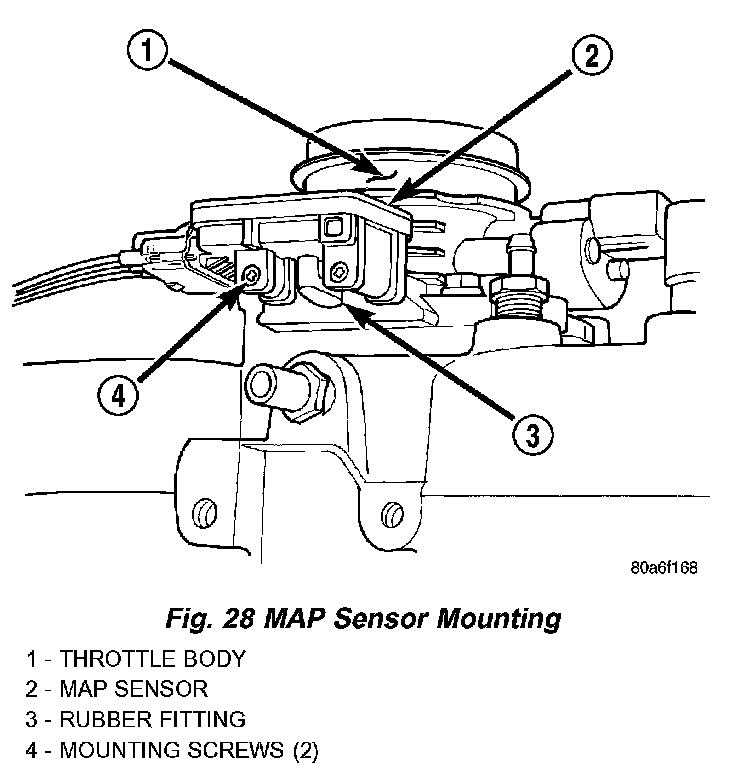

Fig.28 MAP Sensor Mounting:

REMOVAL
The MAP sensor is mounted to the side of the throttle body. An L-shaped rubber fitting is used to connect the MAP sensor to throttle body.
1. Remove air cleaner intake tube at throttle body.
2. Remove two MAP sensor mounting bolts (screws).
3. While removing MAP sensor, slide the rubber L-shaped fitting from throttle body
4. Remove rubber L-shaped fitting from MAP sensor.

INSTALLATION
The MAP sensor is mounted to the side of the throttle body. An L-shaped rubber fitting is used to connect the MAP sensor to throttle body.
1. Install rubber L-shaped fitting to MAP sensor.
2. Position sensor to throttle body while guiding rubber fitting over throttle body vacuum nipple.
3. Install MAP sensor mounting bolts (screws). Tighten screws to 3 Nm (25 in. lbs.) torque.
4. Install air cleaner intake tube.
