Power Steering Pressure Switch: Service and Repair
POWER STEERING PRESSURE SWITCHREMOVAL
This switch is not used with 4.0L six-cylinder engines.

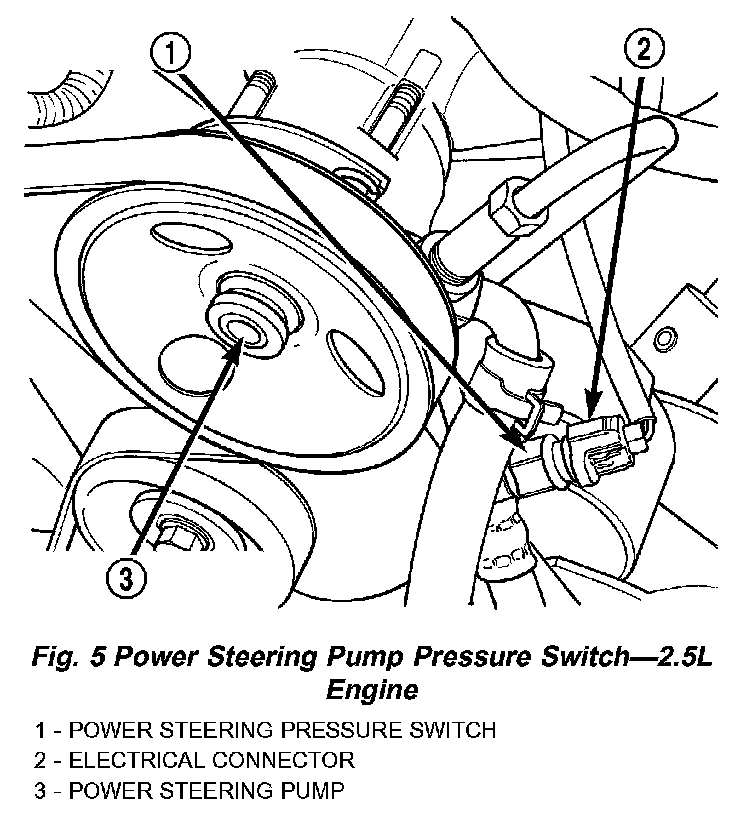

The power steering pressure switch is installed in the power steering high-pressure hose.
1. Disconnect electrical connector from power steering pressure switch.
2. Place a small container or shop towel beneath switch to collect any excess fluid.
3. Remove switch. Use back-up wrench on power steering line to prevent line bending.
INSTALLATION
This switch is not used with 4.0L six-cylinder engines.
1. Install power steering switch into power steering line.
2. Tighten to 14 - 22 Nm (124 - 195 inch lbs.) torque.
3. Connect electrical connector to switch.
4. Check power steering fluid and add as necessary.
5. Start engine and again check power steering fluid. Add fluid if necessary.
