Fuel Injector
Fuel Injector

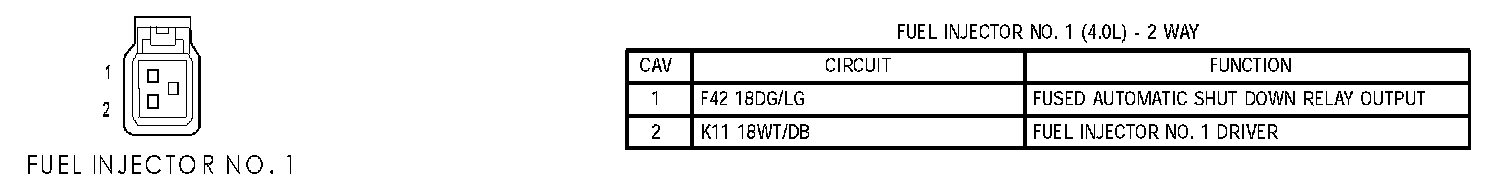

Fuel Injector No.1 (4.0L):
Fuel Injector No.2 (4.0L):

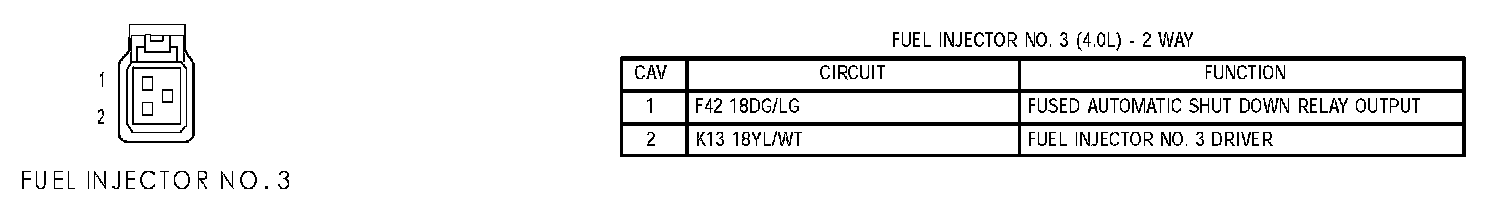

Fuel Injector No.3 (4.0L):

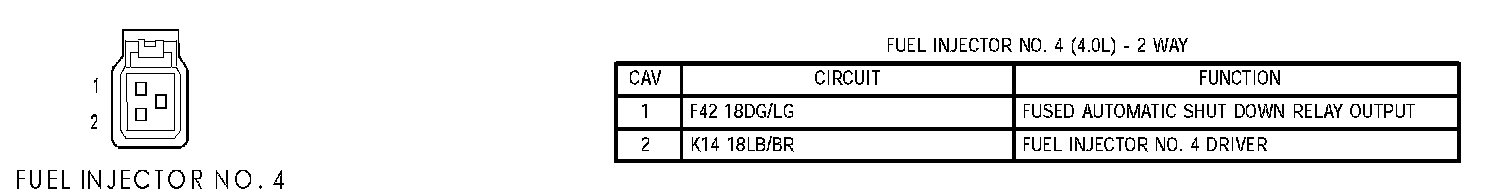

Fuel Injector No.4 (4.0L):

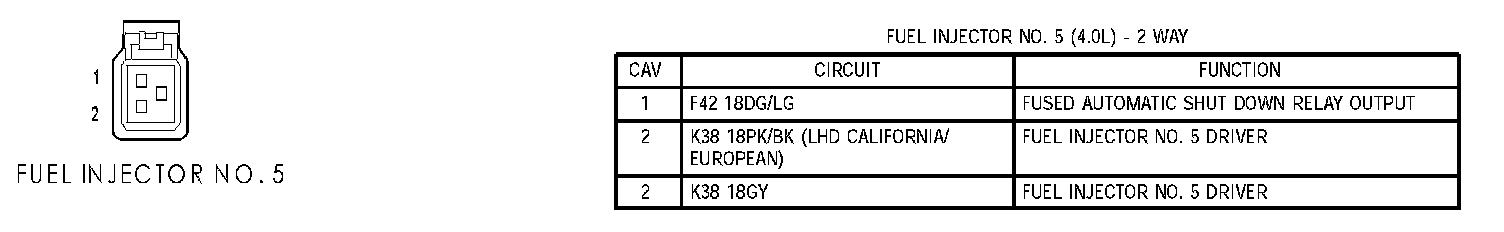

Fuel Injector No.5 (4.0L):

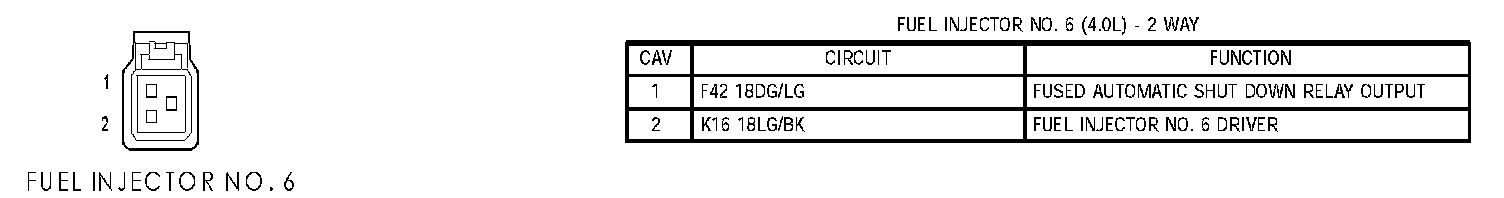

Fuel Injector No.6 (4.0L):
