Oxygen Sensor: Diagrams

Oxygen Sensor 1/1 Upstream:




Oxygen Sensor 1/2 Downstream (4.0L California/European III):

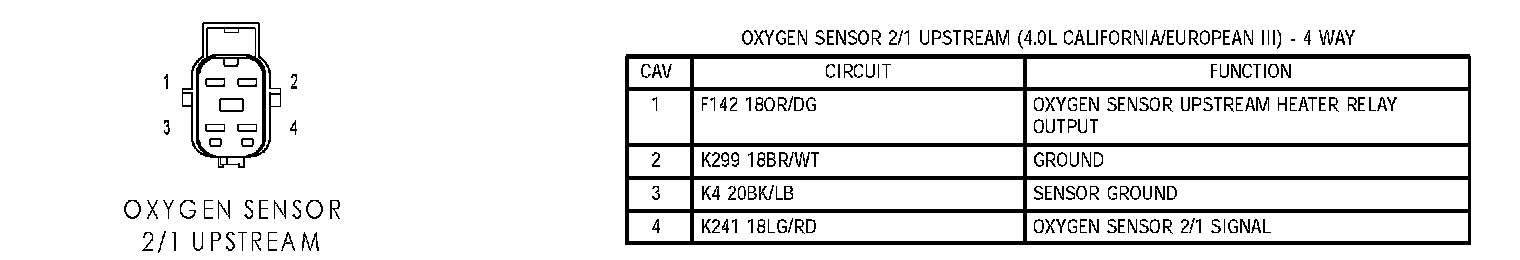

Oxygen Sensor 2/1 Upstream (4.0L California/European III):

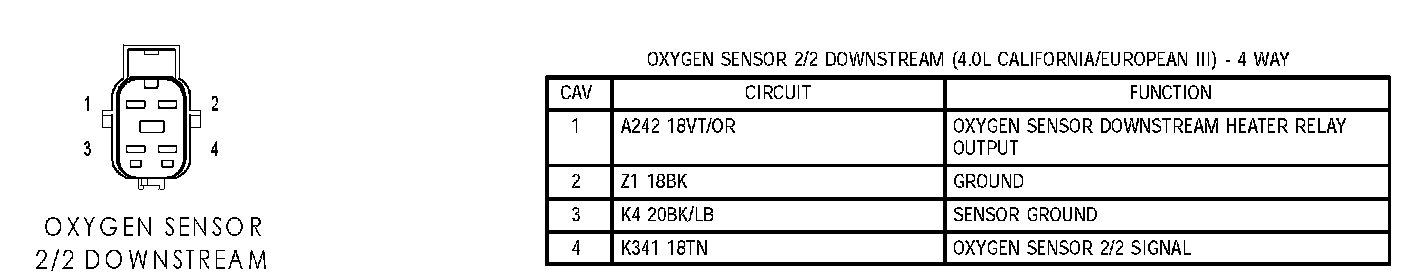

Oxygen Sensor 2/2 Downstream:
