Intake Manifold Torque Specifications

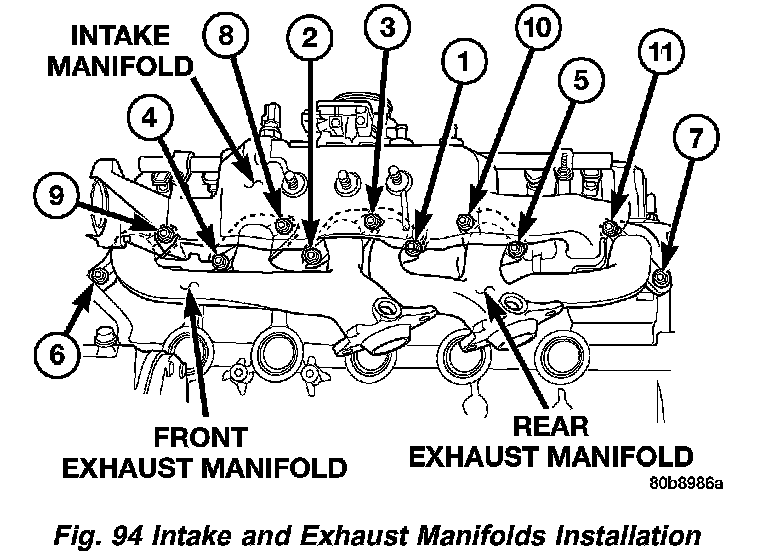

Intake/Exhaust Manifold
Fasteners #1-5 33 Nm (24 ft. lbs.)
Fasteners #6 and 7 14 Nm (126 inch lbs.)
Fasteners #8-11 33 Nm (24 ft. lbs.)
Fuel Rail-Bolts/Stud 12 Nm (108 inch lbs.)
Throttle Body-Bolts 10 Nm (90 inch lbs.)
