Cruise Control Servo Cable: Service and Repair

REMOVAL
1. Disconnect negative battery cable at battery.
2. Remove air box housing from throttle body.

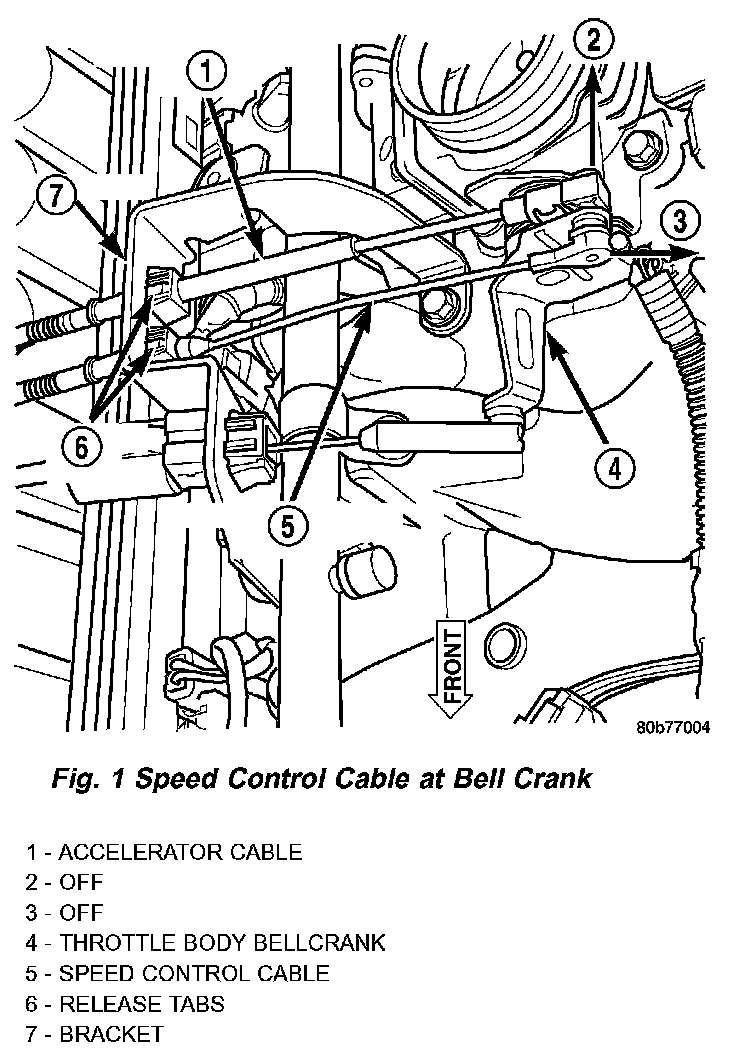

Fig.1 Speed Control Cable At Bell Crank - 4.0L Engine:

3. Using finger pressure only remove speed control cable connector at throttle body bellcrank pin by pushing connector off bellcrank pin towards drivers side of vehicle. DO NOT try to pull connector OFF perpendicular to the bellcrank pin. Connector will be broken.
4. Remove cable from cable guide at top of valve cover.
5. Squeeze 2 release tabs on sides of cable at bracket and push cable out of bracket.
6. Remove servo cable from servo. Refer to Speed Control Servo REMOVAL/INSTALLATION.

INSTALLATION
1. Install end of cable to speed control servo. Refer to Speed Control Servo REMOVAL/INSTALLATION.
2. Install cable into mounting bracket (snaps in).
3. Install speed control cable connector at throttle body bellcrank pin (snaps on).
4. Connect negative battery cable at battery.
5. Before starting engine, operate accelerator pedal to check for any binding.
