Operation CHARM
: Car repair manuals for everyone.
Home
>>
Jeep
>>
2003
>>
Grand Cherokee 2WD L6-4.0L VIN S
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Door Module
Door Module

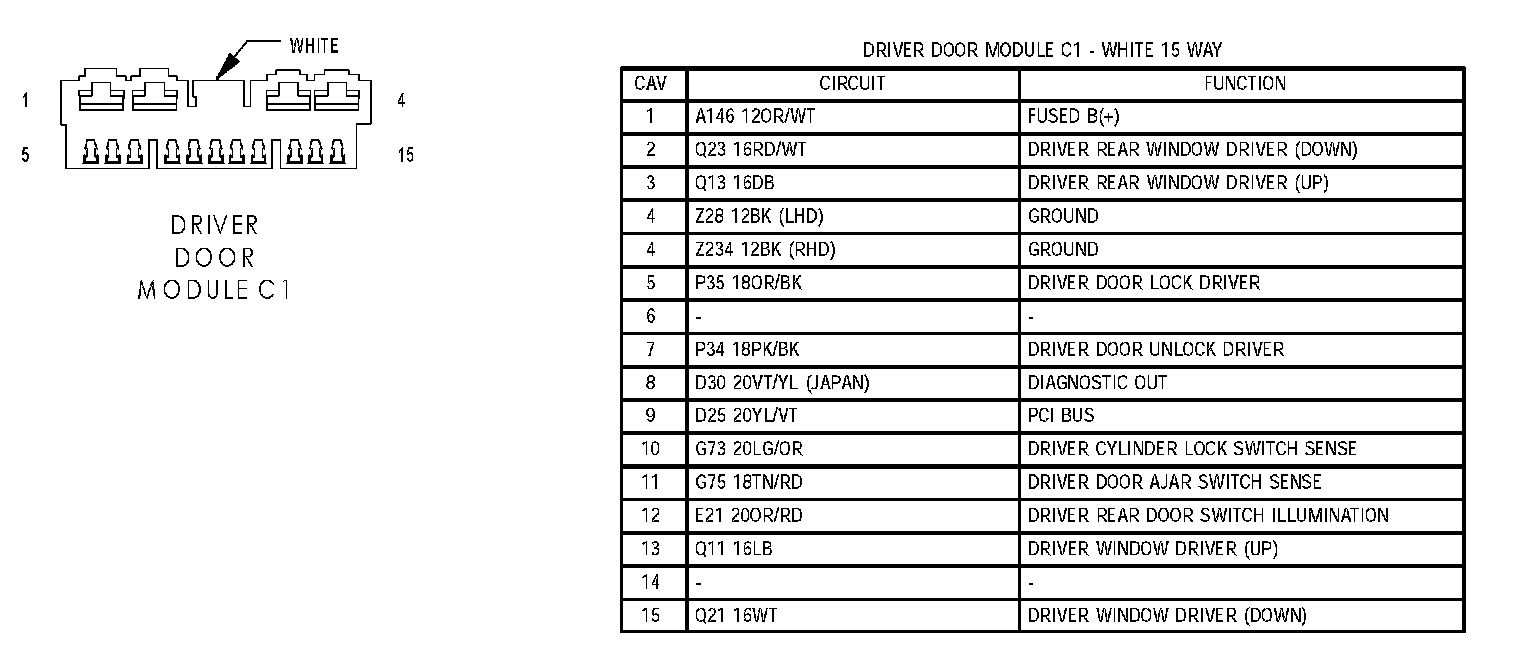

Driver Door Module C1:

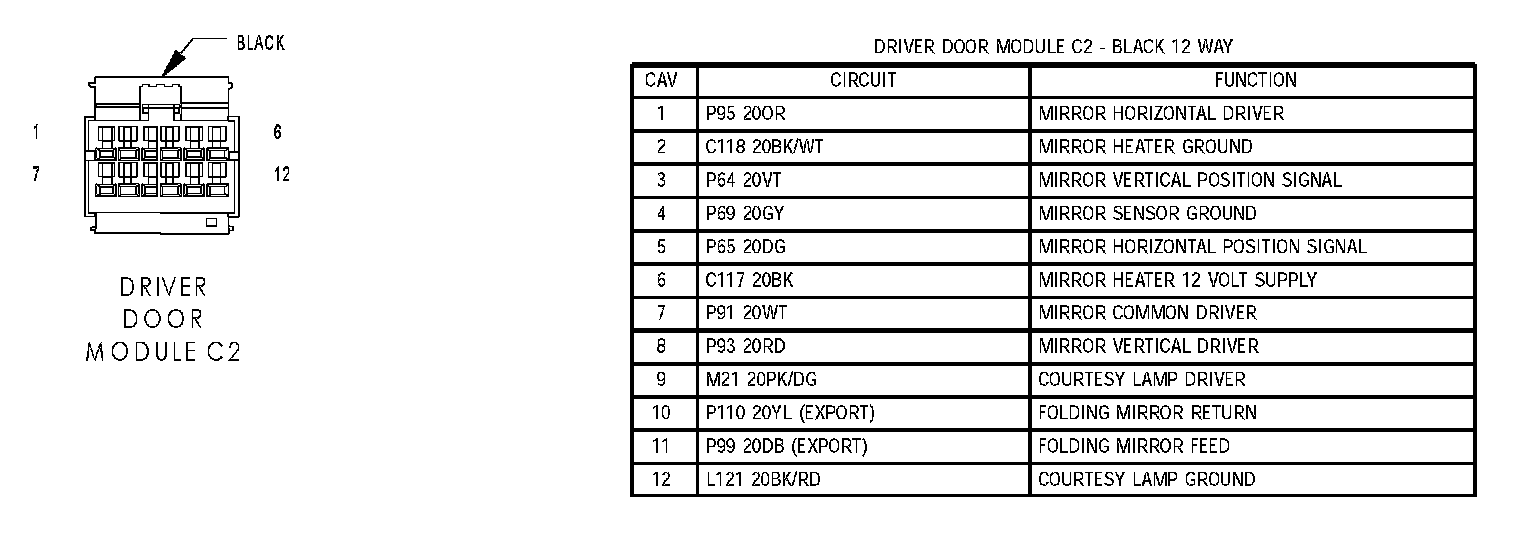

Driver Door Module C2:

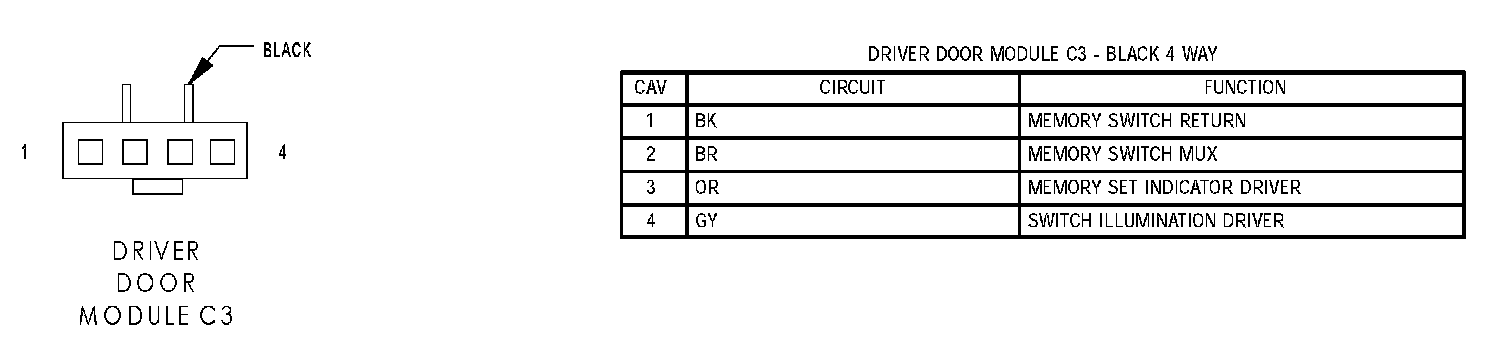

Driver Door Module C3:

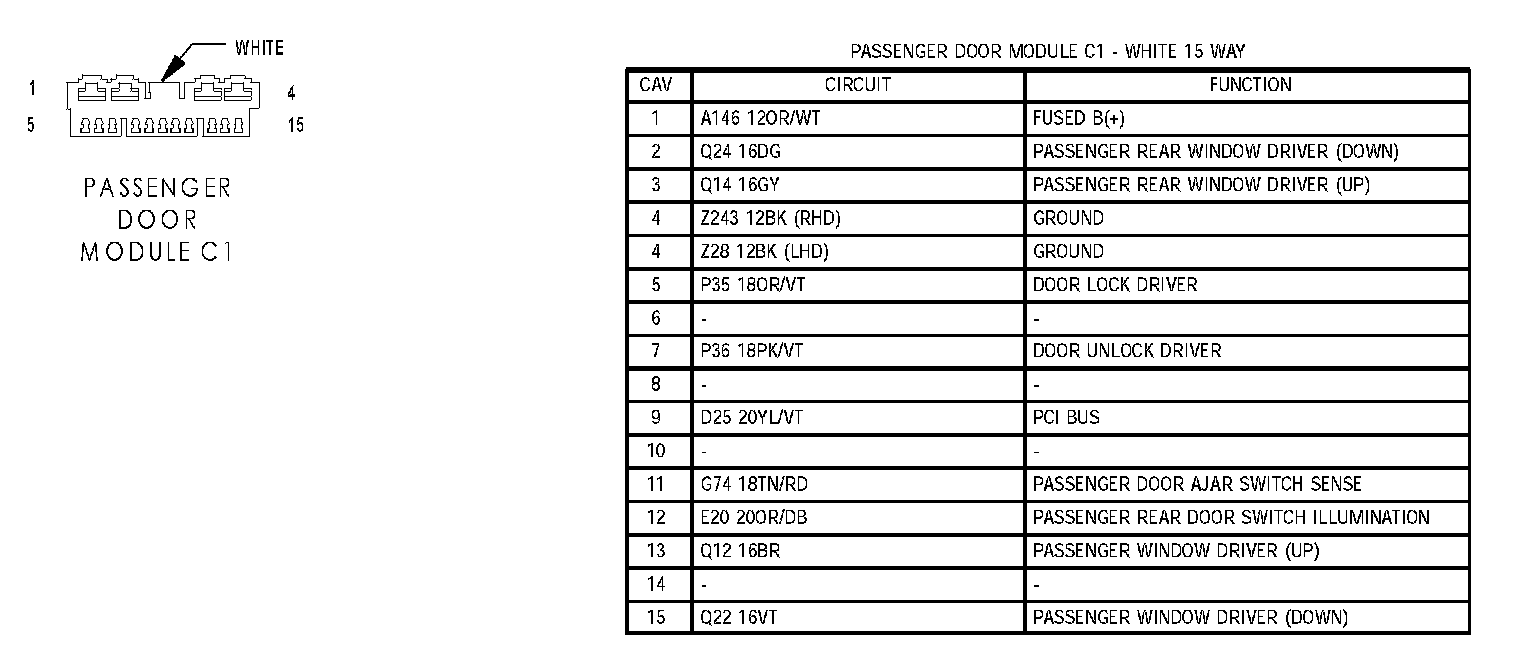

Passenger Door Module C1:

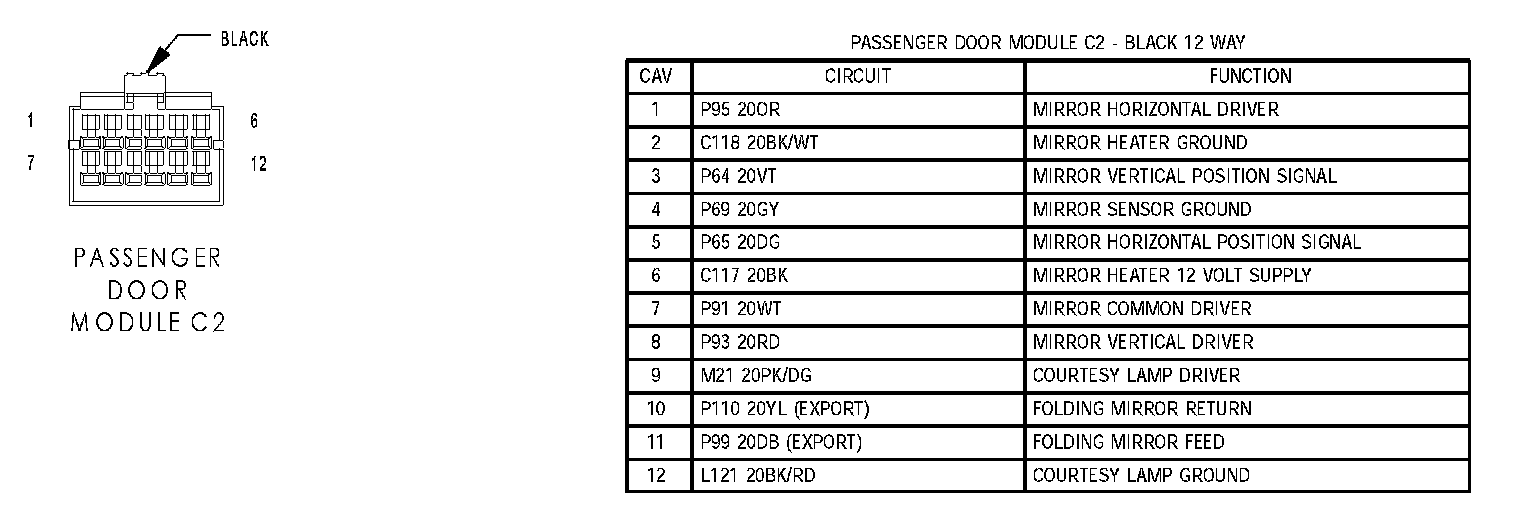

Passenger Door Module C2:
