Operation CHARM
: Car repair manuals for everyone.
Home
>>
Jeep
>>
2003
>>
Grand Cherokee 2WD L6-4.0L VIN S
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Door Switch
Door Switch

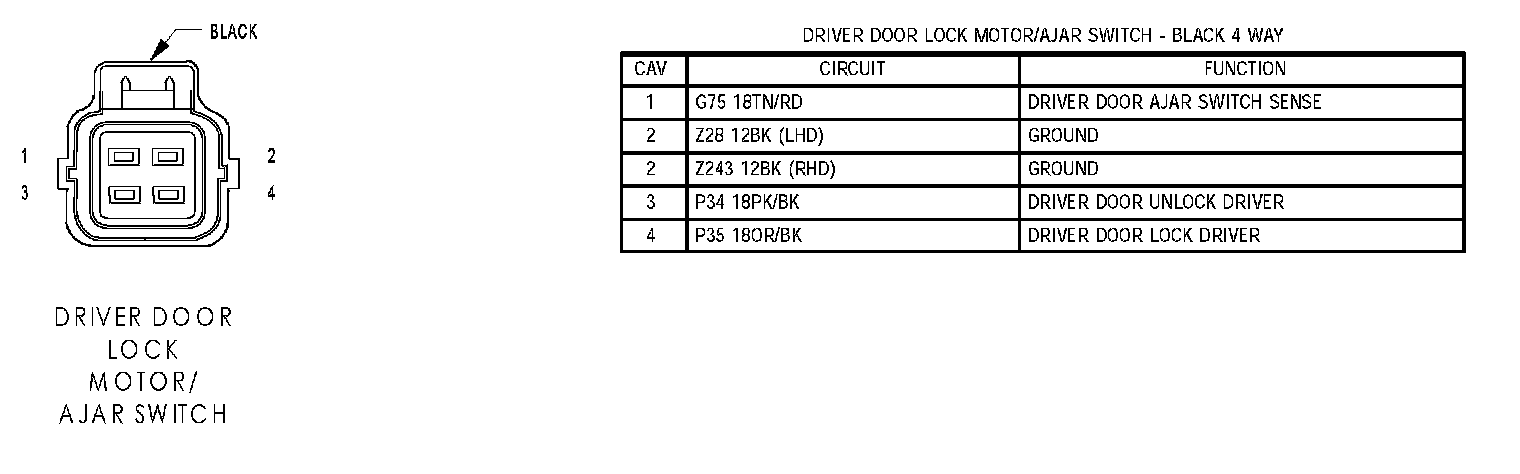

Driver Door Lock Motor/Ajar Switch:

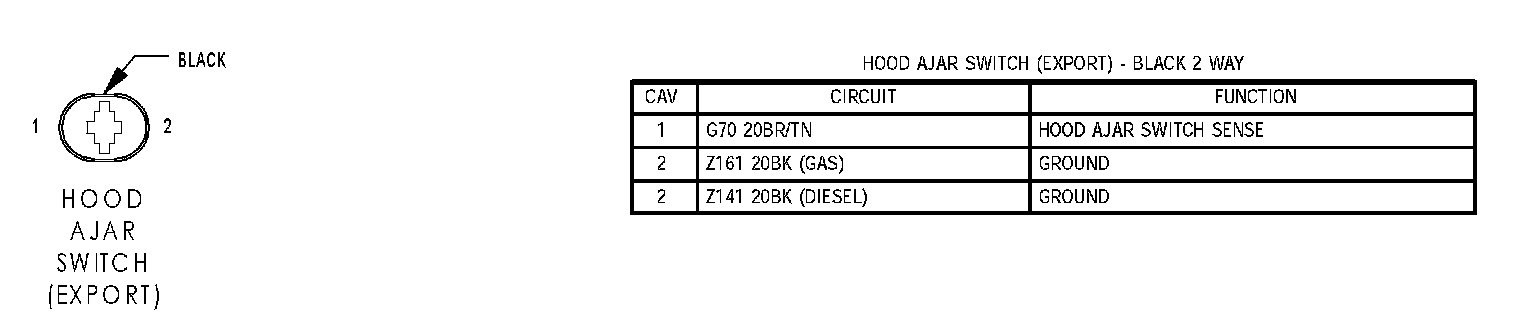

Hood Ajar Switch (Export):

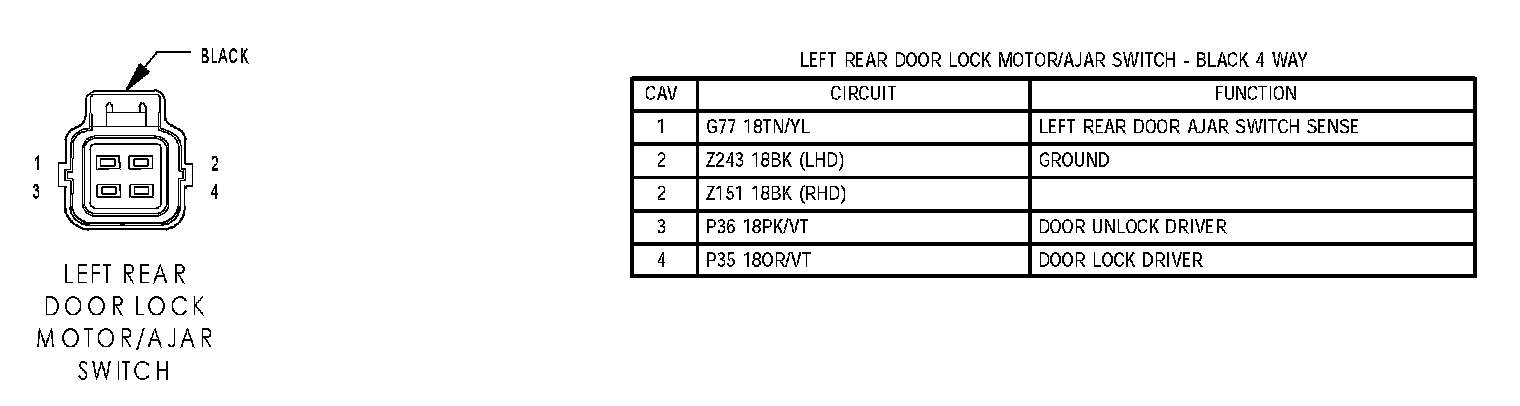

Left Rear Door Lock Motor/Ajar Switch:
Passenger Door Lock Motor/Ajar Switch:

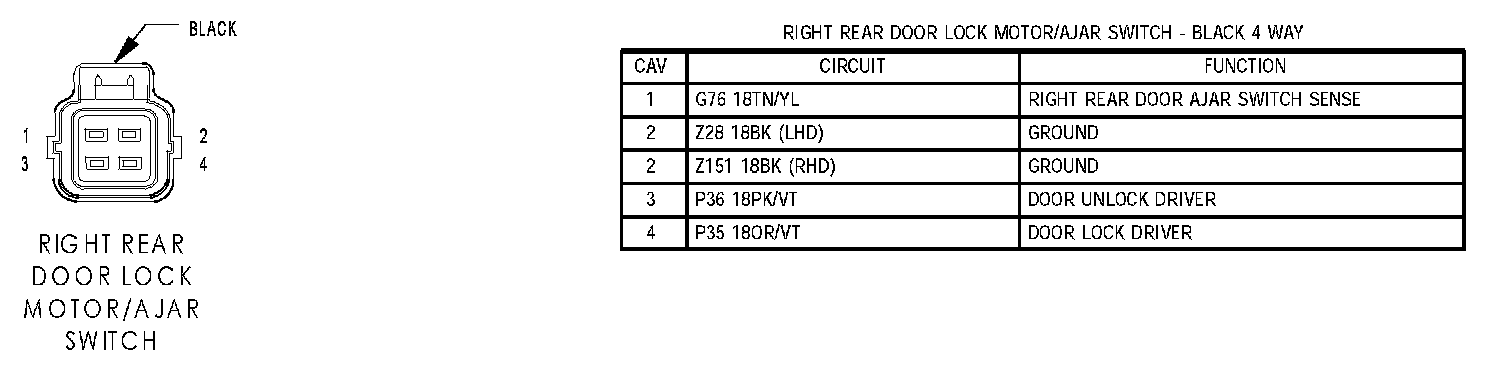

Right Rear Door Lock Motor/Ajar Switch:
