Home >> Jeep >> 2003 >> Grand Cherokee 2WD L6-4.0L VIN S >> Repair and Diagnosis >> Locations >> Connector Locations >> Figure 42

Figure 42

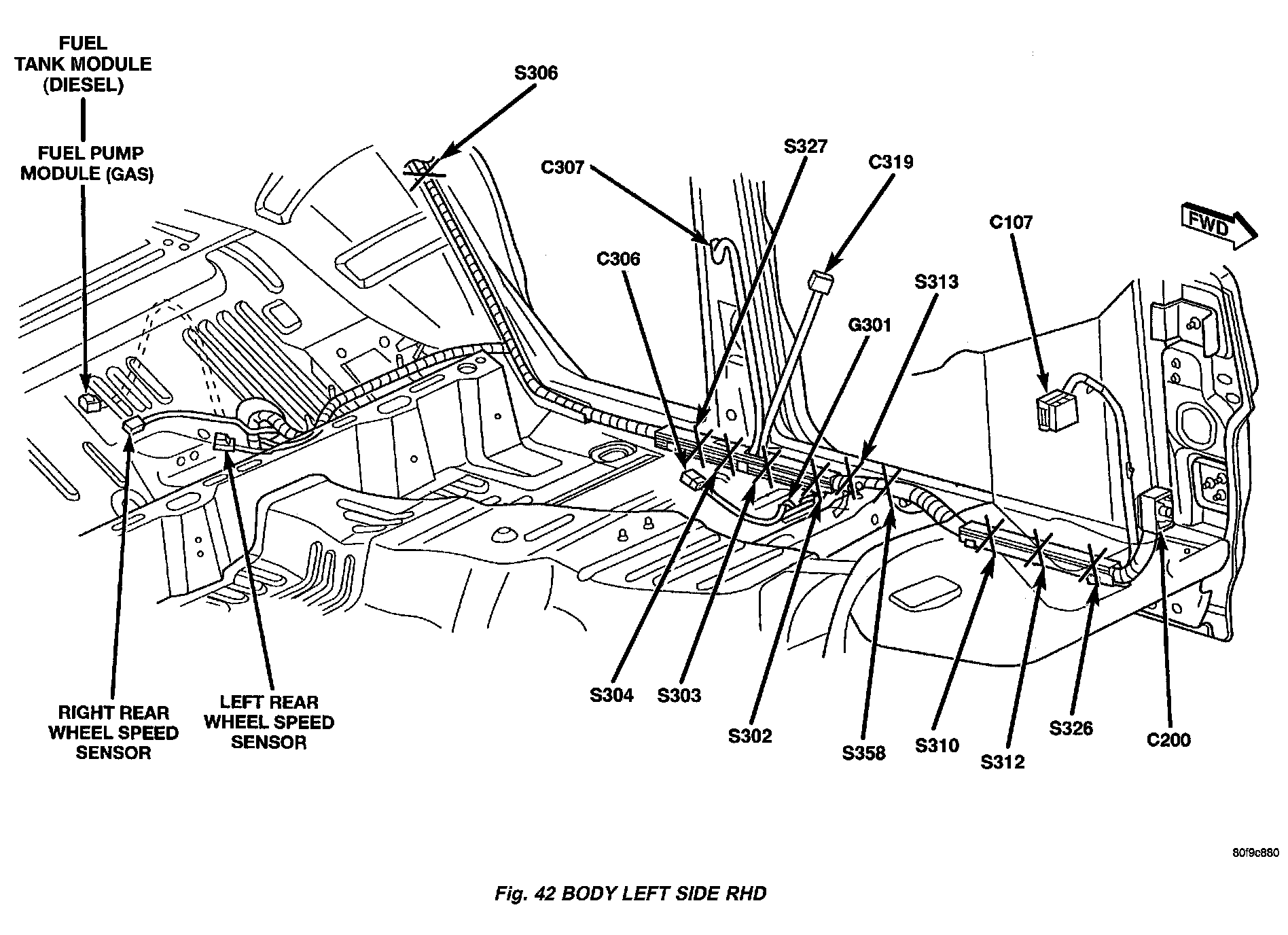

Fig. 42 Body Left Side RHD:
