Manifold Pressure/Vacuum Sensor: Service and Repair

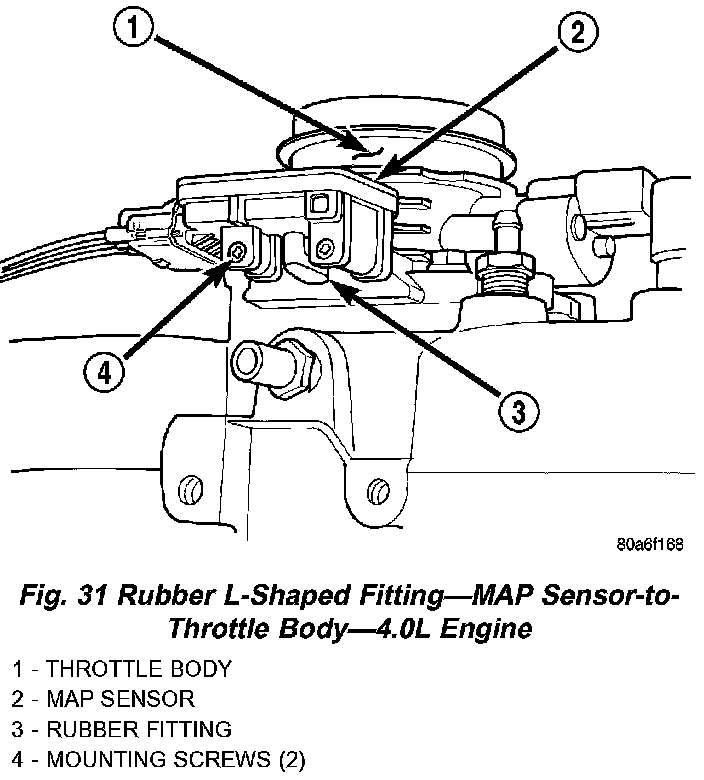

Fig. 31 Rubber L-Shaped Fitting - MAP Sensor-to-Throttle Body - 4.0L Engine:

Fig. 40 TPS Electrical Connector - 4.0L Engine:

REMOVAL
The MAP sensor is mounted to the side of the throttle body. An L-shaped rubber fitting is used to connect the MAP sensor to throttle body .

1. Remove air cleaner duct and air resonator box at throttle body.
2. Remove two MAP sensor mounting bolts (screws).
3. While removing MAP sensor, slide the rubber L-shaped fitting from the throttle body.
4. Remove rubber L-shaped fitting from MAP sensor.

INSTALLATION
The MAP sensor is mounted to the side of the throttle body. An L-shaped rubber fitting is used to connect the MAP sensor to throttle body.
1. Install rubber L-shaped fitting to MAP sensor.
2. Position sensor to throttle body while guiding rubber fitting over throttle body vacuum nipple.
3. Install MAP sensor mounting bolts (screws). Tighten screws to 3 Nm (25 in. lbs.) torque.
4. Install air cleaner duct/air box.
