Trunk / Liftgate Switch
Trunk / Liftgate Switch

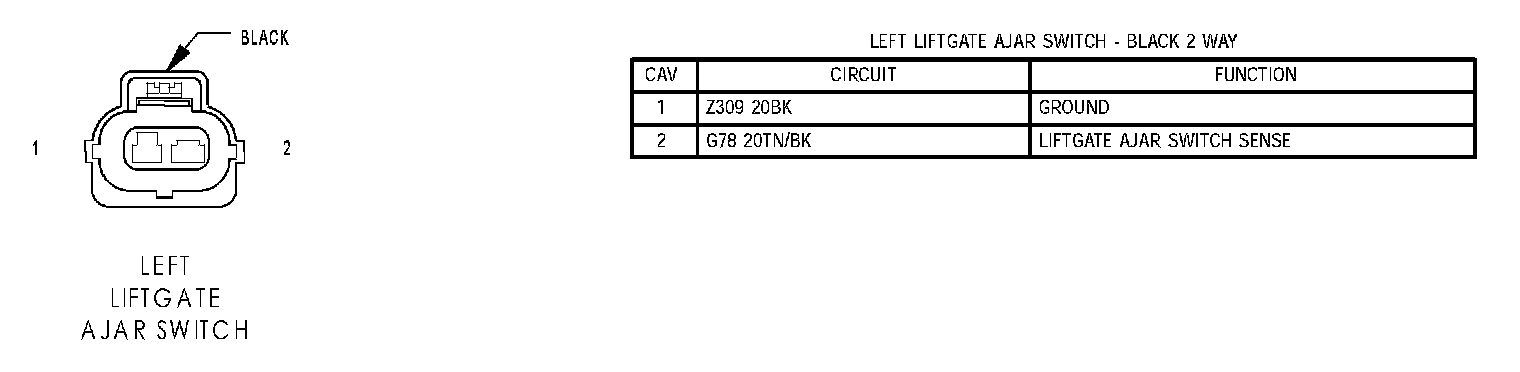

Left Liftgate Ajar Switch:

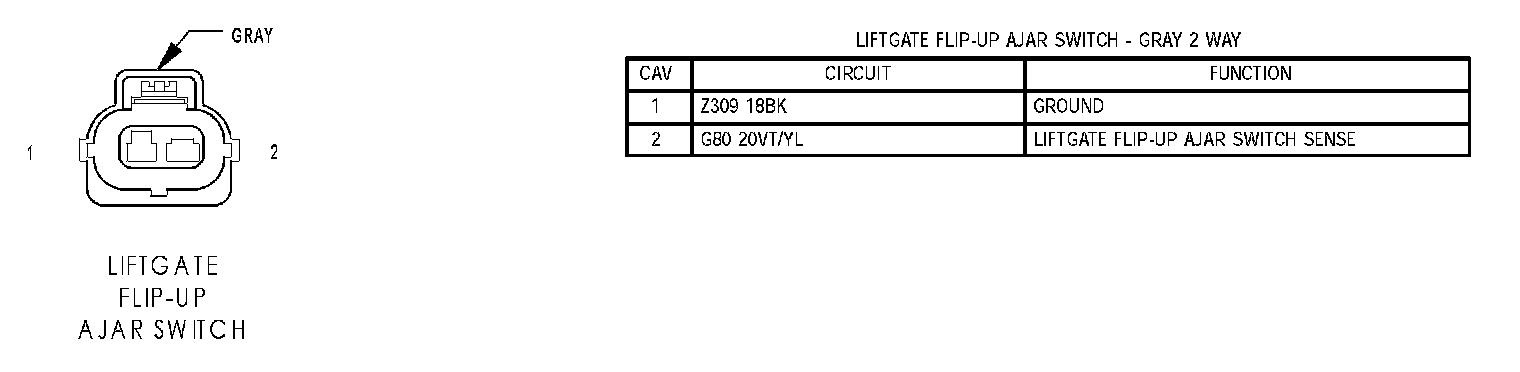

Liftgate Flip-Up Ajar Switch:

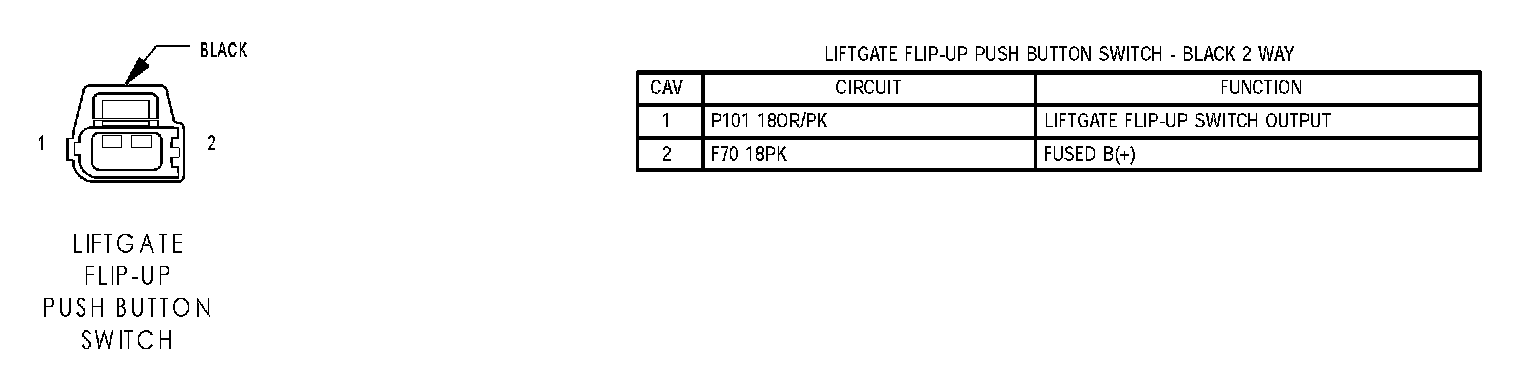

Liftgate Flip-Up Push Button Switch:
Right Liftgate Ajar Switch:
